Introduction
The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.
The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability
can offer a more solid RF performance, and this is in addition to the receivers with anti-interfere performance in
the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes,
where the RF protocol is smart matched during the binding process on the radio. With the Black-Box function,
some basic flight data (like Power & Signal related) can be well preserved.
The Archer Plus SR8 are gyro-stabilized receivers with a built-in 3-axis gyroscope and 3-axis accelerometer and
feature multiple flight modes (Auto-level, Stabilization, Knife-Edge, etc.) and configuration methods.supports
full-range signal strength with dual detachable antennas and guarantees optimal antenna reception and
range.The Archer Plus SR8 can be used as a Primary receiver in a redundant solution by wiring the SBUS In port
and connecting to any other FrSky receiver equipped with an SBUS Out port. With the FBUS protocol, the Archer
Plus series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (XACT
servos, ADV Sensors, etc.) as well as simplifying the builds setup.
(*Some features require the support of ACCESS and ETHOS.)

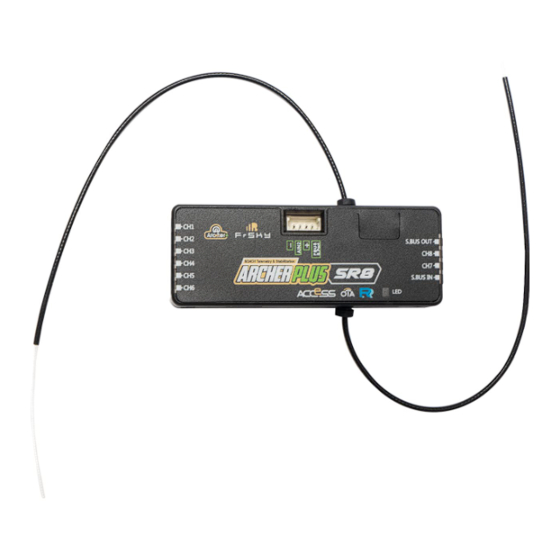

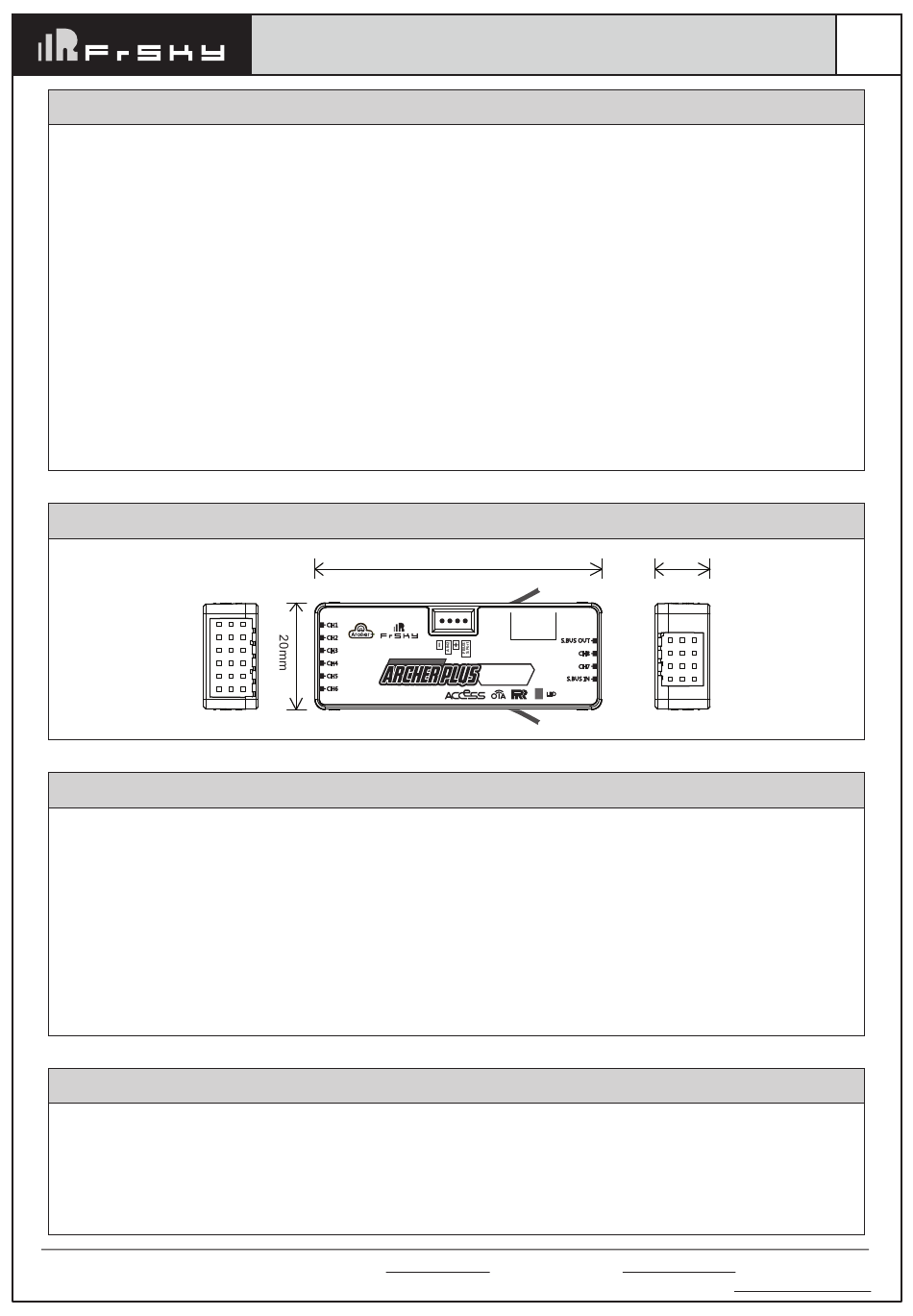

Overview
Specifications
● Dimension: 54*20*10mm (L*W*H)
● Weight: 9.8g
● Number of Channels: 8/24 channels
8 High-precision PWM & 16 SBUS channels Mode
8 High-precision PWM & 24 SBUS channels Mode
● Operating Voltage Range: 3.5 -10V
● Operating Current: <65mA@5V
● Operating Range: >2km (Full range) (*Range may vary based on local conditions.)
● Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
● Antenna connector: IPEX4
● Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
Features
● Enhanced Anti RF-Interference capability with more solid RF performance
● Smart-matched ACCESS & ACCST D16 modes
● Supports basic Black-Box function
● Built-in 3-axis gyroscope and 3-axis accelerometer sensor
● Multiple flight modes and configuration tools (ETHOS, LUA scripts, etc.)
● SBUS Out port (Supports 16CH / 24CH mode)
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky ARCHER PLUS SR8 Receiver
