Introduction
The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.
The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability
can offer a more solid RF performance, and this is in addition to existing anti-interfere performance in the spark
ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF
protocol is smartly matched during the binding process on the radio. In ACCESS mode, these receivers not only
feature OTA wireless firmware upgrades, increased range, and telemetry performance, they support even more
functions like configurable telemetry power (RS), S.Port / F.Port / FBUS switching, and VFR indicators.
The RS supports full-range signal control with an equivalent telemetry range. Dual detachable/replaceable
antennas assure optimal antenna reception and maximum range with their lightweight design thanks to the
extremely tiny form factor. Features an inverted S.Port that allows for easily connecting flight controllers, in
addition to all this, the RS can also be used as a redundancy receiver along with any other FrSky ACCESS
capable receiver equipped with an SBUS port. The best available signal will be used to ensure superior
connectivity.

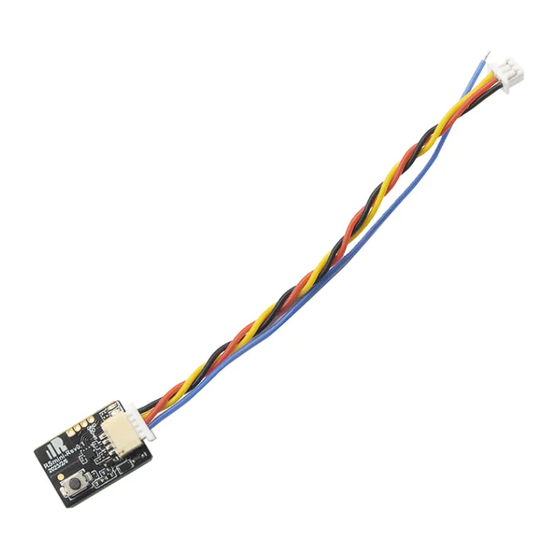

The RS Mini version provides the optimal model-building solution that uses an onboard PCB-type antenna to
reduce the building hassle of using the traditional ones and removes the soldering problems by adding a wire
connector to lead the external device more easily.

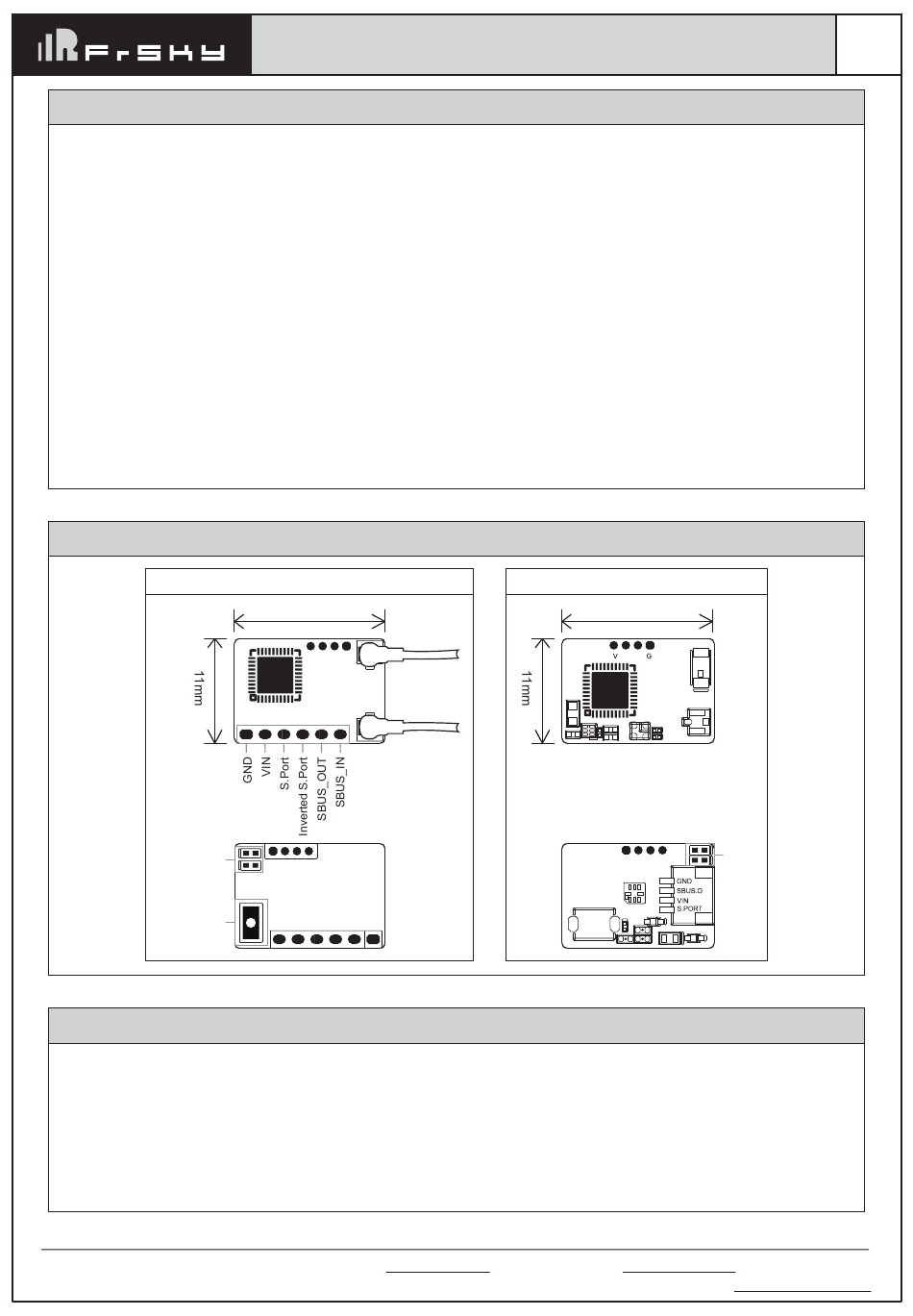

Overview
LED
BUTTON
Specifications
● Dimension: 16*11mm (L*W)
● Weight: 1.3g
● Operating Voltage: 3.5-10V
● Operating Current: 12mA@5V (AP RS Mini) / 60mA@5V (AP RS)
● Antenna Connector: IPEX4 (AP RS) / Onboard PCB-type antenna (AP RS Mini)
● Control Range: Full range* with telemetry (AP RS) / ≥600m (AP RS Mini)
(* Full Range: ≥2km, the control range may vary based on local conditions.)
● Compatibility: All FrSky ACCESS/ACCST D16 transmitters.
