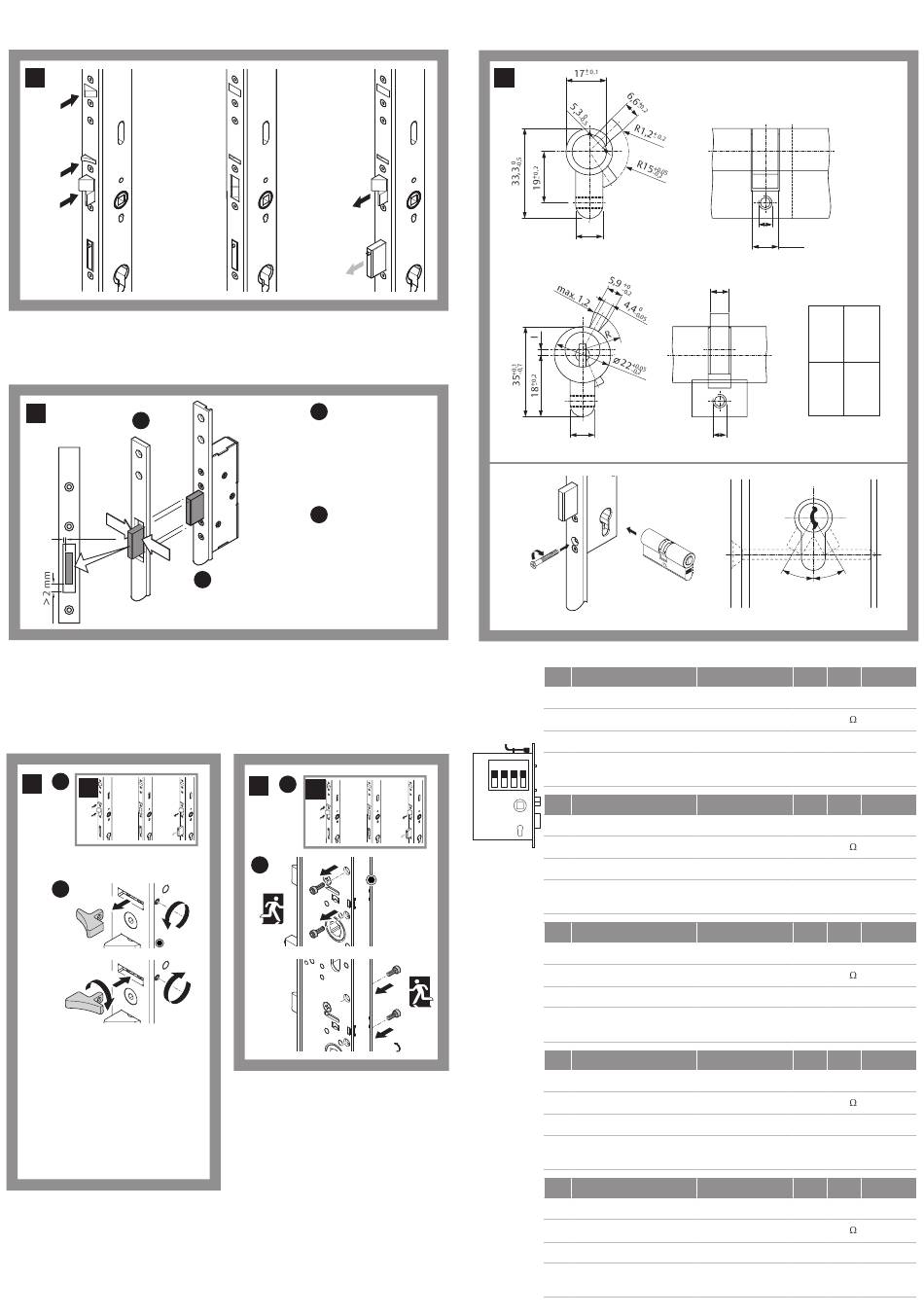

Assa Abloy OneSystem 809N Quick Manual page 2

Electric security lock, electric multi-point lock

Advertisement

Selbstverriegelung / Self-Locking /
Verrouillage automatique /
Autobloccaggio / Zelfvergrendeling
1.
1
Riegel frei von Querscherbelastungen / No transverse shear stress on the bolt /
Absence de contraintes transversales sur le pêne dormant /
Chiavistello montato privo di sollecitazioni traversali /
Nachtschoot vrij van dwarsbelasting
2
1
F
= 0
Q
N
> 2 mm
F
= 0
Q
N
Steuerfalle drehen/
Rotating the control latch /
Inverser la position du pêne pilote /
Inversione del saliscendi /
De stuurschoot draaien
1
4
1.
2.
3.
1
DIN rechts / DIN right hand /
DIN droite / DIN dx / DIN rechts
2
1.
2.
3x
1,5 mm
4.
3.
3.
0,5 Nm
DIN links / DIN left hand /
DIN gauche / DIN sx / DIN links
Belassen Sie den Innensechskant im
Schraubenkopf.
Leave the Allen wrench in the bolt head.
Laissez la clé Allen dans la tête de la vis.
Lasciare il cacciavite a brugola nella
testa della vite.
Laat de inbussleutel in de schroefkop
zitten.
2.
3.
Schließblech
1
Striking plate
Têtière (sur dormant)
Frontale
Sluitplaat
Stulp
2
Face plate
Têtière de serrure
Testiera
Stulp
2
Panikseite einstellen (B-Funktion) /
Changing the panic side (B-function) /
Modification du côté anti-panique (Fonction B) /
De paniekzijde wisselen (Funzione B) /
Sostituzione del lato antipanico (B-functie)
5
1
1.
2.
1
2
1.
3.
Profilzylinder montieren / Installing the profile cylinders /
Montage du cylindre profilé /
Montaggio del cilindro profilato / Profielcilinder monteren
3
DIN 18252
SN EN 1303
2.
DIP Funktion
1
2
3
4
4 3 2 1
Off
On
3.
DIP Function
1
2
3
2,5 mm
4
DIP Fonction
1
2.
2
3
4.
4
2,5 Nm
DIP Funktion
1
2
3
4
DIP Funktion
1
2
3
4
10
+
0,1
8,5
+0,2
–0,2
10
M5
+0,05
–0,1
1.
1
Hi-O Technology™
Hi-O-Gruppe
Ja
Abschlusswiderstand
Ja
Summer (Buzzer)
Arbeitsstrom
Ruhestrom
Hi-O Technology™
Hi-O-group
Yes
Terminating resistor
Yes
Buzzer
Fail-locked
Fail-unlocked
Hi-O Technology™
Groupe Hi-O
Oui
Résistance terminale
Oui
Buzzer
Courant de travail
Courant de repos
Hi-O Technology™
Gruppo Hi-O
Si
Resistenza terminale
Si
Cicalino (segnale acustico)
Circuito normalmente aperto
Circuito normalmente chiuso
Hi-O Technology™
Hi-O-groep
Ja
Afsluitweerstand
Ja
Zoemer (Buzzer)
Werkstroom
Ruststroom
M5
9,5
0
–0,5
I
R
0
-0,25
1,2
15,55
1,5
15,30
2,0
15,00
max.
max.
30°
30°
Off
On
Standard
0
1
Off
120
On
aktiv
Off
aktiv
Off
aktiv
Off
On
Standard
0
1
Off
120
On
enabled
Off
enabled
Off
enabled
Off
On
Standard
0
1
Off
120
On
aktif
Off
aktif
Off
aktif
Off
On
Standard
0
1
Off
120
On
attivo
Off
attivo
Off
attivo
Off
On
Standard
0
1
Off
120
On
actief
Off
actief
Off
actief
