TECHNICAL SPECIFICATIONS
Power Supply:
120V ~ 50-60Hz
Power consumption:
75 W Max.
Dimensions (LxWxH):
150 x 180 x 200mm / 6 x 7 x 7.9 in.
Weight (unpacked):
0.86 kg / 1.9 lb
Fitting lamp:
120V 75W PAR30 or JDR Halogen lamp, Base: E27
Max. ambient temp. Ta:
25°C / 77°F
Max. housing temp. Ts:
100°C / 212°F
Min. distance:
0.5 m / 1.6 ft.
DecoPAR30 Lamp Types
Manufacturer
Watts
Volts
Lamp Code
50PAR30/HIR/SP9°
50
50PAR30/HIR/FL25°
50
50PAR30/HIR/FL35°
50
60PAR30/H/SP10°
60
60PAR30/H/FL25°
60
60PAR30/H/FL35°
60
75PAR30/H/SP10°
75
75PAR30/H/FL25°
75
75PAR30/H/FL35°
75
JDR120V75WN/E26/FG(SP)
75
JDR120V75WM/E26/FG(MFL)
75
JDR120V75WW/E26/FG(FL)
75
Candlepower
Color
Rated Life
(Candela)
Temp (°K)
(Hours)
120
13,000
2,810
3,000
120
2,700
2,810
3,000
120
1,500
2,810
3,000
120
10,000
2,800
3,000
120
2,400
2,800
3,000
120
1,200
2,800
3,000
120
13,000
2,830
3,000
120
3,100
2,830
3,000
120
2,000
2,830
3,000
120
3,000
2,000
120
3,000
2,000
120
3,000
2,000
Field Angle
(Degrees°)
9°
25°
35°
10°
25°
35°
10°
25°
35°
12°
23°
37°

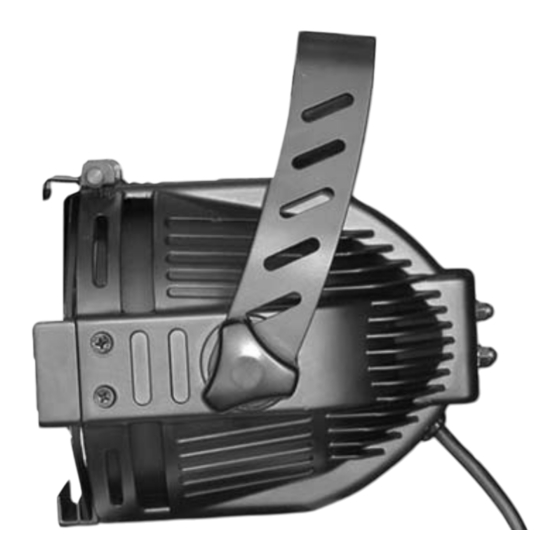

Model No: DPR30
PAR 30 flood fixture with E27 base.
Advertisement
Related Manuals for Mark DecoPAR DPR30
Summary of Contents for Mark DecoPAR DPR30
- Page 1 TECHNICAL SPECIFICATIONS Power Supply: 120V ~ 50-60Hz Power consumption: 75 W Max. Dimensions (LxWxH): 150 x 180 x 200mm / 6 x 7 x 7.9 in. Weight (unpacked): 0.86 kg / 1.9 lb Fitting lamp: 120V 75W PAR30 or JDR Halogen lamp, Base: E27 Max.
- Page 2 Disconnect the unit from power before installing the lamp. WARNING! Let lamp cool before changing. Remove the color frame from its holder (Figure 1). Note: To avoid premature lamp failure, do not touch the lamp glass with your fingers. If you touch the lamp during installation, clean it carefully with 90% or better isopropyl alcohol and a clean lint- free cloth before operation.
