Mark DecoPAR DPR36 Quick Start Manual

TECHNICAL SPECIFICATIONS
Power Supply:
Power consumption:
Dimensions (LxWxH):
Weight (unpacked):
Fitting lamp:
Max. ambient temp. Ta:
Max. housing temp. Ts:
Min. distance:
DecoPAR36 6 Volt Lamp Types
Manufacturer
Watts Volts
Lamp Code
35AR111/SSP4/6V 35 6
4515 30 6.4
DecoPAR36 12 Volt Lamp Types
Manufacturer
Watts Volts
Lamp Code
35AR111/SSP4 35 12
35AR111/SP8 35 12
35AR111/FL25 35 12
50AR111/SSP4 50 12
50AR111/SP8 50 12
50AR111/FL25 50 12
75AR111/SP4 75 12
75AR111/FL25 75 12
75AR111/WFL45 75 12
50PAR36/H/SP5 50 12
50PAR36/H/SP8 50 12
50PAR36/H/FL30 50 12
It is suggested that a glass shield be used with AR111 type lamps.
120V ~ 50-60Hz
36 W
150 x 180 x 200mm / 6 x 7 x 7.9 in.
1.4 kg / 3.1 lb.
6V or 12V 30W PAR36 or AR111 Halogen lamp
25°C / 77°F
90°C / 194°F
0.5 m / 1.6 ft.
Candlepower Color Rated Life
(Candela) Temp (°K) (Hours)
30,000 3,000 3,000
55,000 3,000 100
Candlepower Color Rated Life
(Candela) Temp (°K) (Hours)
40,000 3,000 3,000
14,000 3,000 3,000
2,500 3,000 3,000
45,000 3,000 3,000
20,000 3,000 3,000
4,000 3,000 3,000
30,000 3,000 3,000
5,300 3,000 3,000
2,000 3,000 3,000
35,000 4,000 3,050
30,000 4,000 3,050
1,300 4,000 3,050
Field Angle
(Degrees°)

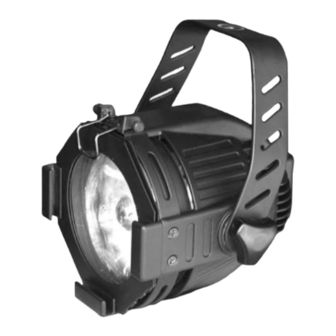

PAR 36 fixture with integral 6 or 12 Volt magnetic
4°
5°
Field Angle
(Degrees°)
4°
8°
25°
4°
8°
25°
4°
25°
45°
5°
8°
30°
Model No: DPR36 and DPR3612
transformer for pin spot or AR111 lamps.
