Summary of Contents for Lenze E84AYCER

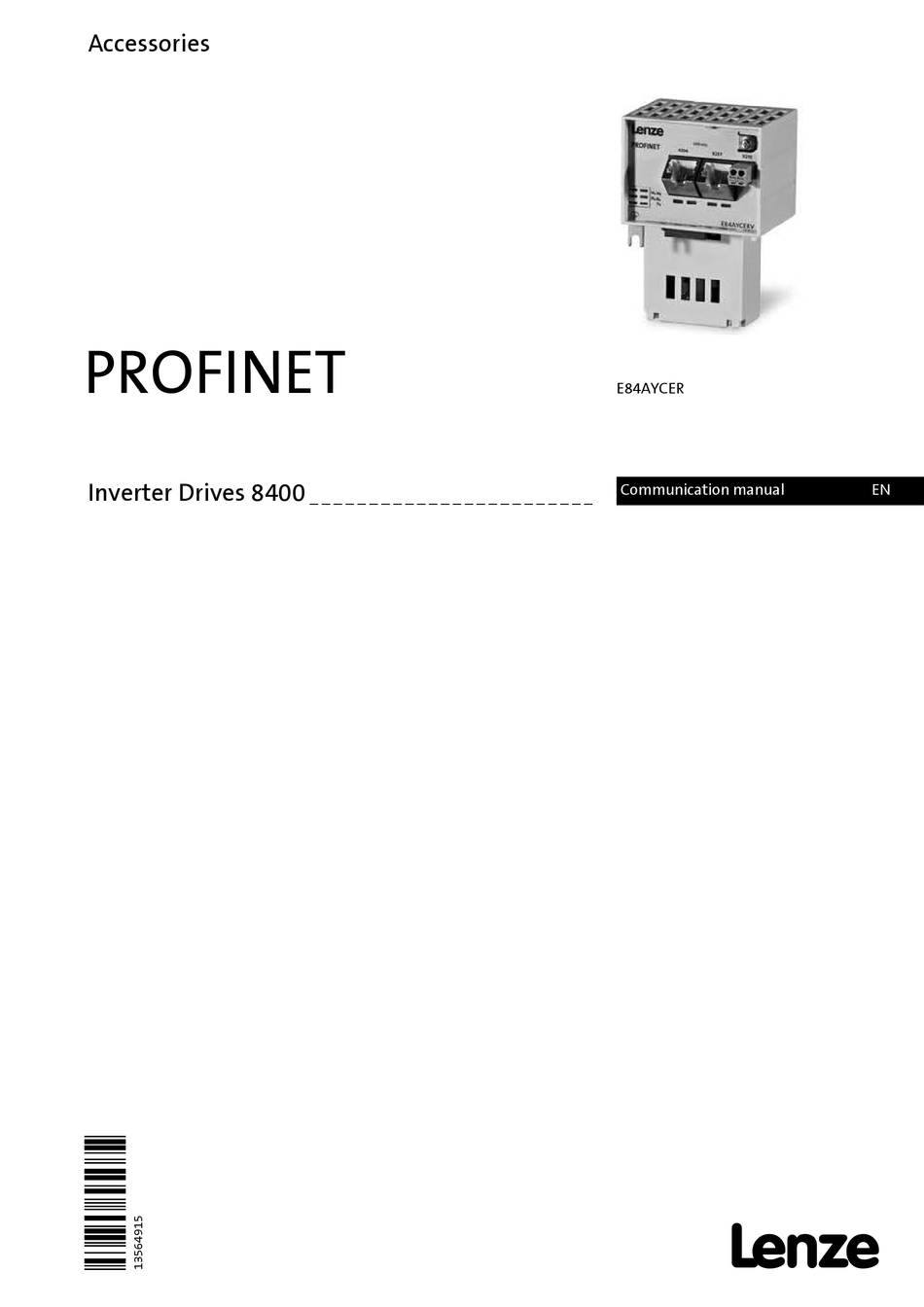

  • Page 1 Accessories PROFINET E84AYCER Inverter Drives 8400 Communication manual _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...

  • Page 2: Table Of Contents

    External voltage supply ..........Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 3 Setting via codes in the »Engineer« ........Establishing an online connection via PROFINET with the Lenze »Engineer« ..
  • Page 4 Index ................Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 5: About This Documentation

    • Safety instructions that must be observed • The most important technical data of the communication module • Information about the versions of the Lenze standard devices to be used • Notes on troubleshooting and fault elimination The theoretical context is only explained as far as it is required for understanding the function of the communication module.
  • Page 6  Tip! Information and software updates for Lenze products can be found in the download area www.Lenze.com Information regarding the validity The information given in this documentation is valid for the following devices:...

  • Page 7: Document History

    _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Document history Version Description 02/2019 TD23 General revision 11/2010 TD17 • General revision • Update for SW version 02.00 04/2010 TD17 First edition Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 8: Conventions Used

    ( 8) Optically highlighted reference to another page. Can be activated with a mouse-click in this documentati- Step-by-step instructions Step-by-step instructions are indicated by a picto-  graph. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 9: Terminology Used

    _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Terminology used Term Meaning Inverter Lenze inverters of the "Inverter Drives 8400" product series for which the com- munication module can be used. Standard device Application as directed ( 12) »Engineer«...

  • Page 10: Notes Used

    Application notes Pictograph Signal word Meaning Note! Important note to ensure trouble-free operation  Tip! Useful tip for easy handling  Reference to another document  Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 11: Safety Instructions

    • All works on and with Lenze drive and automation components must only be carried out by qua- lified personnel. According to IEC 60364 or CENELEC HD 384 these are persons who ...

  • Page 12: Device And Application-Specific Safety Instructions

    Protective insulation ( 16) Device protection • The communication module contains electronic components which may be damaged or de- stroyed by electrostatic discharge. Installation ( 22) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 13: Product Description

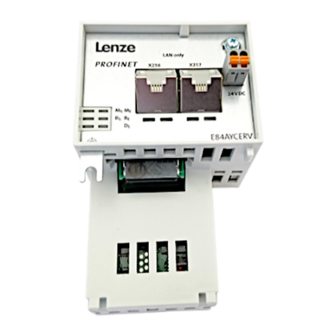

    Module identification: Extension module 8400 Module type: Communication module Type: PROFINET V/S V: Coated version Ser.No.: S: Standard version 2 Hardware version (HW) 3 Software version (SW) E84YCPM001E [3-1] Identification data Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 14: Product Features

    The Inverter Drive 8400 can be integrated into a ring topology as a client node. • Access to all Lenze parameters • An online connection via PROFINET can be established using the Lenze »Engineer«. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 15: Connections And Interfaces

    Status displays at X256 and X257 ( 76) 5 LED status displays for diagnostics Module status displays ( 74) Fieldbus status displays ( 75) E84YCER001C [3-2] E84AYCER communication module (PROFINET) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 16: Technical Data

    Power Conversion Equipment (File-No. E132659)  Hardware manual "Inverter Drives 8400" Here you can find the ambient conditions and data on the electromagnetic compatibility (EMC), which also apply to the communication module. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 17: Protective Insulation

    • the components to be connected must be provided with the second isolating dis- tance.  Note! The existing protective insulation in the Inverter Drives 8400 is implemented according to EN 61800-5-1. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 18 X106 Motor PTC X1 System bus (CANopen) X3 Analog inputs/outputs X4 Digital outputs X5 Digital inputs X6 Diagnostics MCI Slot for the communication module MMI Slot for the memory module Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 19 • The separate potential area of the mains terminal has a "reinforced insulation". • Result: The insulation between mains terminal X100 and the bus terminal is of the "reinforced insulation" type. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 20: Protocol Data

    • For some codes, the processing time may be longer (see software manu- al/»Engineer« online help for the Inverter Drive 8400). There are no interdependencies between parameter data and process data. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 21: Internal Switch Latency

    The use of external switches can also lead to runtime delays. Depending on the system constellation, it may be useful to create a star topology or a line/mix topology. Network topology ( 26) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 22: Dimensions

    _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Dimensions E84YCER001B [4-2] Dimensions Type Dimensions [mm] E84AYCER Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 23: Installation

    • The communication module is defective. • Fieldbus communication is not possible or faulty. Protective measures • Before touching the module, be sure that you are free of electrostatic charge. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 24: Mechanical Installation

    2. Loosen the securing screw for the communication module at the standard device (3). 3. Insert the communication module into the MCI slot of the standard device (4). 4. Tighten the securing screw again (5). Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 25: Mounting For Standard Devices Of 0.55 Kw Or More

    3. Loosen the securing screw for the communication module at the standard device (3). 4. Insert the communication module into the MCI slot of the standard device (4). 5. Tighten the securing screw again (5). Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 26: Exchanging The Communication Module

    2. Pull the communication module out of the MCI slot of the standard device (2). 3. Insert the new communication module into the MCI slot of the standard device (3). 4. Tighten the securing screw again (4). Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 27: Electrical Installation

    The combination of a line and a stub is useful for system wiring. PROFINET supports the following topologies: • Switch / star E94YCER005 [5-4] Switch / star topology (S = switch, D = I/O device) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 28 • Switch / switch E94YCER007 [5-6] Switch/switch topology (S = switch) • I/O controller / I/O device E94YCER008 [5-7] Line topology (C = I/O controller, D = I/O device) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 29: Profinet Connection

    "Automation Initiative of German Domestic Automobile Manufacturers" (AIDA).  Note! To prevent the RJ45 socket from being damaged, insert or remove the Ethernet cable connector straight (at a right angle) into or from the socket. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 30 RJ45 interfaces so that a connection can be established irrespective of the polarity of the opposite PROFINET interface and irrespective of the type of cable used (standard patch cable or crossover cable). Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 31: Ethernet Cable Specification

    B Braid C Foil shielding Twisted core pairs 1 ... 4 Colour code of the Ethernet cable ( 31) E94YCEP016 [5-9] Structure of the Ethernet cable (S/FTP, CAT 5e) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 32 Rx + White / Orange White / Green blue blue White / Blue Blue / White Rx - orange green White / Brown White / Brown brown brown Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 33: External Voltage Supply

    1. Press a screwdriver into the notch below the terminal and keep it pressed. 2. Place the supply cable in the terminal. 3. Remove the screwdriver from the notch. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 34 With wire end ferrule, without plastic sleeve 0.2 ... 1.5 mm (AWG 24 ... 16) With wire end ferrule, with plastic sleeve 0.2 ... 1.5 mm (AWG 24 ... 16) Stripping length 10 mm Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 35: Commissioning

    Commissioning During commissioning, system-related data such as motor parameters, operating parameters, re- sponses, and parameters for fieldbus communication are defined for the inverter. For Lenze devices, this is done via the codes. The codes of the inverter and communication are saved non-volatilely as a data set in the memory module.

  • Page 36: Configuring The Profinet Io Controller

    Configuration for device control For the configuration of PROFINET, the current PROFINET device description file (XML) of the E84AYCER communication module (PROFINET) has to be imported in the IO controller. You can find the GSDML-Vx.z-Lenze-8400PNabb-yyyymmdd.xml device description file in the Download area at: www.Lenze.com...

  • Page 37: Setting The Station Name

    • "n.n.n.n" (n = 0 ... 999) • "port-xyz" (x, y, z = 0 ... 9) • "port-xyz-abcde" (a, b, c, d, e, x, y, z = 0 ... 9) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 38 • Then click Accept change. The station name is saved and written to code C13899. • In the Lenze setting a deleted name is displayed. The name is also deleted if the "Reset to factory defaults" command is executed by an IO supervisor or an I/O controller.

  • Page 39: Setting The Ip Configuration

    • In the case of impermissible settings, the red LED BE (Fieldbus status displays ( 75) blinks and the error message PROFINET: IP address error [0x01bc6533] is out- ( 84) put. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 40: Settings Via The Profinet Configurator Of The "Engineer

    How to set the IP parameters via the PROFINET configurator: 1. Execute the menu command Online  Profinet configurator addresses..The Assign IP addresses dialog window is opened, and all Lenze PROFINET devices connec- ted are listed. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 41 With device command C00002 = "11: Save all parameter sets", the current IP configuration is saved non-volatilely in the memory module. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 42: Setting Via Codes In The "Engineer

    1. Execute the device command C00002 = "11: Save start parameters". 2. Carry out a "reset node" of the node, or switch the voltage supply of the communication module off and on again Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 43 • The gateway address is set/changed in C13002. • In C13012/1...4 the gateway address currently used is shown. Example: Display of the gateway address 192.168.0.1 Code C13012/1 C13012/2 C13012/3 C13012/4 Value Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 44: Establishing An Online Connection Via Profinet With The Lenze "Engineer

    VLAN identification in the Ethernet frame. For an online connection between the »Engineer« and the inverter, the inverter must have an IP address (see Setting the IP configuration ( 39) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 45 • Select the device access path to the desired inverter by clicking Find. After having established the online connection, you can continue work with the »Engineer« as usu- Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 46: Initial Switch-On

    After a fault (e.g. short-term mains failure), it is sometimes undesirable or even imper- missible for the drive to restart. The restart protection is activated in the Lenze setting of the Inverter Drives 8400. The restart behaviour of the inverter can be set via C00142 ("auto-start option"): •...

  • Page 47: Data Transfer

    • Examples of parameter data are operating parameters, motor data, and diagnostic informa- tion. • The acyclic channel provides access to all Lenze codes. • Parameter data changes must be saved via code C00002 of the Inverter Drives 8400. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 48: Process Data Transfer

    Software manual / »Engineer« online help for the Inverter Drive 8400 Here you will find detailed information on the port/function block interconnection in the »Engineer« and the port blocks. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 49: Preconfigured Port Interconnection Of The Process Data Objects (Pdo)

    The preconfigured port interconnection of the process data objects can be activated by setting stan- dard device code C00007 = "40: MCI". The function block editor (FB Editor) serves to display the port blocks "LP_MciIn" and "LP_MciOut" with the preconfigured interconnections: Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 50: Freely Configuring The Port Interconnection Of The Process Data Objects (Pdo)

    1. Go to the Process data objects tab and click Go to application. 2. Go to the Ports tab, select the port blocks "MCI_IN" or "MCI_OUT" and click Activate to ac- tivate them. 3. Click the Change Variable ... button. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 51 Assignment Signal --> Function Block dialog window.  Select the signals and then confirm the selection with OK. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 52 Moreover you can assign signals to the individual control and status bits at the WORD_1 and WORD_2 process data words via the buttons.  Select the signals and then click OK. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 53 When the port blocks "LP_MciIn" and "LP_MciOut" are activated (see 1.), they will be visible in the FB Editor. Here you can also assign signals to the process data words. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 54: Parameter Data Transfer

    An I/O controller can always be used to request parameters from an I/O device if the I/O device is in the "DATA_EXCHANGE" state. E94YCER010 [9-1] Data communication via the acyclic channel Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 55: Acyclic Data Transmission Process

    • The I/O device responds with a "Read.res (-)" if processing is not yet completed. • After parameter processing, the parameter request is completed by transmitting the parameter response in the form of a "Read.res (+)" to the I/O controller. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 56: Structure Of The Profinet Data Frame

    Byte 4 Byte ... String x bytes 1 byte 2 bytes High byte Low byte 4 bytes High word Low word High byte Low byte High byte Low byte Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 57: Reading Parameters From The Inverter

    Index Subindex High byte Low byte High byte Low byte Field Data type Values Index 0x0001 ... 0xFFFF (1 ... 65535) Subindex 0x0001 ... 0xFFFF (1 ... 65535) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 58: Response To A Correctly Executed Read Request

    • Number of requested subindices. (If there is more than one subindex, only the parameter value is repea- ted.) • In the case of string codes, the number of characters is entered here. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 59: Response To A Read Error

    Byte 6 Format Number of values Field Data type Values Format 0x44: Error Number of values 0x01: Error code without additional information 0x02: Error code with additional information Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 60: Frame Example: Read Request

    High byte Low byte High byte Low byte 0x5F 0xC2 0x00 0x00 Index = 24575 - code no. = 24575 - 61 = 24514 = 0x5F C2 No subindex Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 61 Error Error code without additional infor- mation Byte 7 Byte 8 Error code High byte Low byte For the meaning see the chapter "Error information (error)" ( 68) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 62: Writing Parameters To The Inverter

    Index Subindex High byte Low byte High byte Low byte Field Data type Values Index 0x0001 ... 0xFFFF (1 ... 65535) Subindex 0x0001 ... 0xFFFF (1 ... 65535) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 63 Parameter value Byte 13 Byte 14 Byte 15 Byte 16 Value Field Data type Values Value String 0x00 ..0xFF 0x0000 ..0xFFFF 0x0000 0000 ..0xFFFF FFFF Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 64: Response To A Correctly Executed Write Request

    • Error code with additional information (number of values = 0x02) A faulty access to a parameter "n" is indicated at the nth position in the response frame of a multi-parameter request. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 65 Additional information (if available) High byte Low byte High byte Low byte Field Data type Values Error code 0x0000 ..0xFFFF Error information (error) ( 68) Additional information (if available) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 66: Frame Example: Write Request

    Low- word: high byte Low word: low byte 0x00 0x00 0x00 0x32 Value to be written = 0.05 [s] x 1000 (internal factor) = 50 = 0x00 00 00 32 Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 67 Error Error code without additional infor- mation Byte 7 Byte 8 Error code High byte Low byte For the meaning see the chapter "Error information (error)" ( 68) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 68: Error Information (Error)

    Number of values not consis- Write request: Number of values of the parameter tent data do not match the number of subindices in the parameter address 0x0019 Reserved 0x0064 Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 69 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Error code Meaning Description Additional in- formation 0x0065 Manufacturer-specific 0x00FF Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 70: Consistent Parameter Data

    2. The I/O controller only writes a complete data set into the DPM. Configuring consistent data  Note! Consistency is achieved by an appropriate I/O controller configuration (see documenta- tion for the configuring software). Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 71: Monitoring

    Inverter Drive 8400 can be set via code C01501. • The communication module reports a connection interruption to the IO controller and changes to the "No_Data_Exchange" state. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 72: Interruption Of Internal Communication

    _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ • The error message "PROFINET: Exist. conn. to 8400 lost [0x01bc3100]" is output. ( 81) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 73: Diagnostics

    ( 76) The following status displays are distinguished: • Module status displays ( 74) • Fieldbus status displays ( 75) • Status displays at X256 and X257 ( 76) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 74: Module Status Displays

    The communication module is not accepted by the basic device or the basic device is not active (see notes in the documentation rela- ting to the basic device.) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 75: Fieldbus Status Displays

    NO_DATA_EXCHANGE status. blinking Impermissible settings: • Invalid station name • Invalid IP parameters The communication module has been initialised and continues to work internally with the respective standard values. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 76: Status Displays At X256 And X257

    The LEDs below the RJ45 sockets X256 and X257 indicate the PROFINET connection status. E84YCER005 Colour Status Description green No connection to PROFINET Connection to PROFINET has been established. Yellow No communication On or Flickers Communication active Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 77: Diagnostics With The "Engineer

    _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11.2 Diagnostics with the »Engineer« In the »Engineer« under the Diagnostics tab, you will find PROFINET diagnostics information. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 78: Diagnostic Data

    Submodule ID ID according to module 25, 26 Alarm specifier 0xB000 27, 28 User structure identifier 0x0001 29 ... 32 Error code of the Inverter Drive 8400 / E84AYCER Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 79 0 0 0 0 0 1 1 0 1 1 1 1 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 0 0 1 Response Instance ID Module ID Error ID  Software manual/»Engineer« online help for Inverter Drive 8400 Detailed information on the error codes is provided here. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 80: Error Messages

    1: No Response 0x01bc6533 25907 PROFINET: IIP address error 1: No Response 0x01bc6534 25908 PROFINET: Stack init error 1: No Response 0x01bc6650 26192 PROFINET: Internal error 1: No Response Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 81: Possible Causes And Remedies

     No reaction  System fault  Fault  Trouble  Quick stop by trouble  WarningLocked  Warning  Information Cause Remedy Parameter could not be written. Send communication module together with a descripti- on of the fault to Lenze. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 82  No reaction  System fault  Fault  Trouble  Quick stop by trouble  WarningLocked  Warning  Information Cause Remedy Access to parameter set in the memory module was not • Download application again (including module). possible. • Send device with error description to Lenze. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 83  No reaction  System fault  Fault  Trouble  Quick stop by trouble  WarningLocked  Warning  Information Cause Remedy Station name is not DNS-conform. Use a DNS-compliant station name. Setting the station name ( 36) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 84  No reaction  System fault  Fault  Trouble  Quick stop by trouble  WarningLocked  Warning  Information Cause Remedy Internal error Send communication module together with a descripti- on of the fault to Lenze. Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 85: Parameter Reference

    Here you will find general information on parameters. [Search-Keywords] Hlp_Para 13.1 Parameters of the communication module This chapter lists the parameters of the E84AYCER communication module (PROFINET) in numeri- cally ascending order.  Note! PROFINET command "Reset to Factory Defaults"...
  • Page 86 MAC ID: Port1 C13003/3 MAC ID: Port2  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 87 Active gateway address.3 C13012/4 Active gateway address.4  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 88 (min. value | unit | max. value) 65535 Subcodes Info C13852/1 C13852/16  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 89 Bit 13 Reserved Bit 14 Reserved Bit 15 Reserved  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 90 181th ... 210th character C13864/8 211th ... 240th character  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 91 12 Watchdog expired 13 Protocol not supported  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 92 (min. value | unit | max. value) 65535 0 ms  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 93 181th ... 210th character C13899/8 211th ... 240th character  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 94 • The Lenze setting shows an empty string.  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 95 0000000000000000000000000 C13914/2 00000000000000000000000000000 I&M4 signature code 0000000000000000000000000  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 96: Table Of Attributes

    1000 ≡ 3 decimal positions Access Read access  Reading permitted Write access  Writing permitted CINH Controller inhibit required  Writing is only possible if controller inhibit is set Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 97  C13912 I&M2 installation date 10663 29A7 VISIBLE_STRING   C13913 I&M3 additional information 10662 29A6 VISIBLE_STRING   C13914 I&M4 signature code 10661 29A5 OCTET_STRING   Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...

  • Page 98: Index

    C13885 | Delete process data C13887 | Suppress signalling diag. mess. upon C13899 | Station name Electrical installation C13900 | Firmware product type Error code of Inverter Drive 8400 Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 99 I&M1 installation site (C13911) Lenze Setting Loaded (error I&M1 system designation (C13910) message) I&M2 installation date (C13912) Exist. conn. to 8400 lost (error message) I&M3 additional information (C13913) Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 100 Suppress signalling diag. mess. upon (C13887) Switch latency Switching method System error messages Table of attributes Target group TCP port Technical data Terminals Terminology used Terms Type of node Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019...
  • Page 101 E84AYCER communication module (PROFINET) · 13564915 · EDS84AYCER · EN 3.0 · 02/2019 · TD23 Lenze Drives GmbH Postfach 10 13 52, D-31763 Hameln Breslauer Straße 3, D-32699 Extertal Germany HR Lemgo B 6478 +49 5154 82-0 +49 5154 82-2800 sales.de@lenze.com...
