Halsey Taylor HTHBHAC8SS-NF-25 Installation & Use Manual

Model: HTHBHAC8SS-NF-25 Bottle Filling Station & Cooler

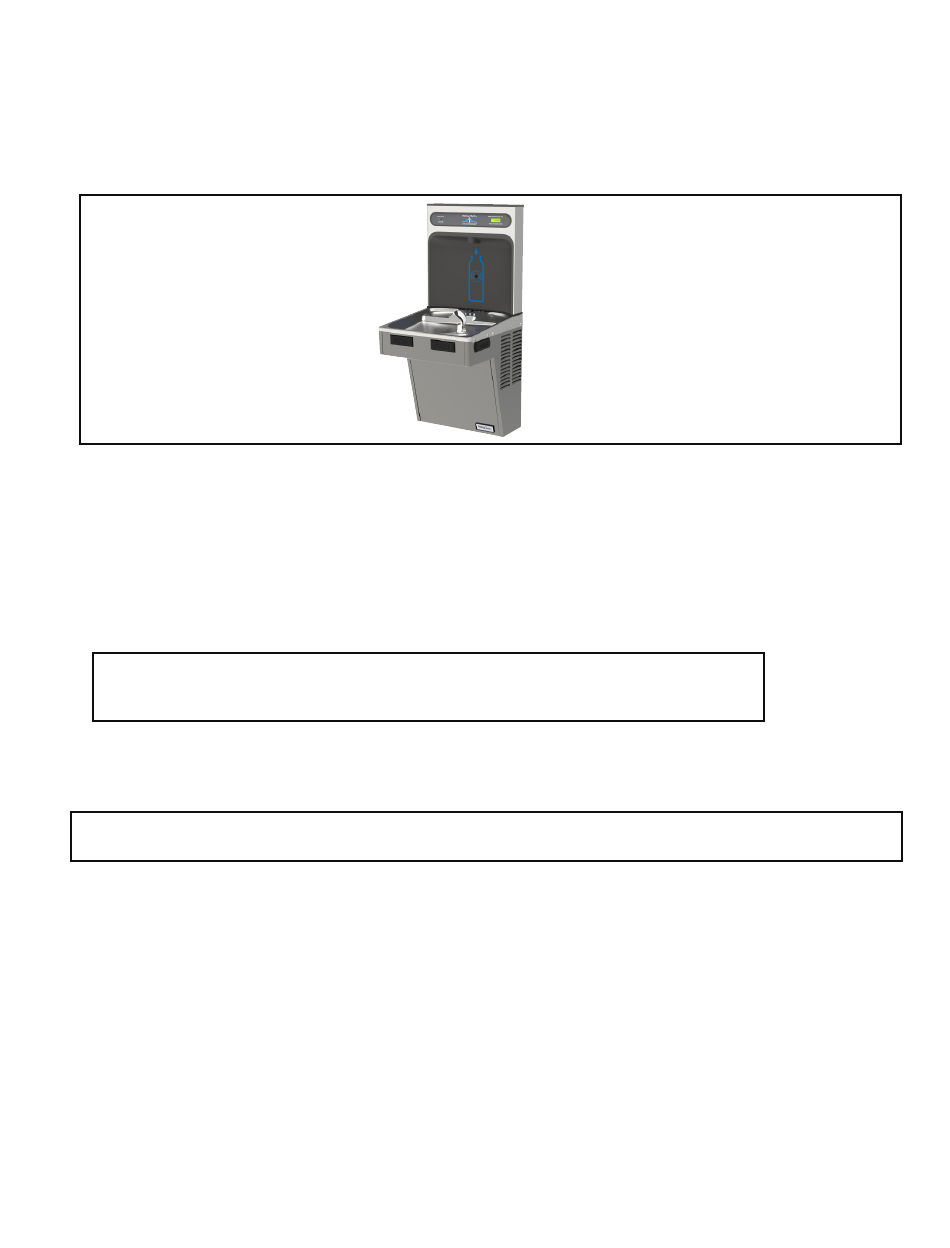

Description

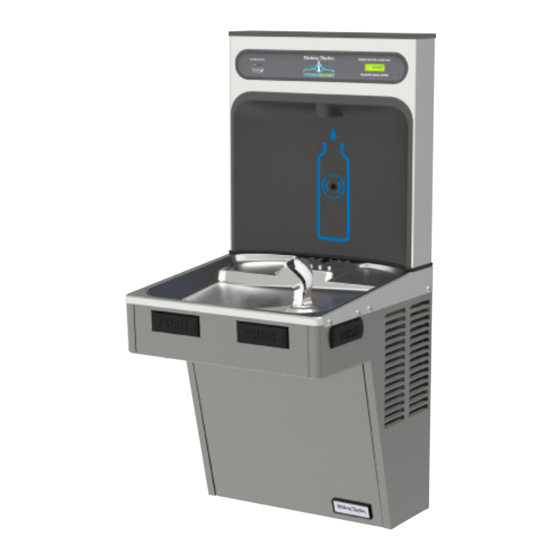

Combination Refrigerated Drinking Fountain (Cooler) and Bottle Filling Station delivers chilled, clean potable drinking water. Top Bottle Filling
section offers touchless activation to dispense water for bottles. While the bottom Water Cooler section, which houses the refrigeration system,
delivers a steady stream of water for direct drinking at the press of front and sidebars.

Ratings

• Electrical: 230Vac, 50Hz, (See Nameplate for Amperage), 1 phase.
• Ambient Air Temperature: 10-38 °C (50-100.4 °F).
• Water Pressure: 20-100 psig (0.14-0.69 MPa).
• Maximum Water Temperature: 90 °F (32 °C).
• Refrigerant: HFC-R134a

Definitions

DANGER
– Indicates death or serious injury will result if proper precautions are not taken.
WARNING
– Indicates death, serious injury or property damage can result if proper precautions are not taken.
CAUTION
– Indicates some injury or property damage may result if proper precautions are not taken.
Authorized Service Personnel – Factory trained personnel or personnel having working knowledge of electrical, plumbing and
machine (appliance) maintenance procedures.

Safety

DANGER
• Please read these instructions completely before starting the installation or performing any service. Failure to follow the instructions and
safety precautions in this manual can result in serious injury or death.
• After installation, keep these instructions in a safe location for future reference.
• Electric supply must be identical in voltage, cycle, and phase to that specified on nameplate.
• Electrical supply must have Ground Fault Circuit Interrupter (GFCI) protection.
• A means for disconnecting electrical supply to the unit must be incorporated in the fixed wiring in accordance with wiring rules. This is
to allow electrical disconnection of the unit from electrical supply after installation.
WARNING
• For use with clean, clear potable drinking water only. Do not use with water that is microbiologically unsafe or of unknown quality
without adequate disinfection before the system.
• Installation and connection to water and electrical mains must be in compliance with local and national laws.
• All Installation and Service work must be performed by an authorized service personnel.
CAUTION
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental
capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• To prevent a metallic taste or increased metal content in the water due to an electrolysis process caused by electrical feedback from
the grounding of electrical equipment to water supply and water waste mains, connect to these mains using non-conductive
materials. The provided in-line strainer meets this requirement.
HAC8FSCWSNFQ_2F
Installation & Use Manual
Original Instructions
• Ingress Protection: IP2x
• For Indoor Commercial Use only.
• Water Inlet: 3/8"O.D. unplated copper tube.
• Waste Water Outlet: 1-1/4" O.D. tube
Page 1 1000002478 (Rev. D - 09/18)
