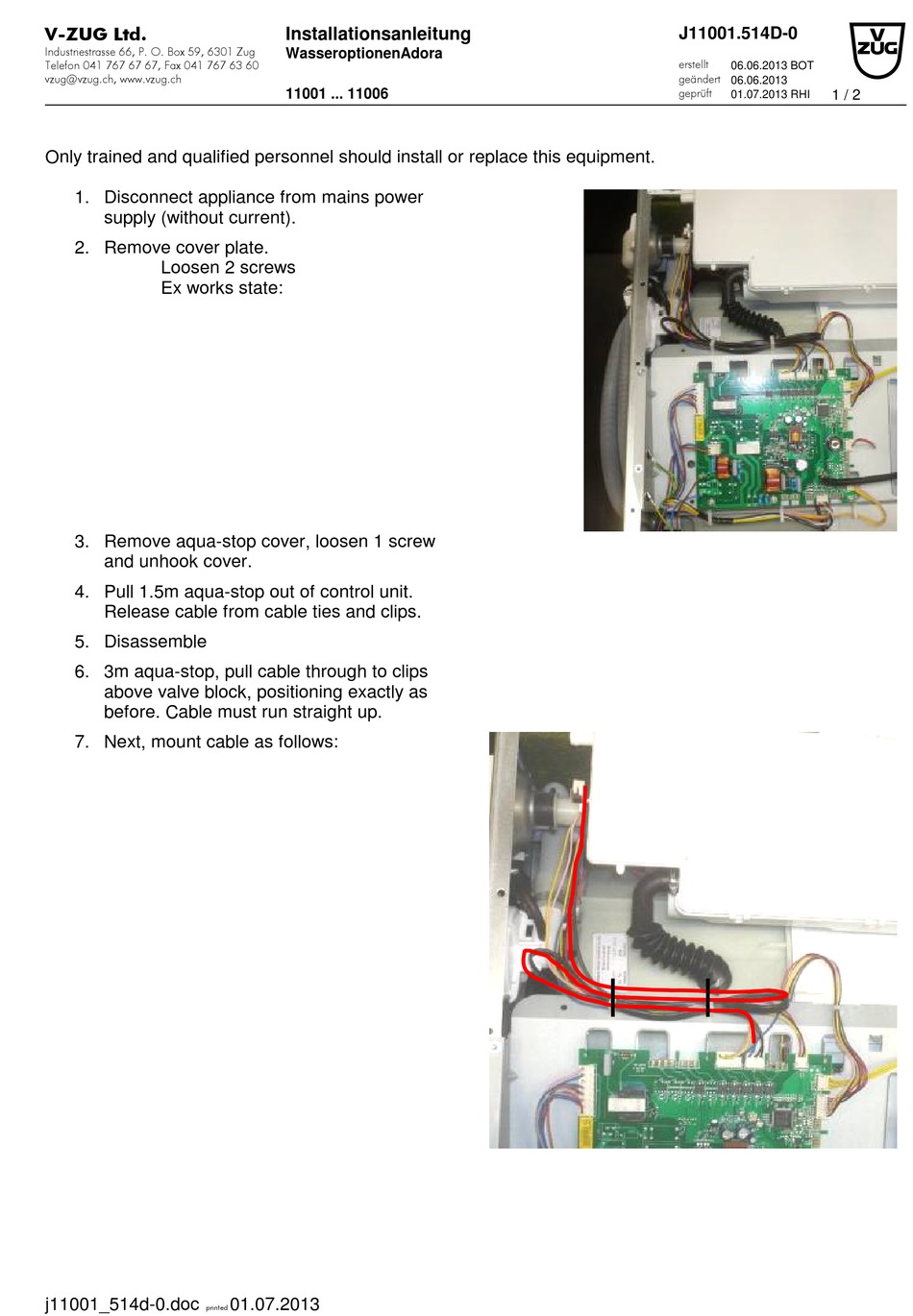

Only trained and qualified personnel should install or replace this equipment.
1. Disconnect appliance from mains power
supply (without current).

2. Remove cover plate.

Loosen 2 screws
Ex works state:
3. Remove aqua-stop cover, loosen 1 screw
and unhook cover.

4. Pull 1.5m aqua-stop out of control unit.

Release cable from cable ties and clips.

5. Disassemble

6. 3m aqua-stop, pull cable through to clips
above valve block, positioning exactly as
before. Cable must run straight up.
7. Next, mount cable as follows:
