Installation instructions

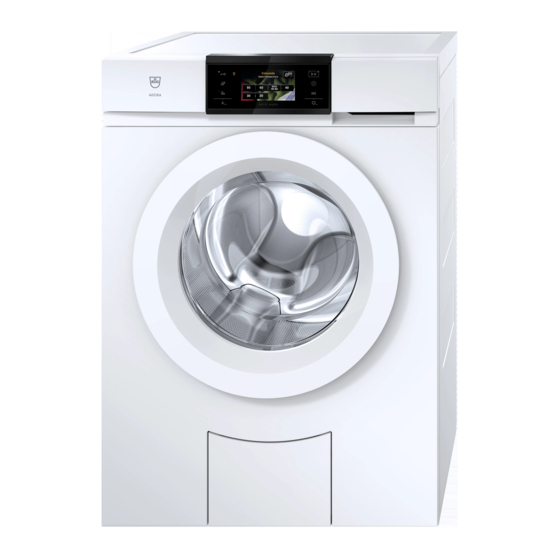

«Front loader» washing machine
One-family household
The appliance should be installed by qualified personnel only.
Each step must be carried out and checked in full in the order specified.
Validity
These installation instructions apply to the models: 11021, 11023, 11025

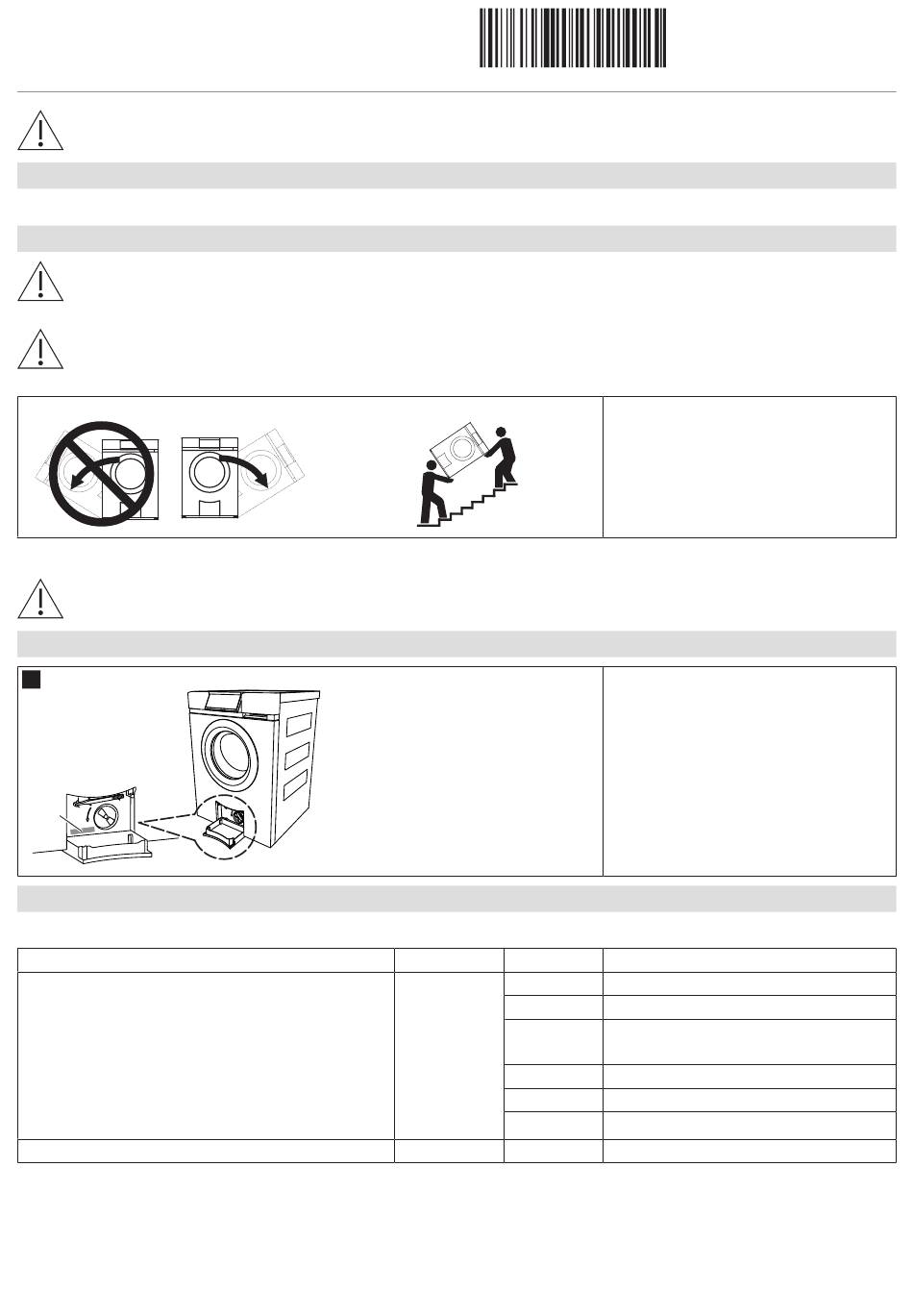

Transport
If the weight of the appliance is greater than your lifting capacity, the appliance must be transported by several
people or using a transport aid. The weight of the appliance is given on the appliance packaging and in the operating
instructions.
Transport the appliance in an upright position only! Transporting it in any other position will cause damage. When
carried carefully without being shaken, the appliance may be tilted a maximum of 90° to the right (viewed from the
front).
Applicable only to model 11025:
In the event that the appliance is tilted during transportation or installation it must not be put into operation for 2
hours.
Identification plate
1
1
Installation accessories supplied
The necessary installation accessories are located in the washing drum and in the appliance packaging.
Designation
Installation set, incl.:
▪ Rubber stopper
▪ Screw material (3 each of screws, washers,
rawlplugs)
▪ Drain hose
▪ Wire hose clamp
▪ Hose support
Installation plate (incl. double-sided adhesive tape)
1064372-R03
Article no.
Number
W41152
1
2
1
1
1
1
W40653
1
1
1064372-R03
04/02/2019
▸
Open the drain tray below the appliance
door (see «1. Opening the appliance
door»).
– Identification plate 1
See installation step
2. Removing the transport lock
4. Positioning the installation plate
6. Plumbing in
6. Plumbing in
6. Plumbing in
4. Positioning the installation plate
