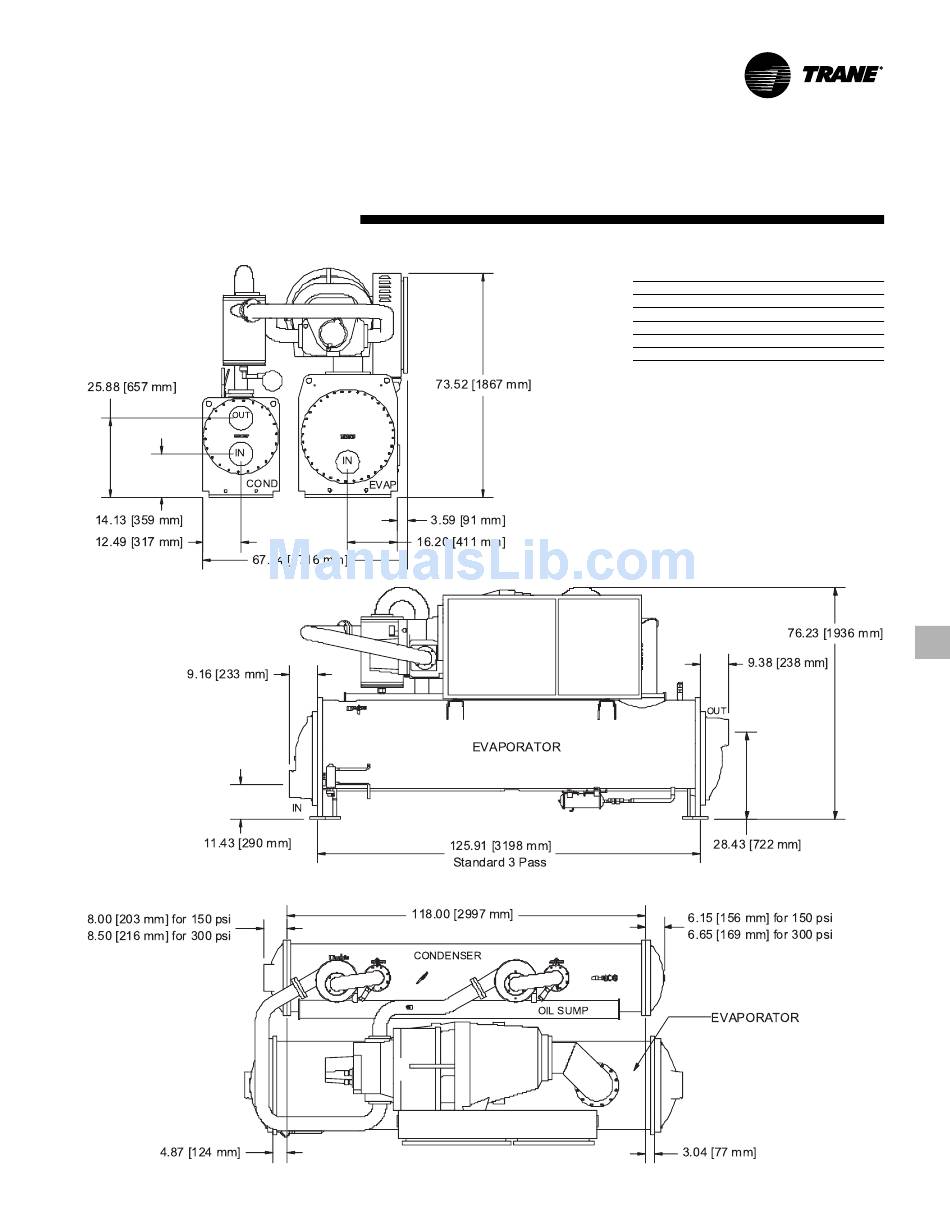

RLC-PRC020-EN
Dimensions and
Weights
CFF , DFF , EFF Configuration
Recommended Clearances
Front
36" (914 mm)
Back
36" (914 mm)
Either End
36" (914 mm)
Other End*
126" (3200 mm)
T op
36" (914 mm)
* Clearance for tube removal
Note:
1. Dimensions are based on 3 Pass Evap / 2 Pass
Cond and LH/LH water connections. Refer to
submittals for exact configuration.
2. Refer to the Nominal Capacity Data table in the
General Data section for capacity ranges of each
compressor.
27
