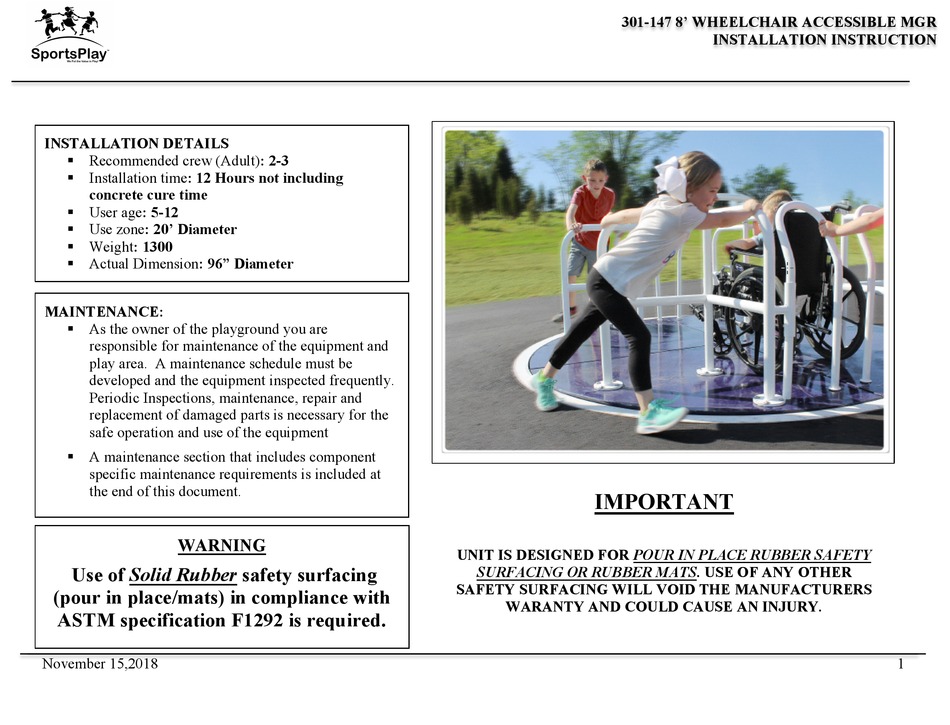

SportsPlay 301-147 Installation Instruction

8’ wheelchair accessible mgr
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTALLATION DETAILS
§ Recommended crew (Adult): 2-3
§ Installation time: 12 Hours not including
concrete cure time
§ User age: 5-12
§ Use zone: 20' Diameter
§ Weight: 1300
§ Actual Dimension: 96" Diameter
MAINTENANCE:
§ As the owner of the playground you are
responsible for maintenance of the equipment and
play area. A maintenance schedule must be
developed and the equipment inspected frequently.
Periodic Inspections, maintenance, repair and
replacement of damaged parts is necessary for the
safe operation and use of the equipment
§ A maintenance section that includes component
specific maintenance requirements is included at
the end of this document.
WARNING
Use of Solid Rubber safety surfacing
(pour in place/mats) in compliance with
ASTM specification F1292 is required.
November 15,2018
301-147 8' WHEELCHAIR ACCESSIBLE MGR
IMPORTANT
UNIT IS DESIGNED FOR POUR IN PLACE RUBBER SAFETY
SURFACING OR RUBBER MATS. USE OF ANY OTHER
SAFETY SURFACING WILL VOID THE MANUFACTURERS
WARANTY AND COULD CAUSE AN INJURY.
INSTALLATION INSTRUCTION
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 301-147 and is the answer not in the manual?

Questions and answers

Related Manuals for SportsPlay 301-147

Summary of Contents for SportsPlay 301-147

  • Page 1 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION INSTALLATION DETAILS § Recommended crew (Adult): 2-3 § Installation time: 12 Hours not including concrete cure time § User age: 5-12 § Use zone: 20’ Diameter § Weight: 1300 § Actual Dimension: 96” Diameter MAINTENANCE: §...

  • Page 2: Parts List

    301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION PARTS LIST PARTS LIST CONTINUED ID PART # DESCRIPTION ID PART # DESCRIPTION 913-807-L ADA 8’ QTR DECK LEFT 20 913-809-L ADA GATE LEFT 913-808-L ADA MAIN HANDRAIL LFT 21 913-809-R ADA GATE RIGHT 913-806 8’...
  • Page 3 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION IMPORTANT UNIT IS DESIGNED FOR POUR IN PLACE RUBBER SAFETY SURFACING OR RUBBER MATS. USE OF ANY OTHER SAFETY SURFACING WILL VOID THE MANUFACTURERS WARANTY AND COULD CAUSE AN INJURY. November 15,2018...
  • Page 4 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION November 15,2018...
  • Page 5 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION IMPORTANT EXCAVATION AND FOOTING INFORMATION Remember, the excavation depths detailed in the drawings on the DRAINAGE following page are based on the top of the planned safety surfacing and may not necessarily be at the same height of the A drainage system is recommended for underneath the accessible current surface.
  • Page 6 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION November 15,2018...
  • Page 7 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION SPECIFICATIONS INSTALLATION TIPS & TROUBLE SHOOTING § Deck – 12ga HRPO welded steel deck § UNIT IS DESIGNED FOR POUR IN PLACE RUBBER SAFETY SURFACING OR RUBBER MATS. USE OF § Deck Coating – Thermoplastic/Vinyl (depending on...
  • Page 8 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION EXCAVATION AND FOOTING VIEW (SIDE VIEW ABOVE – TOP DOWN RIGHT) November 15,2018...

  • Page 9: Installation Steps

    301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION INSTALLATION STEPS __1. Once the desired location has been determined while keeping a 20’ diameter use zone in mind, dig a 12’ diameter hole to a depth of 24" and at the center of that hole dig an additional 3’ (or 5’ from the top of the safety surfacing height) hole for the footing.
  • Page 10 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION __6. Attach the MGR support arms (6) to the hub assembly (5) by sliding the arm over the tabs on the hub (do not attach to the side of the tabs) and secure using 1 1/2” bolts, 3/8 washers and 3/8”...
  • Page 11 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION __9. There are two types of handrails, a left and right. Ensure that the sleeve for the left handrail and sleeve for the right are pointed at each other so you can install the gates properly as shown by the arrows to the left __10.
  • Page 12 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION PERIMETER RING INSTALLATION __13. If using any material under feet, have them ready. Attach the feet to the bottom of the ring sections and secure. The perimeter ring is designed to create a wall around the __14.
  • Page 13 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION November 15,2018...
  • Page 14 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION November 15,2018...
  • Page 15 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION November 15,2018...
  • Page 16 301-147 8’ WHEELCHAIR ACCESSIBLE MGR INSTALLATION INSTRUCTION BACKFILL AND INSTALL SURFACING Once the retaining ring has been installed, leveled and anchored, you then carefully backfill the area up to the ring. We recommend that you fill and pack the area directly against the ring and around each turnbuckle and chain anchor by hand to prevent shifting and to ensure they are properly filled.
