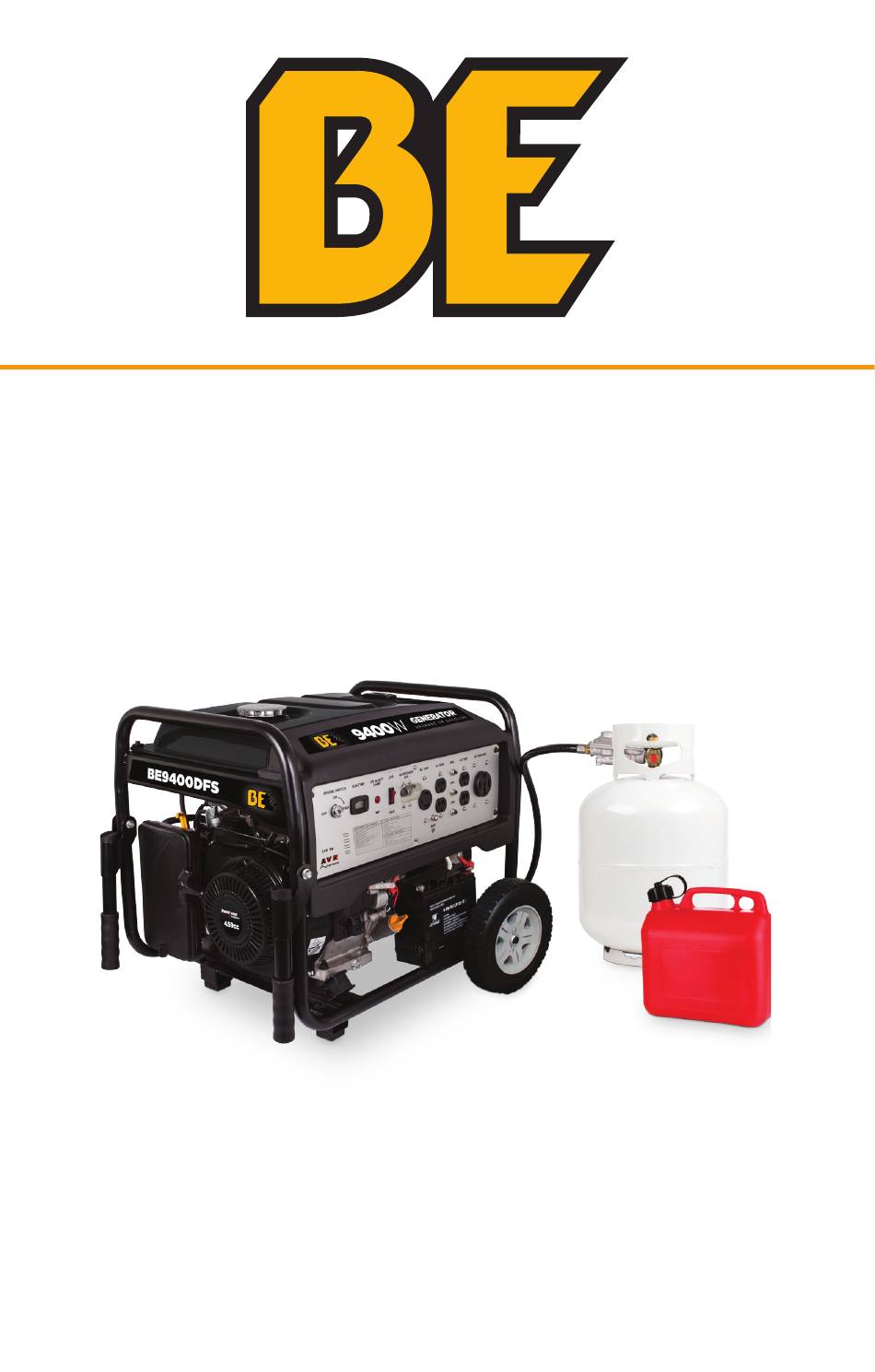

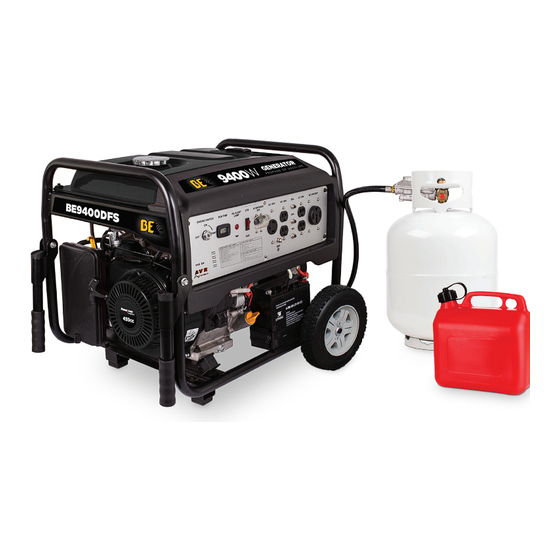

- Page 1 GENERATOR BE9400DFS user manual...
- Page 2 TABLE OF CONTENTS Introduction 4 Using the Operators Manual Product Identification 5 Generator 5 Engine Safety 6 Safety Rules 6 Hazard Symbols and Meanings Ground Fault Circuit Interrupter Protection Assembly 12 Assembling the Accessory Kit Generator Components 13 9400W Component Chart Preparing the Generator 14 Grounding the Generator Pre-Operation Checklist 15 Engine Oil...
- Page 3 TABLE OF CONTENTS Operation 20 Using Electric Power 20 AC Application Stopping the Generator 21 Stopping the Generator 21 Oil Sensor Maintenance 22 Maintenance Schedule 22 Maintenance 23 Changing Engine Oil 23 Servicing the Air Filter 23 Cleaning and Gapping Spark Plug 23 Cleaning Fuel Strainer 23 Periodic Operation and Inspection 24 Cleaning Spark Arrestor Screen 24 Valve Clearance Transporting...
- Page 4 Reading the owner’s manual thoroughly will help avoid any personal injury or damage to your machine. By knowing how best to operate this machine you will be better positioned to show others who may also operate the unit. This manual is written to take you from the safety requirements to the operating functions of your machine.
- Page 5 PRODUCT IDENTIFICATION Record Identification Numbers GENERATOR If you need to contact an Authorized Dealer or Customer Service line (1-866-850-6662) for information on servicing, always provide the product model and identification numbers. You will need to locate the model and serial number for the machine and record the information in the places provided below.
- Page 6 SAFETY Save these Instructions Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a symbol and/or a safety message to alert you to hazards.
- Page 7 When you use a portable generator, remember that you cannot smell or see carbon monoxide. Even if you can’t smell exhaust fumes, you may still be exposed to carbon monoxide. • NEVER operate the generator in an explosive atmosphere, near combustible materials or where ventilation is not sufficient to carry away exhaust fumes.
- Page 8 If the fuel is spilled or the container is not sealed properly, invisible vapors from the fuel can travel along the ground and can be ignited by the appliance’s pilot light or by arcing from electric...
- Page 9 “Grounding Instructions” in the Preparation section of this manual can be necessary. Please consult a qualified electrician for local regulations. • The generator is a potential source of electrical shock if not kept dry.
- Page 10 • Do not enclose the generator or cover it. The generator may become overheated if it is enclosed. If generator has been covered to protect if from the weather during non use, be sure to remove it and keep it well away from the area during generator use.
- Page 11 • Use only “LISTED” extension cords. When a tool or appliance is used outdoors, use only extension cords marked “For Outdoor Use”. Extension cords, when not in use should be stored in a dry and well ventilated area. • Always switch off generator’s AC circuit breaker and disconnect tools or appliances when not in use, before servicing, adjusting, or installing accessories and attachments.
- Page 12 nsion SECTION 2 -GENERAL INFORMATION ASSEMBLY SECTION 2 -GENERAL INFORMATION 2.1 UNPACKING flange nut 3. Refer to following Figure to install the handle fl""S bolt _,.� assembly as shown. • Set the carton on a rigid, flat surface. 2.1 UNPACKING : ...
- Page 13 NOTICE GENERATOR COMPONENTS Pictures and dr a wings used in this manual are for reference only and do not represent any specific model Read this operator’s manual and safety rules before operating your generator. be9400dfs 9400 watt __.II ._ Thermal...
- Page 14 A metal underground water pipe in direct contact with the earth for at least 10 feet can be used as a grounding source. If a pipe is unavailable, an 8 foot length of pipe or rod may be used as the ground source.
- Page 15 ° Engine Oil Below 40 ° F and down to 1 F, use lOW-30 Before checking or refilling oil, be sure generator is located on ° Below 10 F, use synthetic 5W-30 stable and level surface with engine stopped. 1. Remove oil dipstick and check the engine oil level.
- Page 16 Keep fuel away from sparks, open flames, 4. Generator not resting on or against any o check oil level. Be deposits from faming in f should be emptied before storage of 30 days or Fuel gauge adjacent wiring. ot lights, heat, and other ignition sources. DO The national Electrical Code requires longer.
- Page 17 • Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine. • Replacement parts must be the same and installed in the same position as the original parts. starting your generator When using “LPG”, put...
- Page 18 "start" position for more than 15 Start sides of ge proper oil level in crankcase. This unit may be equipped with a seconds, and pause for at least 1 minute between Contact the low oil protection device. If so, oil must be checked at proper retailer , or starting attempts.
- Page 19 CAUTION Do not connect appliances with defective power cords and/or plugs. • Be sure appliances are not connected to generator when starting up. Starting the generator with an appliance connected could result in damage to the generator and/or appliances and personal injury.
- Page 20 OPERATION Using Electric Power WARNING Risk of electrocution. Make sure that the appliance is switched off before connecting it to the generator. • DO NOT move the generator while it is running. Connecting Electrical Loads 1. Let engine run stable and warm up for a few minutes after starting. 2.
- Page 21 • Loads such as submersible pumps and air compressors require a very large force to start. They need 3 to 5 times the normal running wattage in order to start. For example, a 5000 watt generator would only be able to drive a 1000 to 7000 watt pump. CAUTION If an electric motor fails to start or reach running speed, turn off the appliance or tool immediately to avoid equipment damage.
- Page 22 Generator maintenance consists of keeping the unit clean and dry. Operate and store the unit in a clean dry environment where it will not be exposed to excessive dust, dirt, moisture or any corrosive vapors. Cooling air slots in the generator must not become clogged with snow, leaves, or any other foreign material.
- Page 23 When using the generator as emergency electric power source, periodic operation and inspection are needed. Fuel (gasoline) and engine oil will deteriorate with time, and cause the engine to be difficult to start and result in improper engine operation and /or failure.
- Page 24 • Makes starting difficult CAUTION If engine has been running, the muffler and the spark arrester will be very hot. Allow the muffler to cool before cleaning the spark arrester. Clean The Spark Arrester Screen 1. Shut off generator and allow the engine and muffler to cool down completely before servicing spark arrestor (located on the back of the muffler).
- Page 25 Preparation for Storage The generator should be started at least once every seven days and be allowed to run at least 30 minutes. If this cannot be done and the unit must be stored for more than 30 days, use the following information as a guide to prepare it for storage: 1.
- Page 26 Avoid spray from spark plug holes when cranking engine. • If it is not practical to empty the fuel tank and the unit is to be stored for some time, use a commercially available fuel stabilizer added to the gasoline to increase the life of the gasoline.
- Page 27 WARRANTY BE Pressure Inc. warrants that each new product will be free of any manufacturer defects in workmanship for the set warranty period of the product. Warranty applies to the original purchaser of the product and cannot be transferred. This warranty does not cover normal wear items, including but not limited to: seals, packings, valves, o-rings, spark plugs etc.
- Page 28 THE POWER YOU NEED. If you need assistance with the assembly or operation of your generator please call 1-866-850-6662 or visit our website at: BEPOWEREQUIPMENT...
