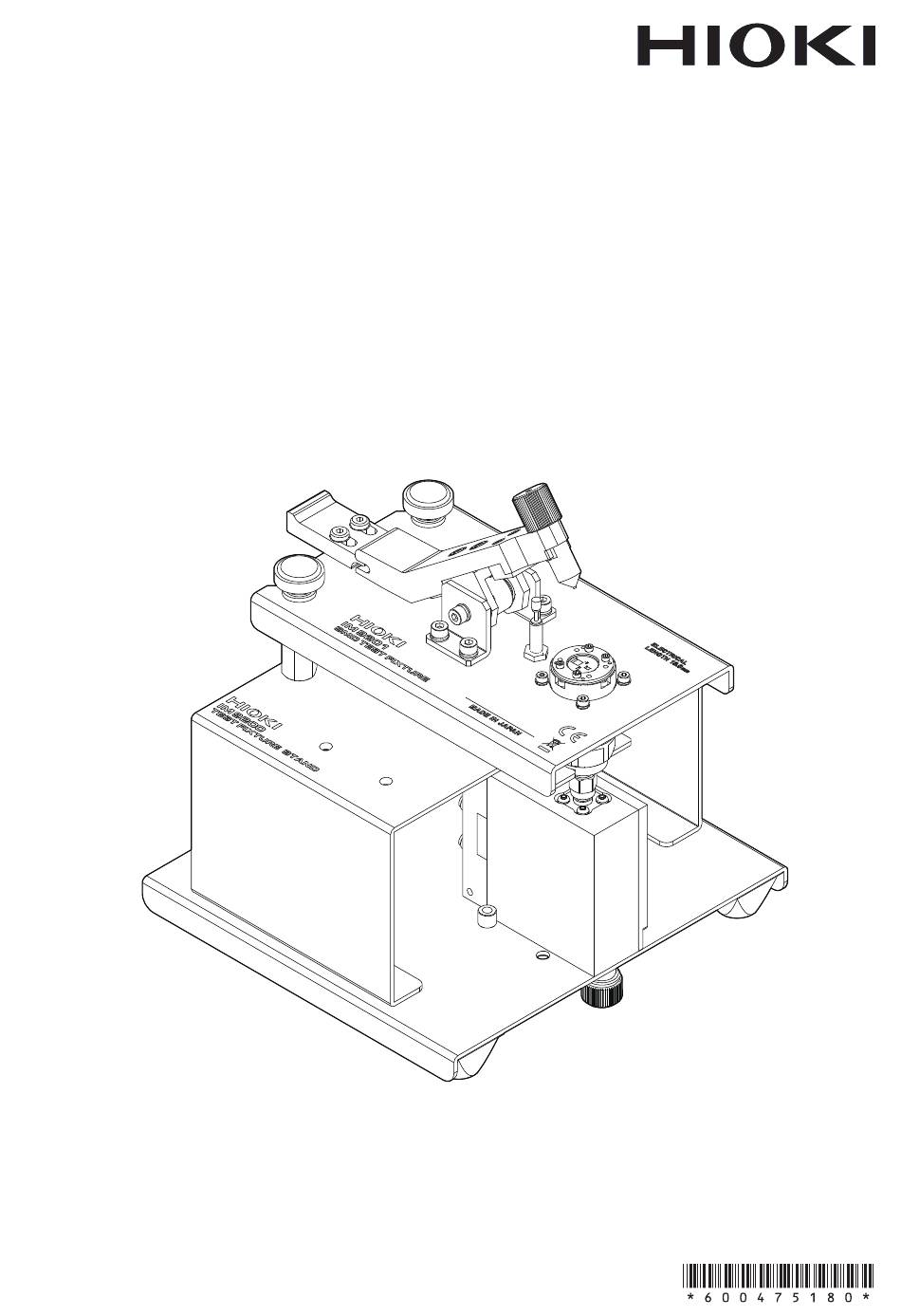

- Page 1 IM9201 Instruction Manual SMD TEST FIXTURE July 2016 Edition 1 IM9201A961-00 16-07H...
-
Page 3: Table Of Contents
Introduction Introduction Thank you for purchasing the Hioki IM9021 SMD Test Fixture. To obtain maximum performance from the device, please read this manual first, and keep it handy for future reference. This device is used by connecting to the impedance analyzer. Before using the impedance analyzer, read the instruction manual of the impedance analyzer carefully. -
Page 4: Verifying Package Contents
When you receive the device, inspect it carefully to ensure that no damage occurred during shipping. In particular, check the accessories. If damage is evident, or if it fails to operate according to the specifications, contact your authorized Hioki distributor or reseller. Confirm that the following items are provided. -
Page 5: Safety Information
Safety Information Safety Information Before using the device, be certain to carefully read the following safety notes. CAUTION • Mishandling during use could result in damage to the device. Be certain that you understand the instructions and precautions in the manual before use. •... -
Page 6: Operating Precautions
• To prevent damage to the device, use the bolts included in the factory shipment for securing the pusher and plate. If you have lost any bolts or find any damaged bolts, please contact your authorized Hioki distributor or reseller for a replacement. Measurements CAUTION •... -
Page 7: Product Overview
Product Overview Product Overview This device is the test fixture for SMD (Surface Mount Device) to be used by connecting to the impedance analyzer of Hioki. It measures the 2 terminals of SMD. Measurable DUT size Dimensions Nominal size [mm] JIS (EIA) L ×... -
Page 8: Names And Functions Of Parts
Names and Functions of Parts Names and Functions of Parts (11) (10) (12) (11) (13) Presses and fixes the DUT. Pusher Tip pin The tip of the pusher. Replaced according to the DUT to be measured. Absorbs the shock when the pusher comes down. Shock absorber Device guide Placed on the top of the GND plate or short plate for use. -
Page 9: Measuring Method
Execute the open calibration, short calibration, and load Execute the calibration. calibration. (p.10) Attach the device to the model IM9200 Test Fixture Stand. Attach the device. Device (model IM9201) (p.13) Execute the electrical length correction, short correction, and Execute the correction. open correction. (From p.14) Connect the DUT to the measurement location of the device Start the measurement. -
Page 10: Inspection Before Use
Measuring Method Inspection Before Use Before using the device, verify that it operates normally to ensure that no damage occurred during storage or shipping. If you find any damage, contact your authorized Hioki distributor or reseller. Inspection item Solution Compare the resistance value with the new or a non-defective short Is the short plate worn? plate. -
Page 11: Attaching The Test Head And The Adapter
Measuring Method Attaching the Test Head and the Adapter Attach the test head and model IM9906 Adapter to the model IM9200 Test Fixture Stand. IMPORTANT The impedance analyzer, test head, and measurement cable are adjusted together at the time of shipment. Use the test head and measurement cable included along with the impedance analyzer. -
Page 12: Calibration
Measuring Method Calibration Connect the three standard units, open, short, and load of the model IM9905 Calibration Kit to the reference surface (terminal) of model IM9906 Adapter one by one, and measure the respective calibration data. This reference surface is referred to as the “calibration reference surface”. The cause of errors between the impedance analyzer itself and the calibration reference surface is eliminated. - Page 13 Measuring Method Open Place the open calibration kit on the reference calibration kit surface. As shown in figure, connect by turning only the nut of open calibration kit while pressing the convex portion on the top part of the open calibration kit. The convex part of the open calibration kit is connected with the internal conductor.
- Page 14 Measuring Method Remove the short calibration kit by turning the nut of Load calibration kit the open calibration kit. Place the load calibration kit on the reference surface. As shown in figure, connect by turning only the nut of load calibration kit while pressing the top part of the load calibration kit.
-
Page 15: Attaching The Device
Measuring Method Attaching the Device Attach the device to the model IM9200 Test Fixture Stand and adapter. Bolt thread Lower the bolt thread by turning the nut of model IM9906 Adapter. Loosen the stand fixing knob. Place the device on the model IM9200 Test Fixture Stand. -
Page 16: Electrical Length Correction
Measuring Method Electrical Length Correction The error, caused by the phase shift occurring between the calibration reference surface and the measurement DUT's connection surface is compensated. Set the electrical length correction to 19 mm in the impedance analyzer. -
Page 17: Short Correction
• Device guide and short plate × 1 each Device guides and short plates for each DUT size The set direction as viewed from the front (position from where the model name IM9201 can be read). 3225 3225... - Page 18 Measuring Method Set the reference value of correction (COMPEN) in the impedance analyzer. The initial values of the impedance analyzer are set to the values of the left-side table. When measuring very small inductors, the short plate’s inductance may affect measured values. For this device In such cases, enter the short plate’s inductance as the short Ω...
- Page 19 Measuring Method Lower the pusher slowly. Then turn the knob to adjust the position of the tip pin to a position which can be fixed by the DUT. When the location of tip pin is finalized, fix it by turning the knob and lower the pusher.
-
Page 20: Open Correction
3225 2012 3216 Measuring Method Open Correction 3225 2012 3216 Open correction is executed to reduce errors. The GND plate is used. You will need: • Hex driver × 1 • Tweezers × 1 (This is not provided with the device. Tweezers which are thinner than the DUT size, clean, and not magnetized are recommended.) •... - Page 21 Measuring Method Start the open correction in the impedance analyzer. When correction cannot be executed, check that the DC measurement limit value of the impedance analyzer is appropriate.
-
Page 22: Starting The Measurement
Measuring Method Starting the Measurement Place the DUT in the measurement location of the device guide, lower the pusher and start the measurement. You will need: • Tweezers × 1 (This is not provided with the device. Tweezers which are thinner than the DUT size, clean and not magnetized are recommended.) •... -
Page 23: Specifications
Basic specifications Connectable measurement Models IM7580, IM7580A, IM7581, IM7583, IM7585 (as of July, 2016) devices For updated information, please contact your authorized Hioki distributor or reseller. Connecting part to the Bottom surface contact due to 2 terminals structure Dimensions of measurable JIS (EIA): L ×... -
Page 24: Maintenance And Service
When replacing parts, please contact your authorized Hioki distributor or reseller. Troubleshooting If the device seems to be malfunctioning, contact your authorized Hioki distributor or reseller. Transportation Be sure to observe the following precautions: •... - Page 25 16-01 EN...
