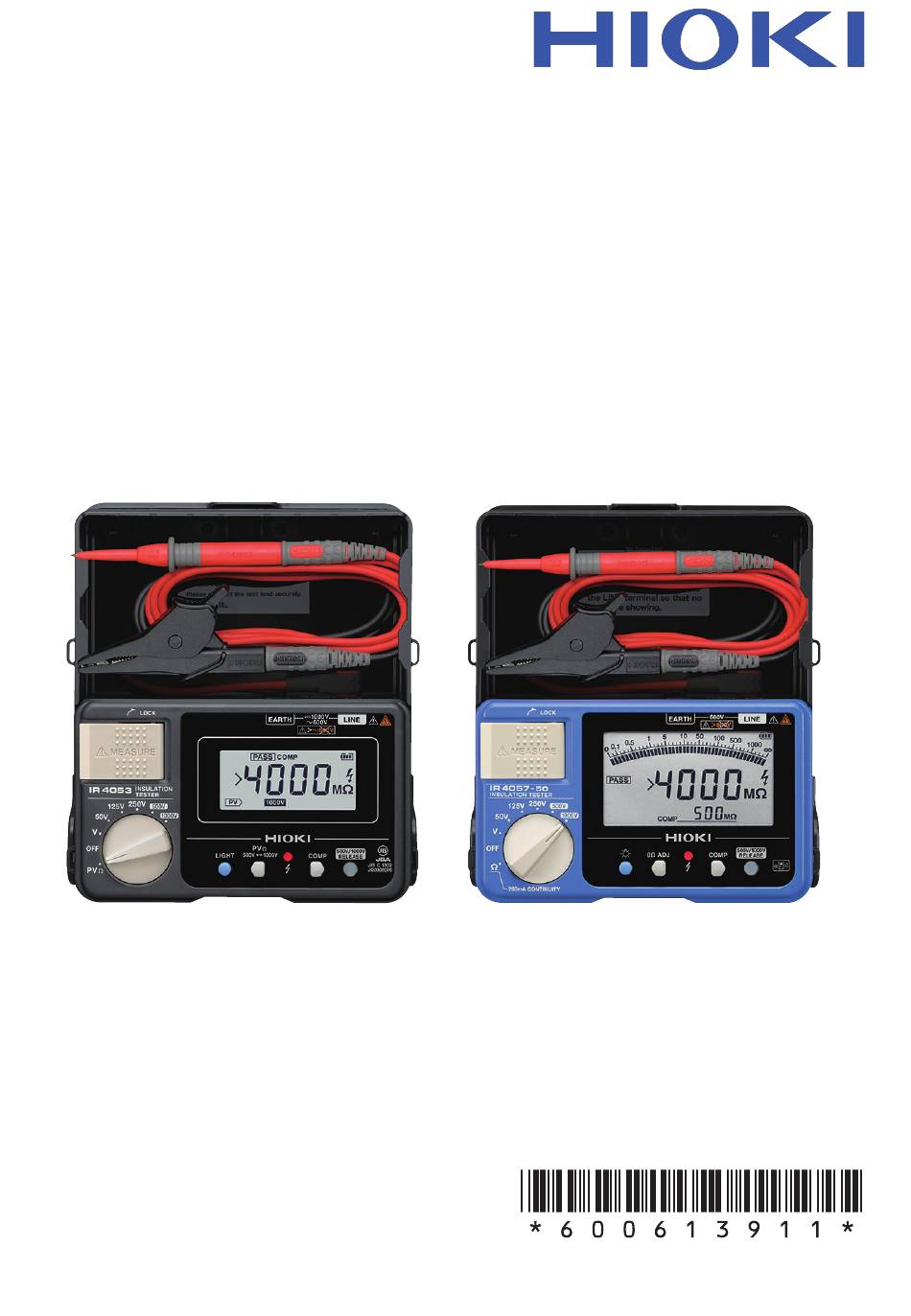

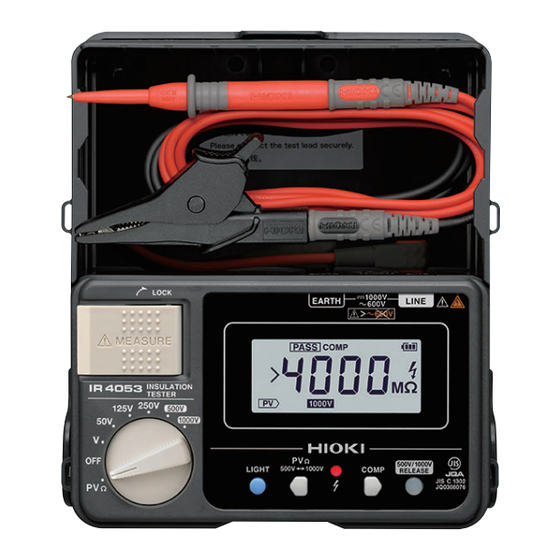

INSULATION TESTER
May 2021 Revised edition 1
IR4057B961-01 21-05H
(IR4052C960-01)
IR4053-10
IR4055-11
IR4056-20
IR4056-21
HIOKI IR4057B961-01
   Instruction Manual
EN
