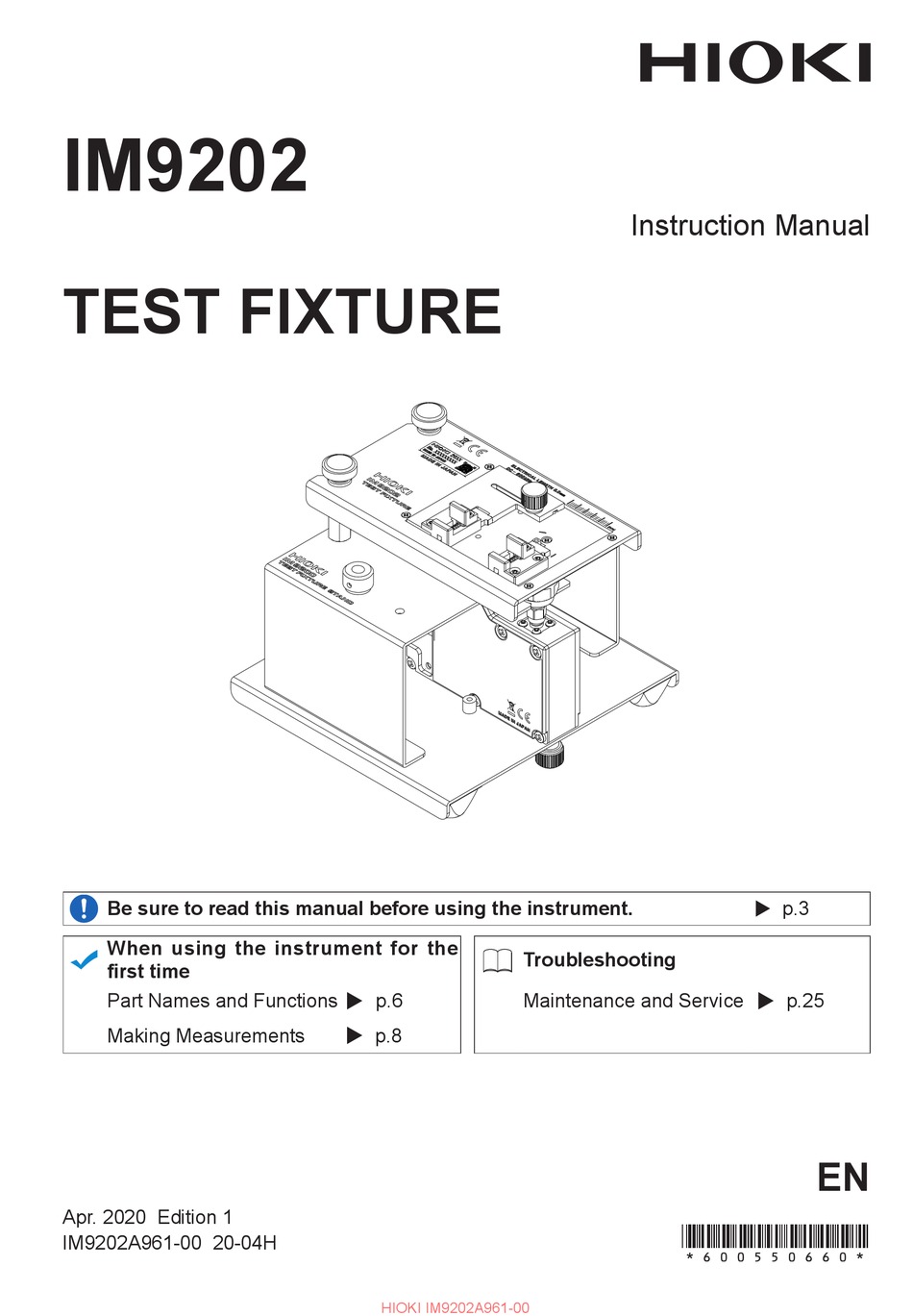

IM9202
TEST FIXTURE
Be sure to read this manual before using the instrument.
When using the instrument for the
first time
Part Names and Functions
Making Measurements
Apr. 2020 Edition 1
IM9202A961-00 20-04H
p.6
p.8
HIOKI IM9202A961-00
Instruction Manual
Troubleshooting
Maintenance and Service
 p.3
p.25
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM9202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hioki IM9202

Summary of Contents for Hioki IM9202

  • Page 1 IM9202 Instruction Manual TEST FIXTURE Be sure to read this manual before using the instrument.  p.3 When using the instrument for the Troubleshooting first time Part Names and Functions Maintenance and Service p.25   Making Measurements  Apr. 2020 Edition 1...
  • Page 2 HIOKI IM9202A961-00...

  • Page 3: Table Of Contents

    Introduction Introduction Thank you for choosing the Hioki IM9202 Test Fixture. To ensure your ability to get the most out of the device over the long term, please read this manual carefully and keep it available for future reference. The device is used by connecting to the impedance analyzer. Before using the impedance analyzer, read the instruction manual of the impedance analyzer carefully.

  • Page 4: Checking Package Contents

    When you open the package, carefully inspect the device to ensure that everything is in good condition, and that no damage occurred during shipping. Carefully check the accessories. If device seems to have been damaged or does not work as specified, contact your authorized Hioki distributor or reseller.

  • Page 5: Safety Information

    Indicates the Waste Electrical and Electronic Equipment Directive (WEEE Directive) in EU member states. Indicates that the product conforms to regulations required by the EU Directive. Other notations Instructs the reader to see below for additional information. (p. ) Indicates the page number to reference. HIOKI IM9202A961-00...

  • Page 6: Operating Precautions

    • To prevent device damage or an electric shock, use only the screws that are originally installed for securing clips or the short plate in place. If you have lost any screws or find that any screws are damaged, please contact your authorized Hioki distributor or reseller.

  • Page 7: Overview

    Overview Overview The device is the test fixture to be used by connecting to the impedance analyzer of Hioki. It performs two-terminal measurement of lead components and SMDs. Measurable DUT size Lead components Axial Lead interval 1 mm to 25 mm...

  • Page 8: Part Names And Functions

    The 9-digit serial number indicates the year (first two digits) and the month of manufacture (next two digits). Do not remove this sticker as the number is important. (12) Knob This knob is used to lock the L-side lead component electrode in place. HIOKI IM9202A961-00...
  • Page 9 The electrode for measurement of SMDs (13) (14) (13) L-side SMD electrode Used when measuring SMDs. (14) Lever This lever causes the L-side SMD electrode to slide back and forth. Short plate (15) (15) Short plate Used when performing short correction. HIOKI IM9202A961-00...

  • Page 10: Making Measurements

    Execute the calibration. calibration. (p. 11) Attach the device to the IM9200 Test Fixture Stand. Attach the device. Attach the device. Device (IM9202) (p. 14) Execute the electrical length correction, short correction, Execute the correction. Execute the correction. and open correction.

  • Page 11: Inspecting The Device Before Use

    If there is any damage to the device, contact your authorized Hioki distributor or reseller for repair. It is recommend to inspect the device prior to use as described below.

  • Page 12: Attaching The Test Head And The Adapter

    Tighten the nut of the 3.5 mm connector by using a torque wrench. Recommended torque: 0.9 N·m Tightening the nut until the handle of the wrench bends slightly 3.5 mm connector nut is sufficient. Do not over tighten. HIOKI IM9202A961-00...

  • Page 13: Calibration

    SHORT Rs: 0 , Ls: 0 H Ω LOAD Rs: 50 Defined To use the IM9905’s LOAD defined value, use the Value Setting Application that came with the IM9905 to configure the impedance analyzer with the defined value. HIOKI IM9202A961-00...
  • Page 14 The convex part of the short calibration kit is connected with the internal conductor. If the calibration kit is rotated without pressing the convex part, the internal conductors of calibration kit and adapter may graze each other, and the calibration kit and adapter may get damaged. HIOKI IM9202A961-00...
  • Page 15 Execute load calibration by using the impedance analyzer. Remove the load calibration kit by turning the nut of the load calibration kit. HIOKI IM9202A961-00...

  • Page 16: Attaching The Device

    Loosen the stand fixing knob. Place the device on the IM9200 Test Fixture Stand. As shown in figure, slide the notch part. Turn the nut of the IM9906 Adapter and connect to the device. Tighten the stand fixing knob. HIOKI IM9202A961-00...

  • Page 17: Electrical Length Correction

    Making Measurements Electrical Length Correction The error, caused by the phase shift occurring between the calibration reference surface and the measurement DUT's connection surface is compensated. Set the electrical length correction to 0 mm in the impedance analyzer. HIOKI IM9202A961-00...

  • Page 18: Short Correction

    However, be sure to use the same correction method when comparing measured values. IMPORTANT Do not scratch the electrode and short plate of the device or touch them directly with your hand. It may affect the measurement accuracy and reproducibility. HIOKI IM9202A961-00...
  • Page 19 Short plate perpendicular orientation. Screw View from beside the plate Screw in correct position Partially tightened screw HIOKI IM9202A961-00...
  • Page 20 When the correction cannot be executed: • Confirm that the IM9906 Adapter is connected properly. • Check that the DC measurement limit value of the impedance analyzer is appropriate. Using a flat-head screwdriver, remove the short plate. HIOKI IM9202A961-00...

  • Page 21: Open Correction

    Slide the L-side lead component electrode to the left until the distance between the edge of the moving plate and the edge of the marker is equal to the DUT width. Lock the L-side lead component electrode in place with the knob. HIOKI IM9202A961-00...
  • Page 22 12.5 mm to 18 mm 18 mm to 23 mm Install the L-side SMD electrode while pressing down on and turning the knob. Pull the lever on the L-side SMD electrode toward you to align the DUT interval with the electrode width. HIOKI IM9202A961-00...
  • Page 23 View from the side with the jig installed If you’re unable to secure electrode position sufficiently, you’ll need to replace the SMD open SMD open correction jig correction jig. Please contact your authorized Hioki distributor or reseller. Start the open correction in the impedance analyzer.

  • Page 24: Starting Measurement

    DUT’s electrodes can lead to increased measurement error by increasing the contact resistance between the electrodes. Adjust the force and contact after assessing how the component in question will be affected by force. HIOKI IM9202A961-00...

  • Page 25: Specifications

    Basic Specifications Connectable measuring IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587 (as of Jan. 2020) instruments Connectable measuring instruments are subject to change. Please check Hioki’s website for the latest information. Connecting part to the 2-terminal structure Lead components: The lead component’s leads are pinched between the device’s electrodes and clips.
  • Page 26 Open capacitance Length Correction 0 mm) Measurement parameter Cp • Neither the L-side electrode nor the H-side clip is present. 1.3 pF ± 0.3 pF (30 MHz) 1.3 pF ± 0.2 pF (100 MHz, 300 MHz, 600 MHz) HIOKI IM9202A961-00...

  • Page 27: Maintenance And Service

    Number of times slid back and forth over base plate Troubleshooting If the device seems to be malfunctioning, contact your authorized Hioki distributor or reseller. Transporting Be sure to follow these precautions: • To avoid damaging the device, store it in the carrying case with the H-side lead component clip and the L-side lead component electrode connected to the base plate and with the electrode locked in place with the knob.
  • Page 28 Maintenance and Service HIOKI IM9202A961-00...
  • Page 29 HIOKI IM9202A961-00...
  • Page 30 HIOKI IM9202A961-00...
  • Page 31 HIOKI IM9202A961-00...
  • Page 32 HIOKI IM9202A961-00...
