Page 1

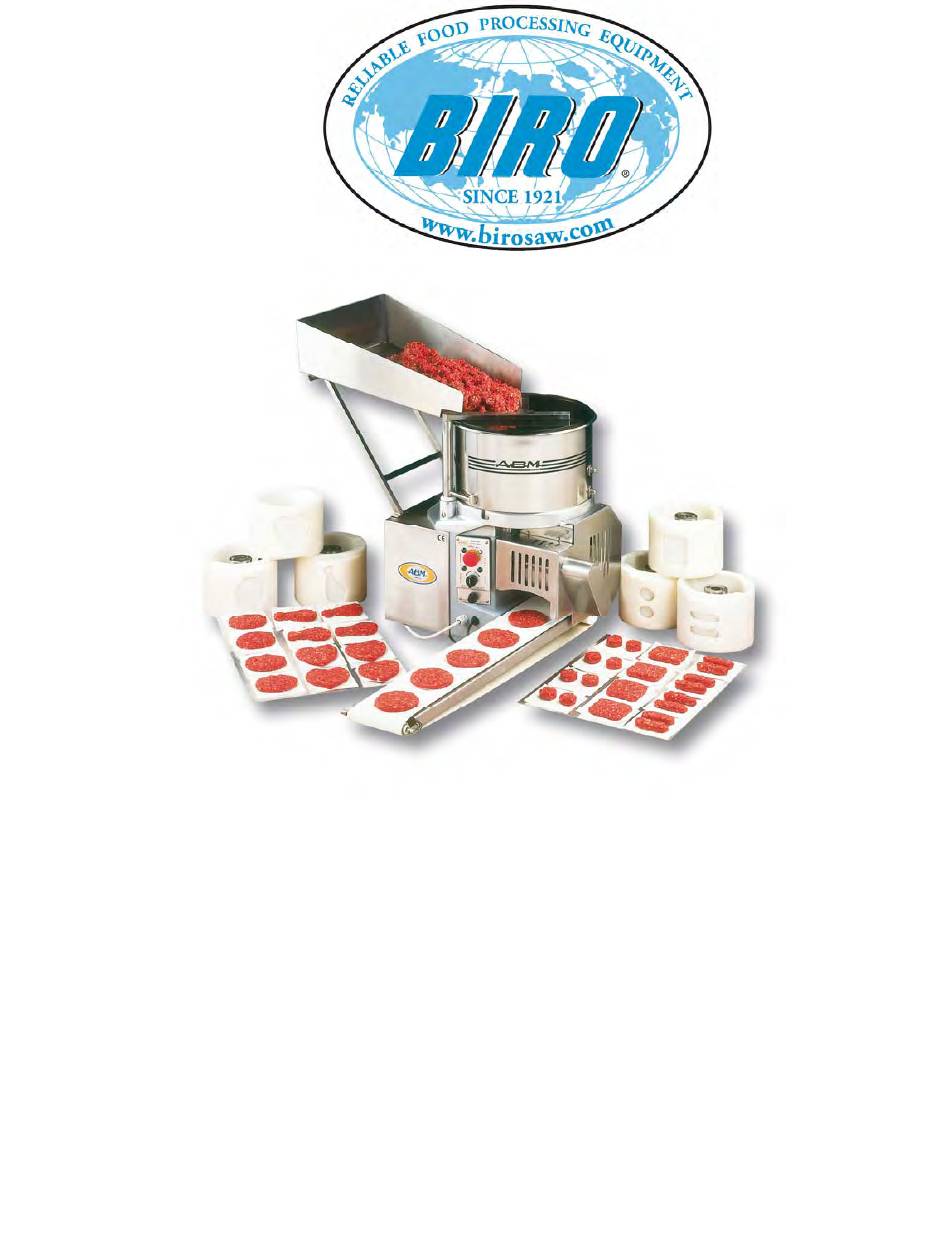

ABM FOOD FORMER MODELS F2000 – F3000 - F4000 - B1200 – HD3000 OPERATION & SERVICE MANUAL & PARTS LIST * IMPORTANT SAFETY NOTICE * This Manual contains important safety instructions which must be strictly followed when using this equipment.
WARRANTY The installation, the starting, and the operating of the machine must be performed by skilled personnel only, who knows the machine. The personnel assigned to the assistance and maintenance must always follow the instructions contained in the manual. The food forming machine must be used by trained personnel only.
GENERAL TECHNICAL FEATURES Description • The ABM Food Forming machine is characterized by: • Compactness and small overall measurements and with special features, able to satisfy the producing requirements of both the great and the small distribution; • Reliability and safety in the operation and the cleaning processes; •...
Safety Devices The Food Forming Machine is equipped with the following protection and safety devices: • Safety micromagnet on the hopper; • Plastic cover servo-assisted by a micromagnet; • Protection and front cover of the removable parts; • Handle of the paddle optimized to avoid crushing and use of keys or particular tools; •...
Overall Measurements F2000/4000 Length (A) 620 Width (B) 500 Height (C) 610 Gross Created Weight – 72 kg. Net Uncrated Weight – 67 kg. Hopper capacity – 20 kg. Optional Conveyor Belt – 1850 x 145 Hopper Power – see identification tag Motor Power –...
Control Panel • Starting switch (automatic/manual) (1) • Red stop button (2) • Machine operating signal lamp (3) • Machine stop signal lamp (4) • Handle for speed regulation (5) (only for model at variable speed) Note – in the Model F4000 the regulation of the speed and the quantity of hamburgers is made by rotating the regulating handle with a quantity of products variable from…...
• During the operation, when lifting the front drum protection, the machine must stop. • To continue, close drum protection, turn the operating switch again. • During the operation, when rotating the hopper cover, the machine must stop. • To continue, close hopper cover, turn the operating switch again.
• Reassemble the papering attachment in the guide pins, until the stop click. • Release the spring using the button placed under the papering attachment (2). • Position the papering attachment, freeing the locking lever (2). • Regulate the center of the paper, turning the centering knob (4).
Loading the Product and Use • Open the cover and load the product in the hopper and close the cover again. • Connect the plug to the socket. • Start the machine: push the automatic switch (1). • Regulate the production speed with the regulation handle (2) (only for model with selector).
CLEANING AND HYGIENE Complete Cleaning • It is advisable to clean the machine daily or if necessary more frequently, in case it was very dirty or after long periods of inactivity. • The cleaning must be carefully made for the parts in contact with the product. •...
• Disassemble the complete conveyor from the guide pin. Disassembly of the Regulation Drum • Turn the stop ring nut anti-clockwise, pull the drum and disassemble it from the control pin. Disassembly of the Scraper • Loosen the stop knob of the scraper shaft. •...
Page 14
HD 3000 PNEUMATIC RICAMBI CONSIGLIATI RECOMMENDED SPARE PARTS 38001 62600 13700-COMPLETE ASSEMBLY 38003 38002 38006 60900 60600 3800A Complete Assembly CODE DESCRIZIONE DESCRIPTION Q.TY F9338001 CILINDRO 1130160170CP ISO 6432 CILINDER - ISO 6432 F9338002 MR BIT 1/8 04 - FILTRO AIR FILTER F9338003 FIL BIT 1/8 20 RMSA...
Page 24
F2000 - F 3000 - F4000 - B1200 - HD3000 PNEUMATIC VERSION 3800A 60900 60600 62600 38001 38006 38002 38003 CODE DESCRIZIONE DESCRIPTION Q.TY F9338001 CILINDRO 1130160170CP ISO 6432 CILINDER - ISO 6432 F9338002 MR BIT 1/8 04 - FILTRO...
Page 29
WIRING DIAGRAM Models F2000 / F3000 / HD3000 Contents: TR = Transformer 0/115/230 – 0/24 = Motor K1 = Motor Contactor LE = Emergency Signal Lamp PE = Emergency Button LT = Tension Signal Lamp MS1= Security Microswitch TS = Signal Transection...
Page 30
WIRING DIAGRAM Model F4000 Contents: TR = Transformer 0/115/230 – 0/24 = Motor K1 = Motor Contactor = Emergency Signal Lamp PE = Emergency Button = Tension Signal Lamp MS1= Security Microswitch = Signal Transection MS2= Security Microswitch Position A = Impulsive Function Selector Functions: S1 Position Ø...
