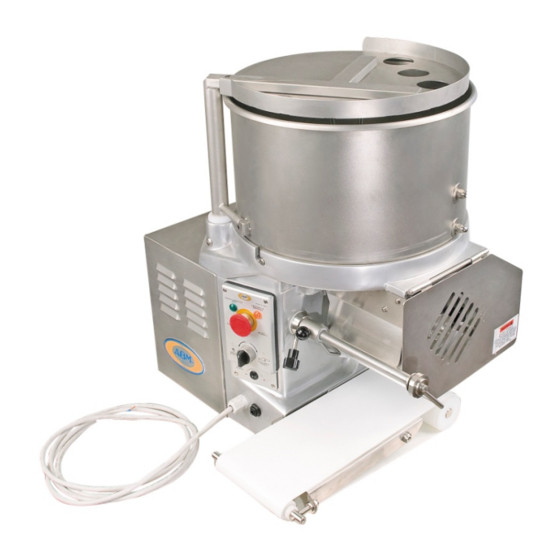

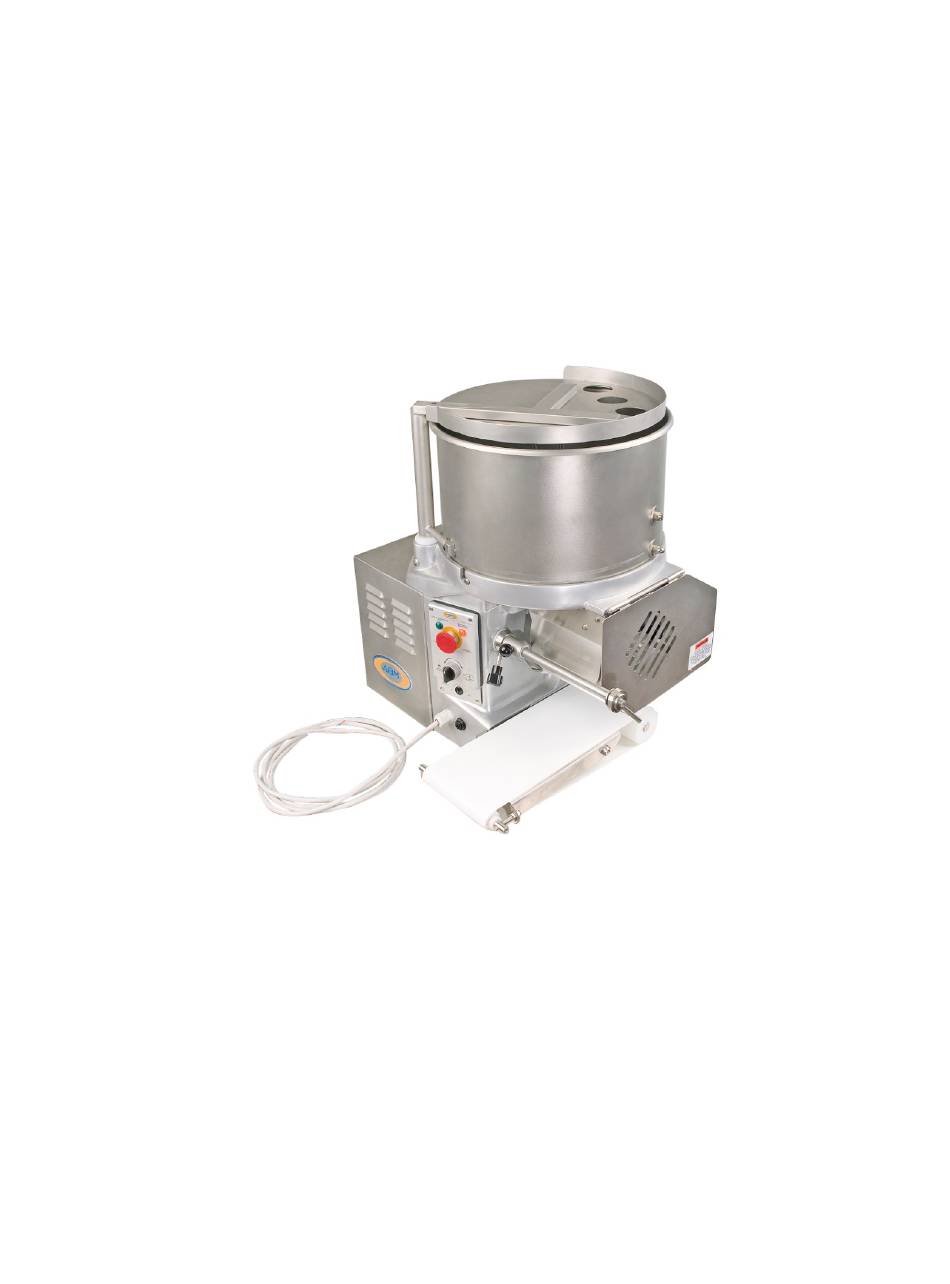

- Page 1 B I R O MODEL F2000/3000/4000/3000HD/B1200 OPERATION & SERVICE MANUAL PARTS LIST GENERAL INSTRUCTIONS * IMPORTANT SAFETY NOTICE * This Manual contains important safety instructions which must be strictly followed when using this equipment. Item No. ###6-09-1...
- Page 2 TABLE OF CONTENTS INTRODUCTION Page Warranty…………………………………………………………. Reliability………………………………………………………… GENERAL TECHNICAL FEATURES Description……………………………………………………….. Main features…………………………………………………….. Safety devices……………………………………………………. Components description…………………………………………. Overall measurements…………………………………………… INSTALLATION Packing check……………………………………………………. Placing the machine……………………………………………… Electrical connections……………………………………………. Control panel…………………………………………………….. Operating test……………………………………………………. UTILITY Loading the automatic paper attachment………………………… Product thickness regulation……………………………………… Loading the product and use………………………………………...
-
Page 3: Warranty
Wiring diagrams…………………………………………………… WARRANTY The installation, the starting and the functioning of the machine must be effected by skilled personnel only, who knows the machine. The personnel assigned to the assistance and maintenance must always follow the instructions contained in the manual. The patty forming machine must be used by trained personnel only. -
Page 4: General Technical Features
Periodically check the main supply wire, in case of breaks or bad functioning, provide for the replacement by skilled personnel. Stop the machine whenever it makes strange noises during the functioning; Always keep the working area clean and dry; ... - Page 5 The moving parts are started by an electronic motor and the movement transmission operates through a chain and mechanism; The hopper, the paddle, the conveyor belt, the drum and the accessories are easily disassembled to effect a regular cleaning. ...
- Page 6 Leading roll Led roll Conveyor belt Footswitch Speed variator for the mod. with current continuous Manual/automatic switch Stop button Feeding signal light Stop signal light Transmission protection crankcase Base Cover shaft Overall Measurements F2000/4000 Length (A) 620 Width (B) 500...
- Page 7 Height (C) 610 Gross Created Weight – 72 kg. Net Uncrated Weight – 67 kg. Hopper capacity – 20 kg. Optional Conveyor Belt – 1850 x 145 Hopper Power – see identification tag Motor Power – see identification tag...
-
Page 8: Installation
INSTALLATION Packing Check At the receipt of the machine, check the package to verify that the machine has not been damaged. The components of the package can be assimilated to the urban solid rubbish. Placing the Machine It is advisable to place the Patty Forming Machine on a stable working table positioned on a height of about 800mm from the ground. - Page 9 Operating Test Before controlling the functionment, if you have not already done, you must assemble the hopper, assemble the conveyor belt, close the cover and the front protection. Connect the footswitch, inserting the control pipe into the bush on the control panel side.
-
Page 10: Cleaning And Hygiene
Position the papering attachment, freeing the locking lever (3). Regulate the center of the paper, turning the centering knob (4). Product Thickness Regulation The machine is regulated in the factory with a medium thickness; to obtain another thickness, follow the instructions indicated below: ... - Page 11 All the cleaning operations of the machine must always be done with the machine not equipped with hopper, taking out the plug from the socket. Disassembly of the Paddle Hold the handle, turn anti-clockwise and lift. To avoid accidents before disassembling, position the paddle away from the hopper pins.
-
Page 12: Maintenance
Whenever there was the necessity of repairs or special maintenance, contact the assistance service or a qualified technician. SPARE PARTS LIST Wiring Diagrams Models F2000 / F3000 / HD3000 Contents: = Transformer 0/115/230 – 0/24 = Motor Contactor = Emergency Button... - Page 13 = Emergency Signal Lamp = Tension Signal Lamp = Signal Transection Position A = Impulsive Function Selector Functions: S1 Position Ø = Stopped Machine Position B = Retentive Function ** Electric Diagram ** L1/MP = Feeding 220 Vac T1/T2 = Start/Stop Board Ø...
- Page 14 RECOMMENDED SPARE PARTS...
- Page 15 HD3000 (drawing)
- Page 16 (3 pages w/drawings)
- Page 17 PNEUMATIC SPARE PARTS...
