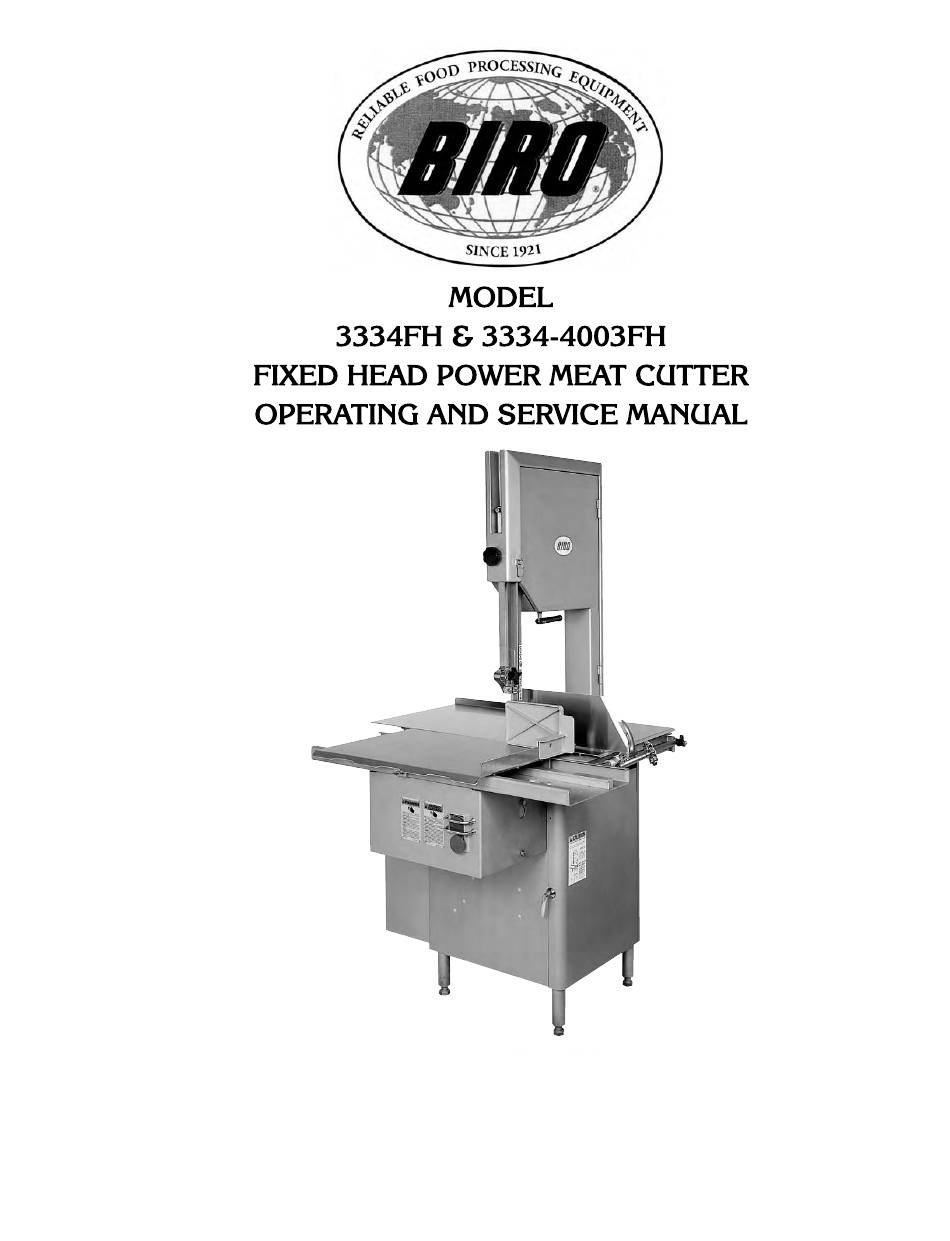

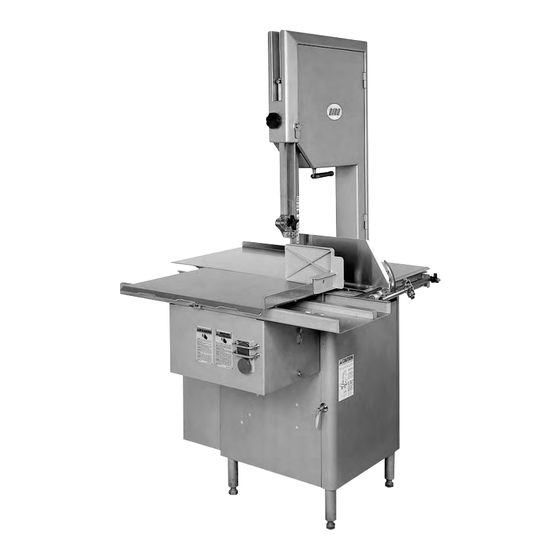

- Page 1 IMPORTANT NOTICE This Manual contains important safety instructions which must be strictly followed when using this equipment. ITEM No. 16313FH-305 No.: 16313FH-305-10-09-10 PPD...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page NOTICE TO OWNERS AND OPERATORS ........1 NOTICE TO OWNERS AND OPERATORS . -
Page 3: Notice To Owners And Operators
Manual. Warnings related to your personal safety are indicated by: Warnings related to possible damage are indicated by: BIRO also has provided a wall chart to be posted near the equipment. If any warning label, wall chart, or Manual becomes misplaced, damaged, or illegible, please contact your nearest Distribu- tor or BIRO directly for a replacement. -
Page 4: Safety Tips
Machine BEFORE Removing Shrouds, Removable Guards, Covers, Doors, Fences or Panels for Cleaning, Servicing or Any Other Reason. NEVER Leave Machine Unattended While Operating. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY BIRO Parts and Accessories Properly Installed. -
Page 5: Installation
USE ONLY BIRO Parts and Accessories Properly Installed. 1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and operation if you have any questions or do not understand anything in this Manual. Contact your local Distributor, or BIRO first. - Page 6 (5) The drive belt is packed loose in machine to prevent deformation, and must be installed on pulleys at time of wiring motor. (6) The BIRO Manufacturing Company is not responsible for permanent wiring, connection or installations. NOTE TO OWNER AND ELECTRICIAN: IF THIS MACHINE IS NOT CORD...
- Page 7 15. Check placement of all warning labels, wall chart and Manual. Machine is ready for trained operators to process product. 16. Contact your local Distributor or BIRO directly if you have any questions or problems with the installation or operation of this machine.
-
Page 8: Warning Labels For Power Cutters
WARNING LABELS FOR BIRO POWER CUTTERS ITEM No. 653PC-E: ALL SAWS ITEM No. 653PC-SP: ALL SAWS 1 ea. Attached to Head Below S/N Plate 1 ea. Attached to Channel Bracket 1 ea. Attached to Channel Bracket H H H NOT TO SCALE H H H ITEM No. -
Page 9: Warning Label Locations On Machine
WARNING LABEL LOCATIONS ON MACHINE ATTACH ON HEAD STRUCTURE BELOW ATTACH TO CHANNEL BRACKET NEXT TO SWITCH BUTTONS MODEL/SERIAL NUMBER TAG ATTACH TO SAW GUARD ON SAW GUIDE BAR P/N 708 “DANGER EXPOSED BLADE” DECAL ATTACH TO HINGED RIGHT BASE DOOR P/N 16716 CAUTION LABEL... -
Page 10: Band Saw Safety Guidelines
ITEM NUMBER 671 WALL CHART “BAND SAW SAFETY GUIDELINES” ATTACH TO WALL IN VICINITY OF MACHINE IN EASY VIEW OF OPERATOR WARNING ONLY PROPERLY TRAINED PERSONNEL SHOULD USE THIS EQUIPMENT This Saw Contains A Sharp Blade. To Reduce Risk of Injury: 1. -
Page 11: Operation
OPERATION SHARP MOVING BAND TYPE SAW BLADE TO AVOID SERIOUS PERSONAL INJURY ONLY Properly Trained Personnel Should Use This Equipment. ALWAYS Read Operating and Parts Manual BEFORE Operating. ALWAYS Keep Hands Clear of Band Type Saw Blade and Other Moving Parts. DO NOT Tamper With, Bypass, Alter, or Modify this Equipment in Any Way or Form. -
Page 12: To Process Product
6. ALWAYS use the Safety End Cut Pusher Plate for smaller products or the last cuts of product. “C” The pusher plate is supplied as standard on all BIRO power cutters. 7. When finished cutting, push stop button. Perform lockout/tag out procedure. -
Page 13: General
NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY GENUINE BIRO Parts and Accessories Properly Installed. A. GENERAL 1. Machine should be generally inspected every time it is cleaned (at least daily) to ensure that it is in good condition and has not been damaged or tampered with. - Page 16 MODEL 3334FH SERIES OPTION: FIXED HEAD & DOOR ASSEMBLY, SS 14P-1 MODEL 3334FH FIXED HEAD OPTION WITH ON-OFF SWITCH LOCATED ON HEAD WELDMENT Part No. Description S16005E-PX Head, fixed with pushbutton control box 800H-FRXN6A7-PX Pushbutton switch 3-pos MOM in & out...
-
Page 19: Operator's Notes
– OPERATOR’S NOTES –... -
Page 20: Parts Diagrams
Item No. Description HHS005S Hex head screw, 8-32 ´ HHS010S Hex head screw, 10-32 ´ HN05S Hex nut 8-32 SS HN35S Hex nut -16 SS S16335XE Upper wheel hinge plate, SS S229 Wheel cleaner arm torsion spring, SS S244 Wheel cleaner arm stud, SS S253 Upper wheel aligning screw, SS S295... - Page 21 Item No. Description Item No. Description A130 Saw cleaner assembly A415D Stationary bar assembly A16132 Steel cleaner assembly, rear HN15S Hex nut -20 SS HHS003S Trimmed hex head screw 8-32 ´ , SS LW10S Lock washer, HHS025S Hex head screw, -20 ´...
- Page 22 A116-22SS AS116-22SS A116-22-COS SAW GUIDE BAR ASSEMBLY Item No. Description A116-22KSS Saw guide bar assem. with lock knob 22" – AS116-22SS stainless A116-22SS Saw guide bar assembly 22" – stainless A116-22-COS Saw guide bar assembly – 22" SS special A211-SS Finger lift assembly, removable –...
- Page 23 STANDARD 3334FH MEAT CARRIAGE & CHANNEL Item No. Description Item No. Description A16155 Meat carriage assembly complete 16155 Meat carriage top & angle only A175S Thumb guard assembly 16155-2A Meat carriage guide FW05S Flat washer, 16155-2B Meat carriage guide spacer,...
- Page 24 OPTIONAL 3334FH EZ FLOW MEAT CARRIAGE & CHANNEL Item No. Description Item No. Description A16155EZ Meat carriage assembly complete – EZ Flow S155EZ-3 Hex stand-off, EZ Flow carriage A175S Thumb guard assembly 16155EZ Meat carriage top & angle only FW05S...
-
Page 25: Left Base Doors - Motor Adjustment
STANDARD 3334-4003FH EZ FLOW MEAT CARRIAGE & CHANNEL ALSO OPTIONAL ON ALL OTHER 3334 Item No. Description Item No. Description A175S Thumb guard assembly S181155AEZ Meat carriage angle – EZ Flow A181155EZ Meat carriage assembly, EZ Flow S18155EZ-1 Carriage top w/weld studs AN15S Acorn nut, S18155EZ... -
Page 26: Left Base Doors - Motor Adjustment
S119A USE WITH Motor Model Mfg. Specifications Doerr XR72927 HP, 220/440-50/60-3 open Doerr R72929 2HP, 220/440-50/60-3 open U.S. Motor G54313 2HP, 220/440-50/60-3 open Item No. Description Doerr 73020 2HP, 550-60-3 open AS415D Stationary bar assembly SS U.S. Motor G57016 2HP, 550-60-3 open HHS025S Hex head screw, -20 ´... -
Page 27: Switch Assemblies And Service Parts
Item No. Description A16226A Green/red switch button assembly w/springs A609AAW-16 Switch assembly, 1 & 3 ph less heater coils H462 Guard for switch toggle H462A Guard assembly for switch toggle H462-1 Trim ferrule, SS HHS010S Hex head screw, 10-32 ´ HHS070S Hex head screw, -16 ´... - Page 28 WATERTIGHT MAGNETIC SWITCH ASSEMBLIES (AEG) INCLUDES MOUNTING BRACKET AND WIRES Item No. Description Item No. Description A22616AE-506 BAEG/PC-PB/C6, 1 A22616AE-526 BAEG/PC-PB/C17, 2HP, 230-60-1 208/220/230-50/60-3 A22616AE-530 BAEG/PC-PB/F2.8, 2HP, 550-60-3 A22616AE-514 BAEG/PC-PB/C8, 2HP, A22616AE-534 BAEG/PC-PB/E6, 3HP, 440/460-60-3 208/220/230-50/60-3 A22616AE-536 BAEG/PC-PB/D8, 3HP, 380/415-50-3 A22616AE-516 BAEG/PC-PB/E4, 1 HP, 440/460-3...
-
Page 36: Lower Removable Wheel Parts Diagram & Installation
Item No. Description Item No. Description A16547 Lower bearing housing assembly without 14746 T-handle lock, removable lower wheel wheel 16251-11 ´ 78AL Pulley, 11.4 ´ alum. A363 Lower bearing cup/cone assembly 16251-90 ´ 78AL Pulley, 9 ´ , al. HN25 Hex nut -16, carbon-plated 16517... -
Page 37: Operator's Signature Page
LOWER REMOVABLE WHEEL INSTALLATION AND REMOVAL INSTRUCTIONS MODEL 1433 AND MODEL 3334SS ALWAYS Turn Off, Unplug From Power Source and Perform Lockout/Tagout Procedure to the Machine BEFORE Cleaning or Servicing. Follow disassembly procedures in the Cleaning Section of the Operating and Service Manual. Removal of the Lower Wheel will be last procedure. -
Page 38: Operator's Notes
— OPERATOR'S NOTES —... -
Page 39: Cleaning Procedure
Electrical Components. ALWAYS Thoroughly Clean Equipment at Least Daily. CLEANING THE BIRO POWER CUTTER: Disconnect electrical power to the machine before cleaning. Parts to be removed have been made accessible and can be removed without tools. Notice in the drawing below that all parts are numbered. Each part should be removed for cleaning in the numbered sequence shown. -
Page 40: Parts List/Ordering
Hex head screw, -16 ´ ¾, SS S71-3 Upper wheel hinge bracket, fixed head HHS070S Hex head screw, -16 ´ 1, SS VTS7181 BIRO logo oval decal – NSS HHS075S Hex head screw, -16 ´ 1 , SS 112-212 Waved washer, HHS083S... -
Page 41: Parts Assemblies List/Ordering
PART NUMBERS AND DESCRIPTIONS (Cont.) Item No. Description Item No. Description 16155-13 Carriage stop angle SS Up shaft castellated lock nut 16155-2A Meat carriage guide Up shaft castld lock nut washer 16155-2B Meat carriage guide spacer 242R Base door lock, right 16155-2C Meat carriage guide spacer Upper shaft... -
Page 42: Wearable Saw Parts List
WEARABLE SAW PARTS THAT WILL FIT BIRO POWER CUTTERS MODELS 11-22-1433-33-34-3334-44-4436-55 — EXCEPT WHERE NOTED OTHERWISE — CONTACT YOUR NEAREST BIRO AUTHORIZED DISTRIBUTOR OR CONTACT BIRO MANUFACTURING Ph.: 419-798-4451 E.Mail: service@birosaw.com... -
Page 43: Operator's Signature Page
OPERATOR’S SIGNATURE PAGE WARNING READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE SIGNING BELOW MY SIGNATURE ATTESTS THAT I HAVE COMPLETELY READ AND UNDERSTAND THIS MANUAL. I REALIZE THAT THIS MACHINE, IF OPERATED CARELESSLY, CAN CAUSE SERIOUS INJURY TO MYSELF AND OTHERS. SUPERVISOR’S NAME (PRINT) SIGNATURE... -
Page 44: Limited Warranty
The warranty card must be returned to The Biro Manufacturing Com- pany for proper registration. If no warranty card is returned to BIRO, the warranty period will begin from the date the machine was originally shipped from the factory.
