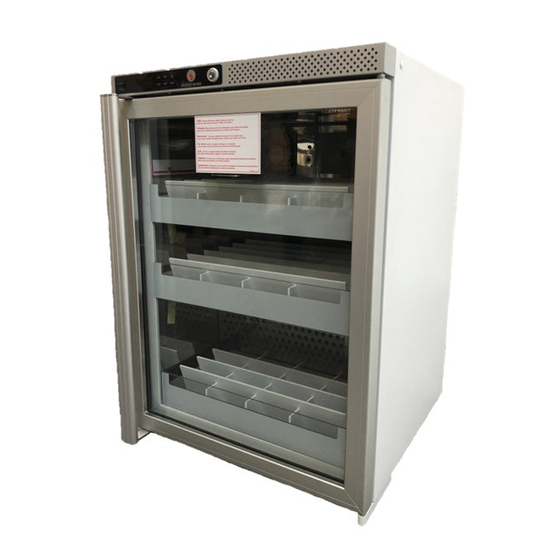

Vestfrost BBR150 User Manual

Biomedical refrigerators
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL - EN
- BBR150 - BBR290
models
- AKG/s 157 - AKG/s 427 - AKG/s 337 - AKG/s 397
models
B I O M E D I C A L S O L U T I O N S
REFRIGERATORS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBR150 and is the answer not in the manual?

Questions and answers

Related Manuals for Vestfrost BBR150

Summary of Contents for Vestfrost BBR150

  • Page 1 USER MANUAL - EN - BBR150 - BBR290 models - AKG/s 157 - AKG/s 427 - AKG/s 337 - AKG/s 397 models B I O M E D I C A L S O L U T I O N S...

  • Page 3: Table Of Contents

    HOW TO PLACE BLOOD BAGS � � � � � � � � � � � � � � � � � � � � � � � � � � 26 Only BBR150/290 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26 CONTROLLER- OPERATION AND FUNCTION �...

  • Page 4: Warning

    Vestfrostsolutions.com WARNING As the appliance contains a flammable refrigerant, it is essential to ensure that the refrigerant pipes are not damaged. The quantity and type of the refrigerant used in your appliance is indicated on the rating plate. Standard EN378 specifies that the room in which you install your appliance must have a volume of 1m³...
  • Page 5 Vestfrost Solutions given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. WARNING: Children shall not play with the appliance. WARNING: Cleaning and user maintenance shall not be made by children without supervision.
  • Page 6 Vestfrostsolutions.com WARNING: The appliance must be connected to power minimum 12 hours before using it for storage of medicine. Always keep the keys in a separate place and out of reach of ● children. Do not step on the lower panel to reach medicine in the top of ●...

  • Page 7: Product Description

    AKG/S 337 AKG/S 397 We recommend that you read this user manual before using the unit for the first time. Vestfrost Solutions does not guarantee safe operation if the unit is used for anything other than its intended use. Contents of the user manual can be subject to change without notice.

  • Page 8: Electrical Connection

    The rating plate provides various technical information as well as type and serial number. Product number Intended use Vestfrost biomedical refrigerators are precision temperature controlled storage units offering high reliability and performance. The units provide effective cold temperature storage for sensitive and valuable items. The products are designed for the following operating ranges:...

  • Page 9: Refrigerator Components

    Vestfrost Solutions REFRIGERATOR COMPONENTS Front & internal view BBR150 BBR290 1. Display – With integrated keyboard 2. Light – Only when door is opened 3. Door switch 4. Stacking mark 5. Fan 6. Drawer 7 . Door handle 8. Adjustable feet (only on some models) 9.
  • Page 10 Vestfrostsolutions.com AKG/S 397 AKG/S 337 AKG/S157 AKG/S337/397 AKG/S 427 1. Display – With integrated keyboard 2. Light – Only when door is opened 3. Door switch 4. Stacking mark 5. Fan 6. Drawer/Shelf 7 . Door handle 8. Adjustable feet (Only available with DIN 58345 kit) 9.

  • Page 11: Backview

    Vestfrost Solutions Backview AKG/S157/BBR150 AKG/S 337/397 AKG/S 427/BBR290 1. Ventilation guards. See chapter Installation and Start-up. 2. Porthole – Hole for external sensor. See chapter Installation and Start-up 3. Voltage free contact. See chapter Remote alarm function for more information.

  • Page 12: Sensor Placement

    Vestfrostsolutions.com Sensor placement BBR 290 BBR 150 1. EVP Defrost sensor 2. TL1 Logging sensor 3. TR3 Temperatur sensor 4. S1 Safety thermostat sensor 5. TL2 Logging sensor...
  • Page 13 Vestfrost Solutions AKG/S 397 AKG/S 337 AKG/S 157 AKG/S337/397 AKG/S 427 1. EVP Defrost sensor 2. TL1 Logging sensor 3. TR3 Temperatur sensor 4. S1 Safety thermostat sensor (DIN 58345 kit)

  • Page 14: Display Components

    Vestfrostsolutions.com Display components BBR290, AKG-S427 Operation – main view: 1. The temperature in the appliance (measured by the TR3 probe) 2. Time and date 3. ALARM icon. Flashing by alarm turned on when there has been an alarm, but the alarm is no longer active.
  • Page 15 Vestfrost Solutions BBR150, AKG-S157/337/397 Leds Each LED function is described in the following table. MODE Function Compressor enabled Flashing Anti-short cycle delay enabled Defrost enabled Flashing Drip time in progress Fan enabled Flashing Fan delay after defrost in progress An alarm is occurring...

  • Page 16: Installation And Start-Up

    The guards function is to secure an absolute minimum of ventilation, if the appliance is pushed too close up against a wall. Steps: BBR150, AKG/S157 1. Mount the ventilation guards in the holes behind the device. Note! (Some models have pre mounted ventilations...

  • Page 17: Battery Backup

    Vestfrost Solutions Battery backup The appliance is equipped with a battery back up system, which supplies the controller with power at power failure. The back up system duration is 48 hours. Steps: Push the orange button to switch BBR 150, AKG/S157 on the battery backup system.

  • Page 18: Location And Ventiltation

    1. A location not exposed to direct sunlight 2. A location where the unit is not exposed to rain BBR150, AKG/S157 3. In a dry, well ventilated room according to the described in Intended 4. Away from sources of heat 5.

  • Page 19: Levelling The Appliance

    Vestfrost Solutions Levelling the appliance Make sure the appliance is level. It can be levelled by rotating the adjustable feet of the appliance. Steps: For some models: Take the ‘’antislip base’’ from the plastic bag and mount it on the foot.

  • Page 20: Probe Bottle

    Vestfrostsolutions.com Probe bottle Only available with DIN 58345 kit and BBR 150/290 To locate the probe bottle, see chapter Refrigerator component. It is important to prepare the probe bottle before use. Steps: 1. The probe bottle is placed like shown in top and bottom.

  • Page 21: Porthole

    Vestfrost Solutions Porthole Portholes are used to pass the temperature probe in the chamber. Steps: See chapter ´´Refrigerator components´´ for placement of porthole on your device. 2. The rubber plug varies from the models. Please see the illustrations to the left to find your type of porthole.
  • Page 22 Vestfrostsolutions.com Porthole type 2: 1. Take out the two rubber plugs. 2. Place your sensor wire in the plug. 3. Press the two plugs tight into the porthole Use the cable tie from the helping plastic bag to mount your sensor. NOTE: Use the cable tie to mount your sensor.

  • Page 23: Remote Alarm Function

    Vestfrost Solutions Remote alarm function Your device is equipped with a remote alarm connection to send alarm signals to a building management system, a monitoring unit, visual or acoustical warning device etc. The alarm output is managed freely by the Alarm built in controller of the unit.

  • Page 24: Interior Fitting

    Vestfrostsolutions.com INTERIOR FITTING Max� 16 kg Max� 16 kg Max� 36 kg...
  • Page 25 Vestfrost Solutions Max� 36 kg Max� 36 kg Max� 10 kg...

  • Page 26: How To Place Blood Bags

    Vestfrostsolutions.com HOW TO PLACE BLOOD BAGS Only BBR150/290 Top and middle drawer capacity 24 blood bags The bottom drawer holds 16 bags placed 4 x 4. In the top and middle drawer the bags are placed 6 x4 (max. 450ml) per drawer.

  • Page 27: Controller- Operation And Function

    Vestfrost Solutions CONTROLLER- OPERATION AND FUNCTION Models BBR290, AKG/S427 Start up: When the appliance is connected to the power supply, the keyboard will automatically start up. The start up view on the keyboard will show the different software installed on the control- ler of the appliance.
  • Page 28 Vestfrostsolutions.com Service menu: From the main view push the SERVICE key and the SERVICE menu is entered. See below picture: PROBES: Enter the probes, to see the measured tem- peratures. 1-4 probes is availa ble depending on model. PARAMETERS: Enter the setting of the parameters. Please note that changes made to the parameters should only be made of a technician.
  • Page 29 Vestfrost Solutions How to change language: 1. Enter the SERVICE menu 2. Select LANGUAGE sub-menu 3. Push the ENTER key and the LANGUAG menu is entered. 4. Push the SET key and then use the UP and DOWN keys to select the language and then the SET key to confirm it.
  • Page 30 Vestfrostsolutions.com NOTE: THE KEY: IS USED TO STOP AND START LOGGING. Logged data will have this layout: Where TR3, EVP , TL1, TL2 = Value of probes. With probe failure or absence:” - “ symbol is displayed. Please note that 1-4 probes are available depending on model.
  • Page 31 Vestfrost Solutions How to enter the Graph: 1. Enter the DATA menu 2. Select GRAPH sub-menu 3. Push the ENTER key and the GRAPH menuis entered. 4. By UP and DOWN keys chose the probe that has to be displayed.
  • Page 32 Vestfrostsolutions.com “P1” Regulating probe TR3 failure Alarm output ON; Compressor output accord- ing to parameters Con and CoF “P2” EVP Probe Failure Alarm output ON; Other outputs unchanged “P3” Logging probe TL1 failure Alarm output ON; Other outputs unchanged “P4” Logging probe TL2 failure Alarm output ON;...

  • Page 33: Models Bbr150, Akg/S 157-337-397

    How to export data and alarms to USB How to: Choose the right Set point To ensure optimal operation of the BBR150, 1. Insert the USB key the correct set point has to be chosen. De- 2. Push the DATA key for more that 3 sec.
  • Page 34 Vestfrostsolutions.com Active alarms Message Cause ”PF1” Regulating probe 3 failure ”PF2” Probe failure ”PF3” Logging probe 2 failure Logging probe 1 failure ”PF4” TR3 High Alarm ”HA1” TR3 Low Alarm ”LA1” ”HA3” High temperature alarm probe 2 ”LA3” Low temperature alarm probe 2 ”HA4”...

  • Page 35: Fault Finding

    Vestfrost Solutions FAULT FINDING Fault Possible cause Remedy Screen of keybord is not Power failure; the fuse is blown; Check that power is connec- lit. the appliance is not plugged in ted. Reset the fuse. correctly, the power is cut.

  • Page 36: Maintenance

    Vestfrostsolutions.com MAINTENANCE Frequency TASK Description Quar- Annu- terly ally Years ned- dede The compressor 1. Unplug unit from power supply. compartment and the 2. Use a vacuum cleaner to remove condenser must be kept dust and dirt. free of dust and dirt. Refilling of mixture in 1.

  • Page 37: General Information

    Vestfrost Solutions GENERAL INFORMATION Warranty, spare parts and service Warranty disclaimer Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient main- tenance, incorrect building, installation or mains connection. Fire, accident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations.

  • Page 38: Disposal

    Vestfrostsolutions.com DISPOSAL Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your nation- al legislation and the Directives 2012/96/EU and 2006/66/EC.
  • Page 40 Page 1 of 1 Revision date: 11-03-2020 Drawing no.: 8120186-0A version www.vestfrostsolutions.com info@vestfrostsolutions.com...
