Summary of Contents for IKUSI ONE Compact

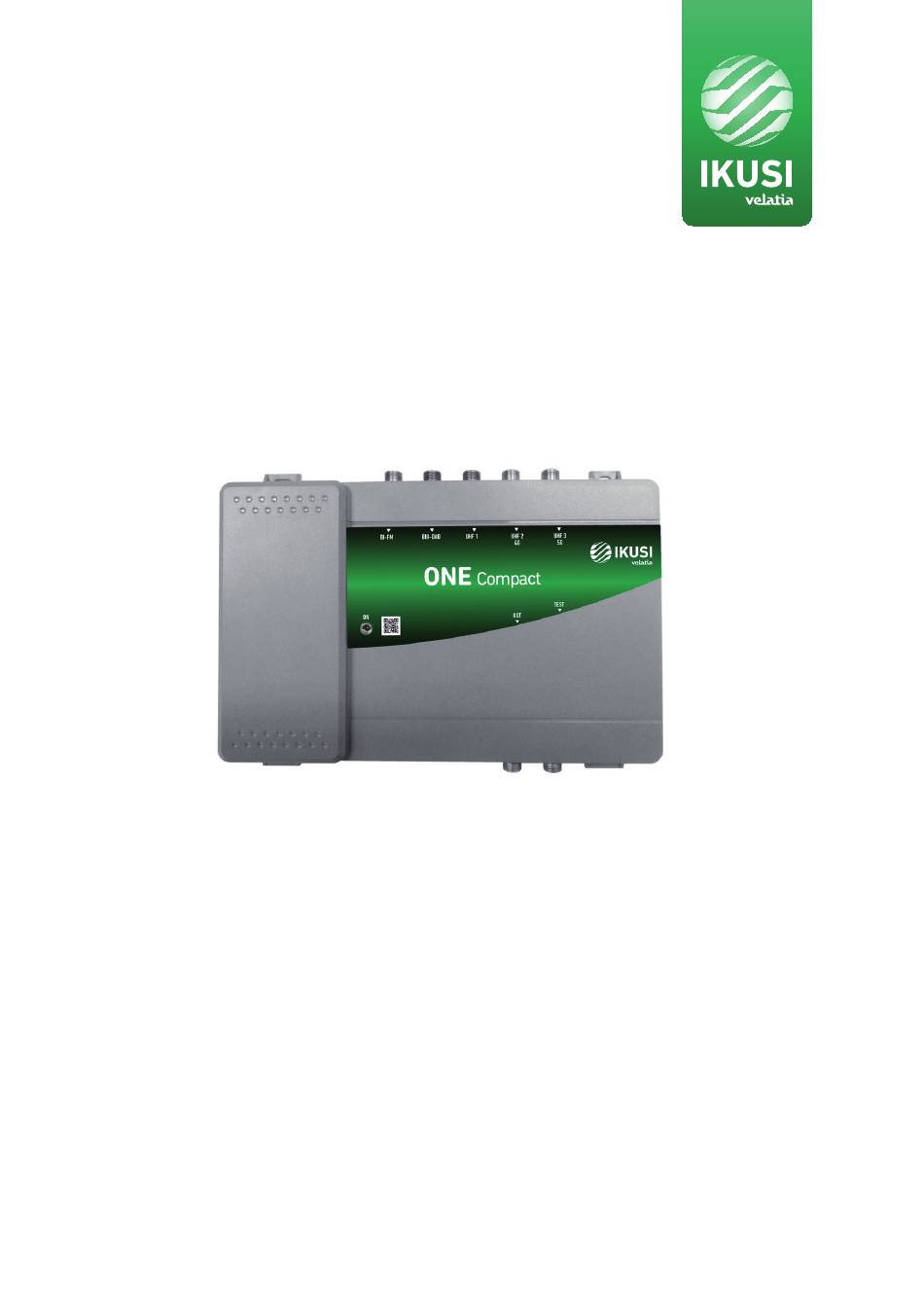

- Page 1 Configuration and Setting guide ONE Compact REF. 2870 ONE Compact_v1.1.7...
-
Page 2: Table Of Contents
USER’S GUIDE FOR THE APPLICATION ......................6 3.1 Requirements ........................6 3.2 Connect your Android device to the ONE Compact ............6 3.3 Programme the ONE Compact using your android device ..........7 3.3.1 Configuration of the filters (Add/delete/Edit channel) ......7 3.3.2 Output adjustments (Output level/Slope) .......... -
Page 3: Introduction
Following this, it explains how to connect it to an android device and all the configuration options are presented. Finally, the different channels with which the ONE Compact can function are shown. For a correct use and installation of the amplifier unit, please read the manuals included in the box. -
Page 4: Recommendations Regarding The Installation Environment
Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 1.2 Recommendations regarding the installation environment The equipment must only be used in indoor environments. Do not plug in the equipment in damp rooms. Do not turn the equipment on immediately after moving it from a cold place to one where there is a high temperature. -
Page 5: Main Characteristics

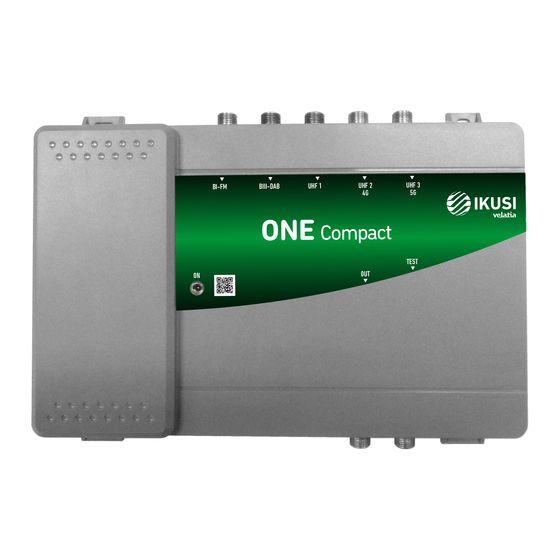

ONE Compact_v1.1.7 1.3.2 Main characteristics ONE Compact is a programmable unit that filters, combines, converts, equalises and amplifies television signals received by an aerial. Suitable for single homes or apartment blocks, it is the perfect solution for managing signals of different frequencies and amplitudes. -
Page 6: User's Guide For The Application
• Android 5.0 or higher is necessary • OTG cable • ONE Compact Unit 3.2 Connect your Android device to the ONE Compact Unit Connect your Android device to the unit using the OTG cable. Open the “ONE Compact” application BIII/DAB BI-FM BIII-DAB... -
Page 7: Programme The One Compact Using Your Android Device
3.3 Programme the ONE Compact using your android device 3.3.1 Configuration of the filters (Add/Delete/Edit channel) When the user connects their device to the ONE Compact, the application will check and synchronise with the device after the connection has been made. This will take approximately 3 seconds. - Page 8 Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 • Add a channel Press the + button to add a new channel Select the input aerial Select the input channel Select the output channel Press the button •...
- Page 9 Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 • Edit a channel Press on the channel that has been configured and it may be edited. NOTE A specific aerial input will block part of the band when a channel is added. In the following example, a BIII channel is blocked on the UHF band.
-
Page 10: Output Adjustments (Output Level/Slope)
Recommendation: Turn on the pre-amplifier only when the input signal level is too low (below 60 dBμV). Users may consult the automatic power level measurement of the input signal when adding a channel on the ONE Compact. NOTE If the target channel’s signal level is low, but other channels on the same input have a high level, these could be saturating the pre-amplifier and causing bad signal quality. - Page 11 Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 Once the type of update has been chosen, look for the *.bin file and press button NOTE If the SW update is needed, the software package must be placed in the “Download” folder of your android device as shown below.
- Page 12 Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 • Loading the configuration To load the previously saved configuration, press the button for “Download configuration” A warning message will be shown indicating that the unit’s current configuration will be deleted and the new configuration will be applied.
-
Page 13: System Information
Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 When this operation is applied, a message indicating this will be shown. 3.3.4. System information This part shows the unit’s information and version. In the Country selection, choose the country or region where you are currently located, the unit will load the corresponding channels according to this. -
Page 14: List Of Channels And Frequencies
Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 4. LIST OF CHANNELS AND FREQUENCIES 4.1 Europe Frequency Frequency Channel Channel (MHz) (MHz) 177.5 184.5 191.5 198.5 205.5 212.5 219.5 226.5... -
Page 15: Australia
Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 4.2 Australia Frequency Frequency Channel Channel (MHz) (MHz) 177.5 648.5 184.5 655.5 191.5 662.5 198.5 669.5 205.5 676.5 212.5 683.5 219.5 690.5 226.5 697.5 529.5 704.5 536.5 711.5 543.5 718.5 550.5 725.5 557.5... -
Page 16: New Zealand
Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 4.3 New Zealand Frequency Frequency Channel Channel (MHz) (MHz) -
Page 17: Mexico
Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 4.4 Mexico Frequency Frequency Channel Channel (MHz) (MHz) -
Page 18: Brazil
Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 4.5 Brazil Frequency Frequency Channel Channel (MHz) (MHz) 177.143 623.143 183.143 629.143 189.143 635.143 195.143 641.143 201.143 647.143 207.143 653.143 213.143 659.143 473.143 665.143 479.143 671.143 485.143 677.143 491.143 683.143 497.143 689.143 503.143... -
Page 19: Thailand
Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 4.6 Thailand Frequency Frequency Channel Channel (MHz) (MHz) 177.5 184.5 191.5 198.5 205.5 212.5 219.5 226.5... -
Page 20: Equipment Recycling
Configuration and Setting guide ONE Compact ONE Compact_v1.1.7 5. EQUIPMENT RECYCLING RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable in the European Union and in European countries with selective waste collection systems.) This symbol on your equipment or its packaging indicates that this product cannot be treated as general domestic waste and must be handed in at the corresponding point of collection for electric and electronic equipment.
