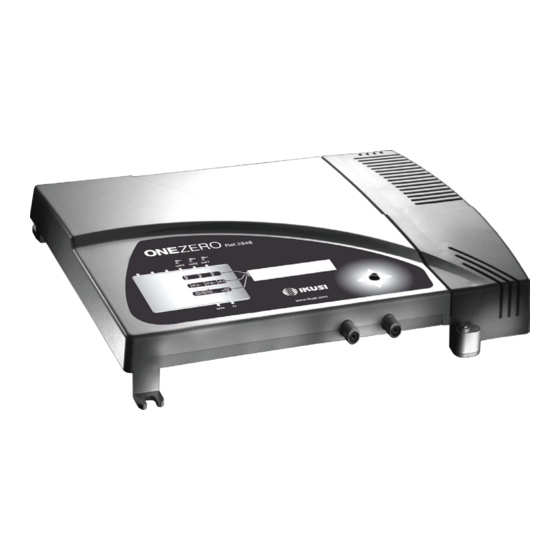

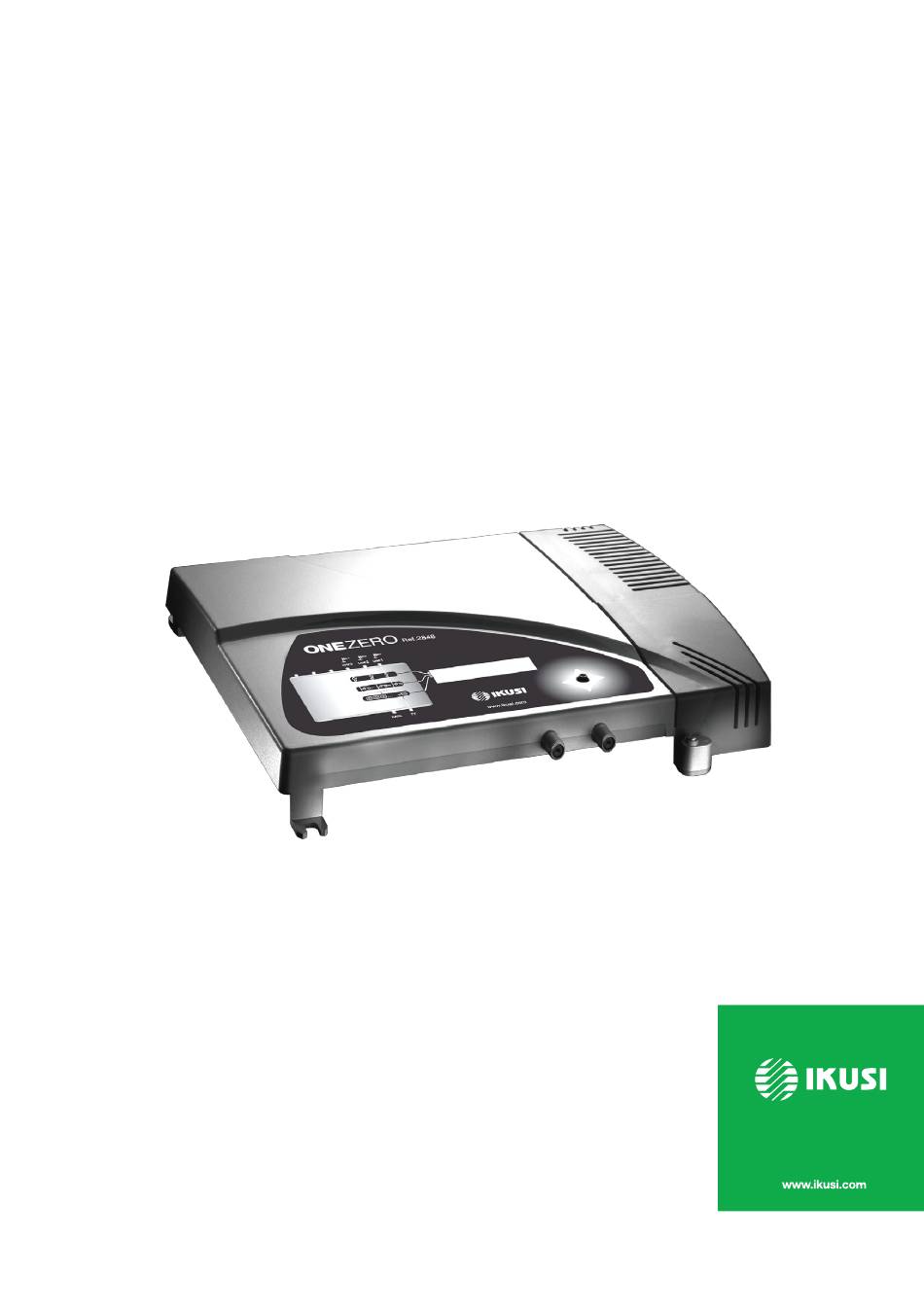

- Page 1 User manual ZERO REF. 2848 Programmable terrestrial filtering header...
-
Page 3: Table Of Contents
Main features General use of the unit Unit installation and configuration Installation Power connection Fast menu guide Language selection Manual setting Advanced settings Self-installation Maintenance Unit care Troubleshooting Technical specifications ONE ZERO Model (FFP-110) Technical appendix Warranty Unit recycling CE Certificate... -
Page 4: General Safety Instructions
General safety instructions Read all of this user manual carefully before plugging in the unit. Always have these instructions to hand during installation. Follow all of the instructions and safety notices regarding unit handling. Types of notices The meaning of the safety notices used in this manual are described below. DANGER OF DEATH OR INJURY This safety notice indicates a possible danger for the life and health of people. -
Page 5: Basic Safety Instructions
General safety instructions/Basic safety instructions Basic safety instructions EN EN DANGER OF DEATH OR INJURY Do not install the unit during an electrical storm. This could lead to electro- static discharge from lightning. DANGER Do not open the unit. There is a risk of electrostatic discharge. RISK OF DAMAGE TO THE UNIT The unit must be appropriately ventilated. -
Page 6: Introduction
The ONE ZERO model has 10 tuneable UHF filters that can process between 1 and 5 chan- nels each. Individual adjustment of each frequency filter, number of channels and automatic gain control allows for level equalisation of selected channels. -
Page 7: General Use Of The Unit
Introduction/General use of the unit Reprogrammable as many times as required. 10 tuneable UHF filters that can each process between 1 and 5 channels. Signal processing: UHF inputs with low noise figure (< 6 dB). Automatic signal level equalisation. Automatic gain control. Extra functions: Internal configuration cloning with transferral between units. - Page 8 Introduction/General use of the unit Vertical button movement In the menus and submenus, move the button up or down to browse upwards and downwards position by position. In the settings, move the button up or down to modify values position by position.
-
Page 9: Unit Installation And Configuration
Unit installation and configuration Only the LCD screen and the control button are required to configure the unit. Follow the steps below to install the unit and configure the different parameters. Installation RISK OF DAMAGE TO THE UNIT Mechanical handling of the unit while it is switched on may lead to it being ATTENTION damaged. -
Page 10: Fast Menu Guide
Unit installation and configuration/Fast menu guide Fast menu guide Language selection Manual setting Advanced settings Self-installation Filter allocation to aerials (7-0-3) (9-0-1) (10-0-0) (2-5-3) (2-7-1) Mast-head amplifier power supply Aerial filter setting Input preamps Lock Configuration Unit Restore set- cloning information tings... -
Page 11: Language Selection
Unit installation and configuration/Language selection Language selection NOTE Over the following pages, the field locating and selection method is primarily indicated by the “vertical button movement” and “press button” icons. However, horizontal button movement can be used to locate and select fields, as indicated General use of the unit. - Page 12 Unit installation and configuration/Manual setting For two aerials: Configuration (9 – 0 – 1) Configuration (7 – 0 – 3) For three aerials: Configuration (2 – 5 – 3) Configuration (2 – 7 – 1) Mast-head amplifier power configuration NOTE Only where a mast-head amplifier is fitted to the aerial.
-
Page 13: Advanced Settings
Unit installation and configuration/Advanced settings Gain configuration: NOTE If AUT is selected, the unit adjusts the gain automatically and completes gain configuration for the filter selected. If M is selected, you adjust the gain manually. Locate and select the gain configuration mode AUT / M. - Page 14 Unit installation and configuration/Advanced settings On the unit sending the information: locate and select MASTER ON, SLAVE OFF. NOTE The time waited for cloning to be run is 11 seconds. Where cloning cannot be started, the unit returns to the higher menu. Unit locking NOTE The lock is enabled when the unit is re-connected.
-
Page 15: Self-Installation
Unit installation and configuration/Self-installation Self-installation NOTE The unit automatically configures the optimum operating frequency and gain of the UHF filters. The unit does not automatically configure the output level of general gains. In the main menu, locate and select AUTOINSTALL. If NO is selected: you will return to the main menu. -
Page 16: Maintenance
Maintenance Unit care HANDLING THE INSIDE OF THE UNIT IS FORBIDDEN Do not dismantle or try to repair the unit, its accessories or its components. This will render the warranty null and void. Do not use the power cable if it is damaged. To disconnect the power cable, pull carefully on the plug and never on the cable. -
Page 17: One Zero Model (Ffp-110)
Technical specifications ONE ZERO Model (FFP-110) UHF1 UHF2 UHF3 Inputs Band width 470-862 Input configuration Number of programmable UHF filters per input Gain Gain adjustment 30 adjustable + 20 step Noise figure <6 Optimum input margin dBµV 50-80 70-100 Return losses >10... -
Page 18: Technical Appendix
Technical appendix RF output level reduction table in Broadband Amplification TERRESTRIAL TV BROADBAND AMPLIFIERS The RF output levels specified in the manual for an IMD3 intermodulation distance of -60dB according to DIN 45004B, are ap- plicable when 2 analogue TV channels are amplified. If more than 2 channels are amplified, these levels should be reduced as indicated in the table below:: Number of channels (n) -
Page 19: Warranty
During the warranty period, IKUSI is responsible for any faults arising due to material or manufacturing defects and shall repair the receiver or replace it for another corresponding to the state of technology at that time. -
Page 20: Unit Recycling
Unit recycling RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable in the European Union and in European countries with selective waste collection systems.) This symbol on your unit or its packaging indicates that this product cannot be treated as general domestic waste and must be handed in at the corresponding point of collection for electric and electronic equipment. -
Page 21: Ce Certificate
CE Certificate By reproducing the CE marking, IKUSI guarantees unit compliance with the corresponding harmonised standards. EC-Declaration of Conformity marking We, Manufacturer IKUSI, Angel Iglesias, S.A. Paseo Miramón, 170 E-20009 San Sebastián, Spain declare that the product Programmable Filters Equipment... - Page 22 Ángel Iglesias, S.A. Paseo Miramón, 170 20009 San Sebastián, Spain Tel. +34 943 44 88 00 Fax +34 943 44 88 20 ikusi@ikusi.com www.ikusi.com 120116A...
