Summary of Contents for IKUSI ONE SAT

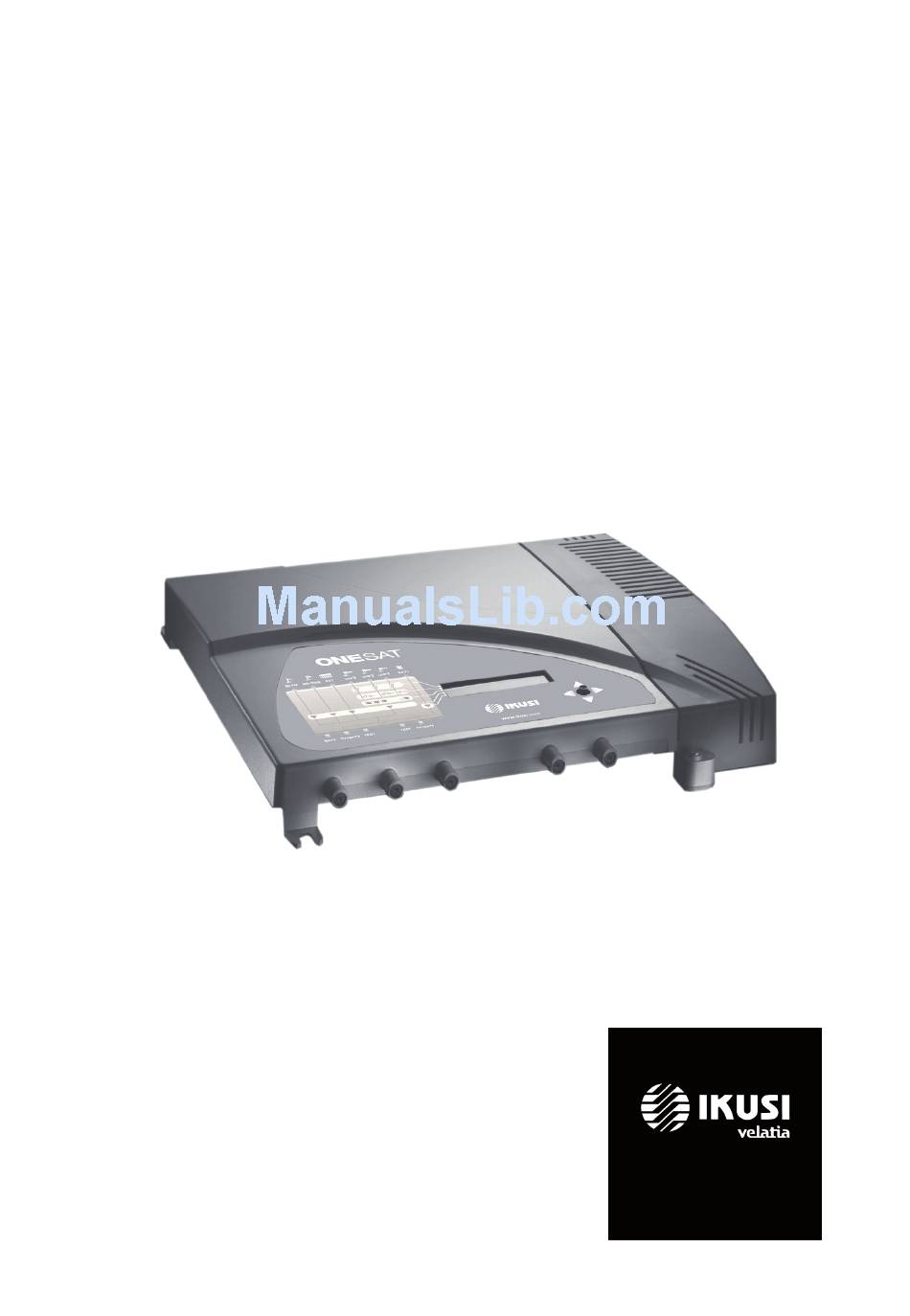

- Page 1 User Guide SAT / 118 / Home REF. 2844 / 2845 / 2849 Programmable multichannel amplifier...
-
Page 2: Table Of Contents
Equipment installation and configuration Installation Power connection Quick menu guide Language selection Manual setting Advanced settings Self-installation Maintenance Equipment care Troubleshooting Technical specifications ONE 118 Model (AFP-201) ONE SAT Model (AFP-292) ONE Home Model (AFP-HOME) Technical annex Warranty Equipment recycling CE Certificate... -
Page 3: General Safety Instructions
General safety instructions Read all of this user manual carefully before plugging in the equipment. Always have these instructions to hand during installation. Follow all of the instructions and safety notices regarding equipment handling. Types of notices The meaning of the safety notices used in this manual are described below. DANGER OF DEATH OR INJURY This safety notice indicates a possible danger for the life and health of people. -
Page 4: Basic Safety Instructions
General safety instructions / Basic safety instructions Basic safety instructions DANGER OF DEATH OR INJURY Do not install the equipment during an electrical storm. This could lead to electrostatic discharge from lightning. DANGER Do not open the equipment. This could lead to electric discharge. RISK OF EQUIPMENT DAMAGE The equipment must be appropriately ventilated. -
Page 5: Introduction
FM and VHF signals are also amplified. The ONE SAT model also amplifies satellite IF sig- nals. Individual adjustment of each frequency filter, number of channels and automatic gain control allows for level equalize of selected channels. - Page 6 Dimensions : 290 mm x 240 mm x 20 mm Weight : 2 kg The main features of the ONE 118 and ONE SAT models are described below. ONE 118 Model Recommended for small and medium-sized installations made up of 10 UHF filters deli- vering an output level of 118 dBμV.
-
Page 7: General Equipment Use
Introduction / General equipment use SAT1 gain = 40 dB. SAT2 gain = -1.5 dB. Outputs (2 configurable outputs): 2 TV+FI outputs 2 Test outputs VHF output level = 113 dBµV. UHF output level = 118 dBµV. FI/SAT output level = 116 dBμV. 1 TV+FI output 1 Test output VHF output level = 118 dBµV. - Page 8 Introduction / General equipment use This symbol is displayed in the manual setting menu. Visually locate it on the LCD screen and see the cluster map on the panel to see which of the 5 equipment clusters is selected. ▲ This acronym is displayed in the main menu.
-
Page 9: Equipment Installation And Configuration
Equipment installation and configuration / Installation Equipment installation and configuration Only the LCD screen and the button are required to configure the equipment. Follow the steps below to install the equipment and configure the different parameters. Installation RISK OF EQUIPMENT DAMAGE BI-FM BIII-DAB UHF3... - Page 10 Equipment installation and configuration / Fast menu guide Fast menu guide Language selection Manual setting Advanced settings Self-installation Filter allocation to aerials (7-0-3) (9-0-1) (10-0-0) (2-5-3) (2-7-1) Filter Adjustment General gain BI - BII input BIII-DAB input VHF-UHF/EXT UHF output input SAT-IF adjustment Equipment...
-
Page 11: Quick Menu Guide
Equipment installation and configuration / Quick menu guide Quick menu guide Language selection NOTE Over the following pages, the field locating and selection method is primarily indicated by the “vertical button movement” and “press button” icons. However, horizontal button movement can be used to locate and select fields, as indicated in the General equipment use section on Page 34. -
Page 12: Filter Adjustment
Equipment installation and configuration / Manual setting For two aerials: Configuration (9 – 0 – 1) Configuration (7 – 0 – 3) For three aerials: Configuration (2 – 5 – 3) Configuration (2 – 7 – 1) Mast-head amplifier power configuration NOTE Only where a mast-head amplifier is fitted to the aerial. - Page 13 Equipment installation and configuration / Manual setting Gain configuration: NOTE If AUT is selected (recomended), the AGC will try and maintain the output at factory preset level. If M is selected the AGC will maintain the output at the level you have set.
-
Page 14: Advanced Settings
Equipment installation and configuration / Advanced settings SAT-IF output adjustment LNB power configuration NOTE There are 5 different configurations to select polarisation. Locate and select polarisation: No polarisation: LNB, OFF. 18 V with tones: LNB, 18 V. 18 V without tones: LNB, 18 V. 13 V with tones: LNB, 13 V. - Page 15 Equipment installation and configuration / Advanced settings UHF2 input: Ψ2, HI / LO. UHF1 input: Ψ1, HI / LO. Filters cloning NOTE Cloning begins automatically after the following steps. Connect two equipments using a coaxial cable in the Test 1 output of each equipment (see position (15) in the illustration in the General Description...
-
Page 16: Automatic Gain Control
Equipment installation and configuration / Advanced settings Specific equipment information NOTE Information on the equipment, the pro- gramme version, the manufacturing date, the number of hours operating, the tem- perature and the equipment serial number are displayed on the screen. Restore factory values CAUTION This function will mean that all previous... -
Page 17: Self-Installation
Equipment installation and configuration / Advanced settings Outputs number configuration NOTE You can choose two types of configuration for Outputs No: TV2 & TV1 or TV1. By default your equipment is configu- red for two outputs (TV1 & TV2). In the advanced menu, located and select OUTPUT CONFIGURATION TV2&TV1. -
Page 18: Maintenance
Maintenance Equipment care HANDLING THE INSIDE OF THE EQUIPMENT IS FORBIDDEN Do not dismantle or try to repair the equipment, its accessories or its compo- nents. This will render the warranty null and void. Do not use the power cable if it is damaged. To disconnect the power cable, pull carefully on the plug and not the cable. -
Page 19: One 118 Model (Afp-201)
Technical specifications ONE 118 Model (AFP-201) BI-FM BIII-DAB UHF1 UHF2 UHF3 Inputs Band width 47-108 174-240 470-862 Input configuration Number of programmable UHF filters per input 35 / 55 Gain (switchable) Gain adjustment Noise figure <6 <6 <6 50-80 Optimum input margin dBµV 60-85 60-80... -
Page 20: One Sat Model (Afp-292)
Technical specifications / ONE SAT Model (AFP-292) ONE SAT Model (AFP-292) FI-SAT BI-FM BIII-DAB UHF1 UHF2 UHF3 SAT-IF Inputs (VHF/UHF) (passive) 47-240 / 950- 950- Band width 47-108 174-240 470-862 470-862 2150 2150 Input configuration Number of programmable UHF filters per input 35/55 -1.5... -
Page 21: One Home Model (Afp-Home)
Technical specifications / ONE Home Model (AFP-HOME) ONE Home Model (AFP-HOME) BI-FM UHF1 Inputs Band width 47-108 470-862 Input configuration Number of programmable UHF filters per input 20 / 40 Gain (switchable) Gain adjustment Noise figure <6 50-80 Optimum input margin dBµV 70-100 Return losses... -
Page 22: Technical Annex
Technical annex Output level reduction in broadband amplifiers BROADBAND TERRESTRIAL TV AMPLIFIERS : The RF output levels specified in this catalogue for IMD3=-60 dB (DIN 45004 B) are applicable when 2 analog TV channels are amplified. If, as is usual, more than 2 TV channels are amplified, such levels have to be reduced according to the following table: Number of Channels (n) -
Page 23: Warranty
During the warranty period, IKUSI is responsible for any faults arising due to material or manufacturing defects and shall repair the receiver or replace it for another corresponding to the state of technology at that time. -
Page 24: Equipment Recycling
Equipment recycling RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable in the European Union and in European countries with selective waste collection systems.) This symbol on your equipment or its packaging indicates that this product cannot be treated as general domestic waste and must be handed in at the cor- responding point of collection for electric and electronic equipment. -
Page 25: Ce Certificate
CE Certificate By reproducing the CE marking, IKUSI guarantees equipment compliance with the cor- responding harmonised standards. EC-Declaration of Conformity marking We, Manufacturer IKUSI, Angel Iglesias, S.A. Paseo Miramón, 170 E-20009 San Sebastián, Spain declare that the product Programmable Terrestrial&Satellite Multiband Amplifiers... - Page 26 Ángel Iglesias, S.A. Paseo Miramón, 170 20014 San Sebastián, Spain Tel. +34 943 44 88 00 Fax +34 943 44 88 20 television@ikusi.com www.ikusi.com 120113E...
