Replacement Instructions

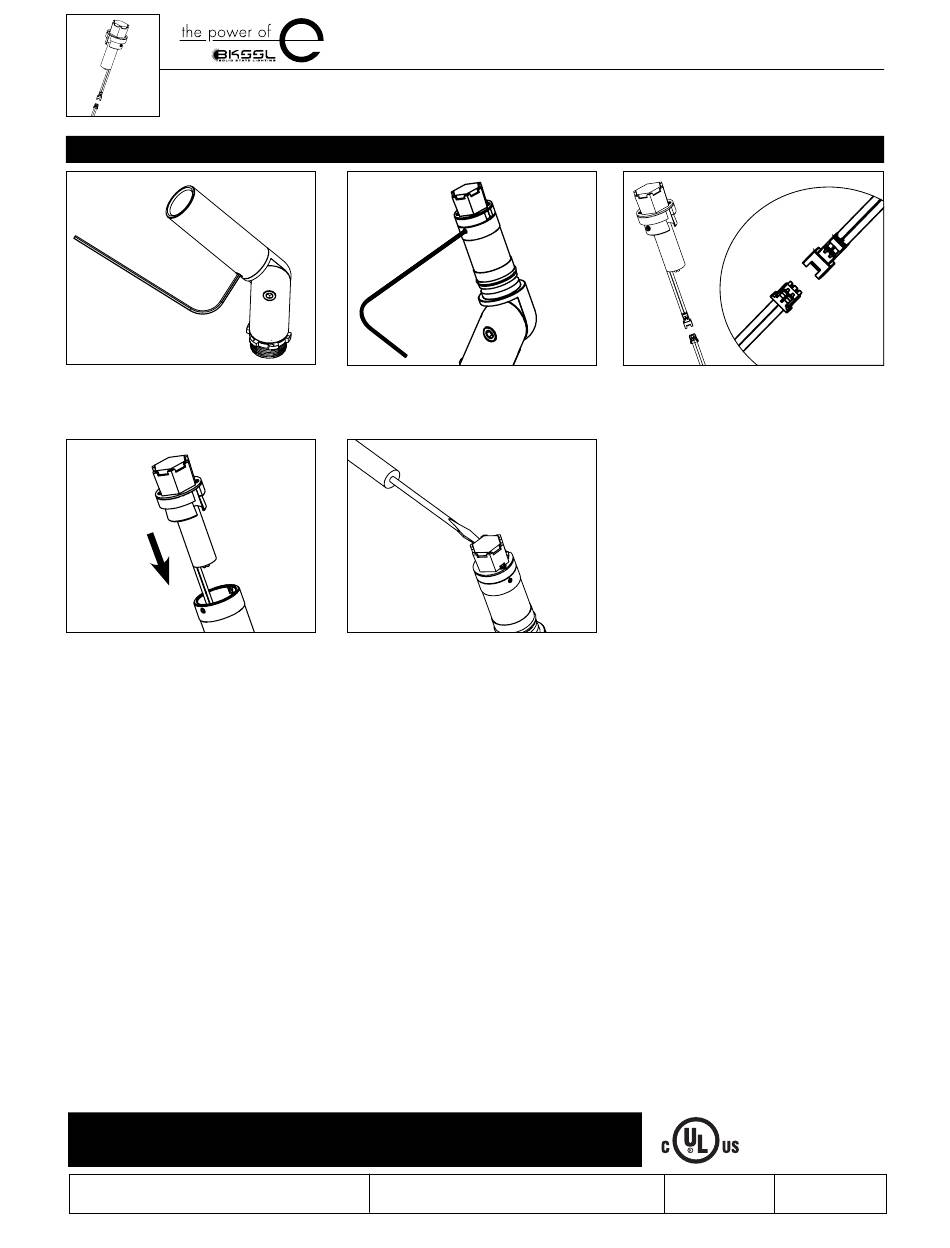

REPLACING LED BOARD, DRIVER AND OPTICS
1. Use 5/64" Allen wrench to loosen #8-32
stainless steel set screw and remove cap.
4. Reverse install LED board and driver
carefully wrapping 18 gauge wires around
driver and inserting into fixture body. Secure
LED board in place with stainless steel set
screws.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
2. Use .050" Allen wrench to loosen two (2) #4-40
stainless steel set screws below LED board on
the heat sink. Gently pull up on LED board and
Driver assembly to expose quick disconnect.
by
5. Use small flat head screw driver to remove lens
from optic holder on the LED. Snap new optic
in place. Replace cap on fixture and tighten set
screw.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
LED BOARD, DRIVER & OPTICS
3. Disengage LED board and driver assembly.
Replace with new board and driver assembly.
1" Size
RELEASED REFERENCE NUMBER
5-1-18
INS000003
