B-K lighting Mini-Micro Series Installation Instructions Manual page 7

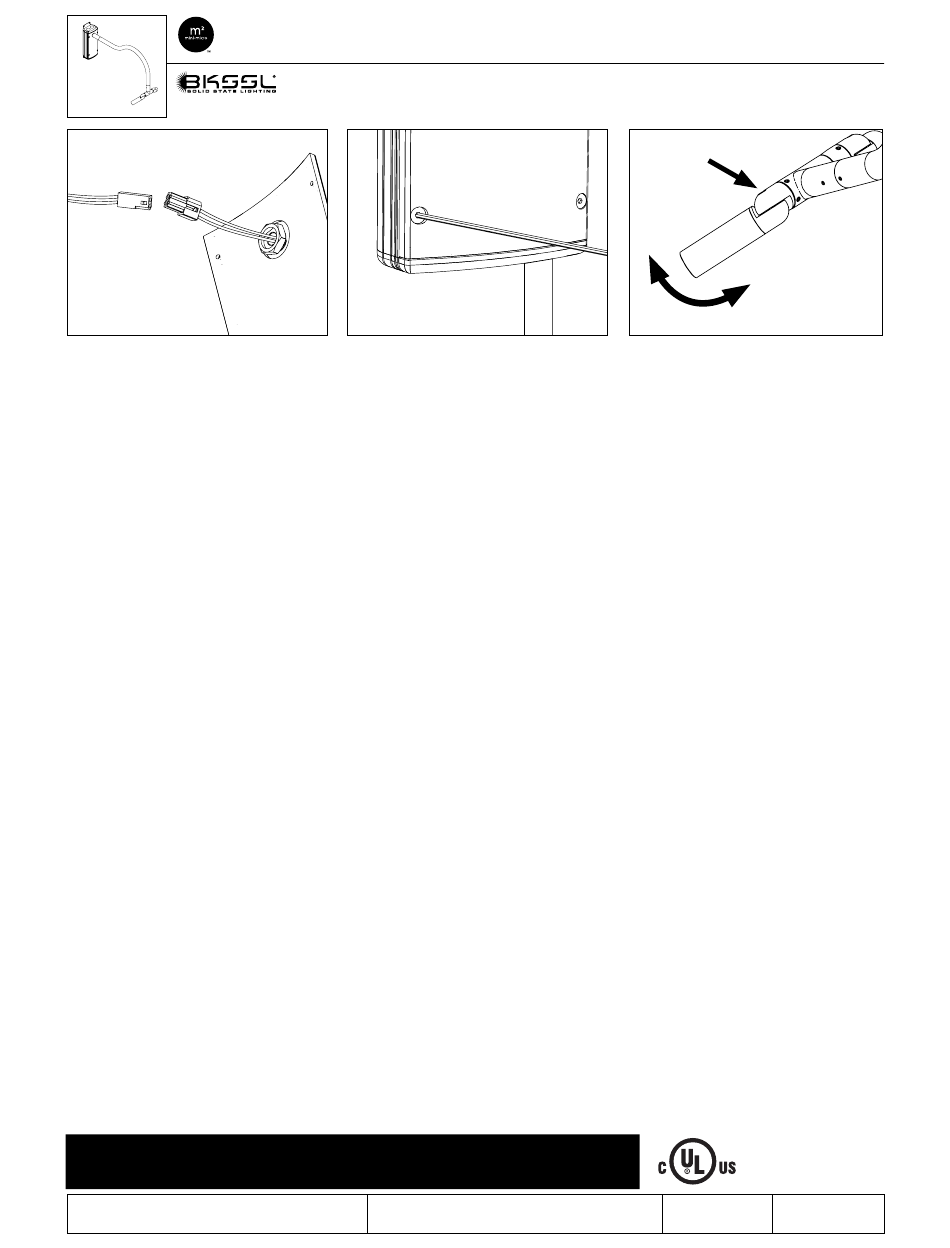

10. Connect secondary leads from transformer
to fixture leads using pre-wired factory quick
disconnect.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
Installation Instructions
11. Make sure UPM housing gasket is free of any dirt
or debris. Attach the faceplate by tightening the
(4) #6-32 captive screws evenly using a 5/64"
Allen wrench.
