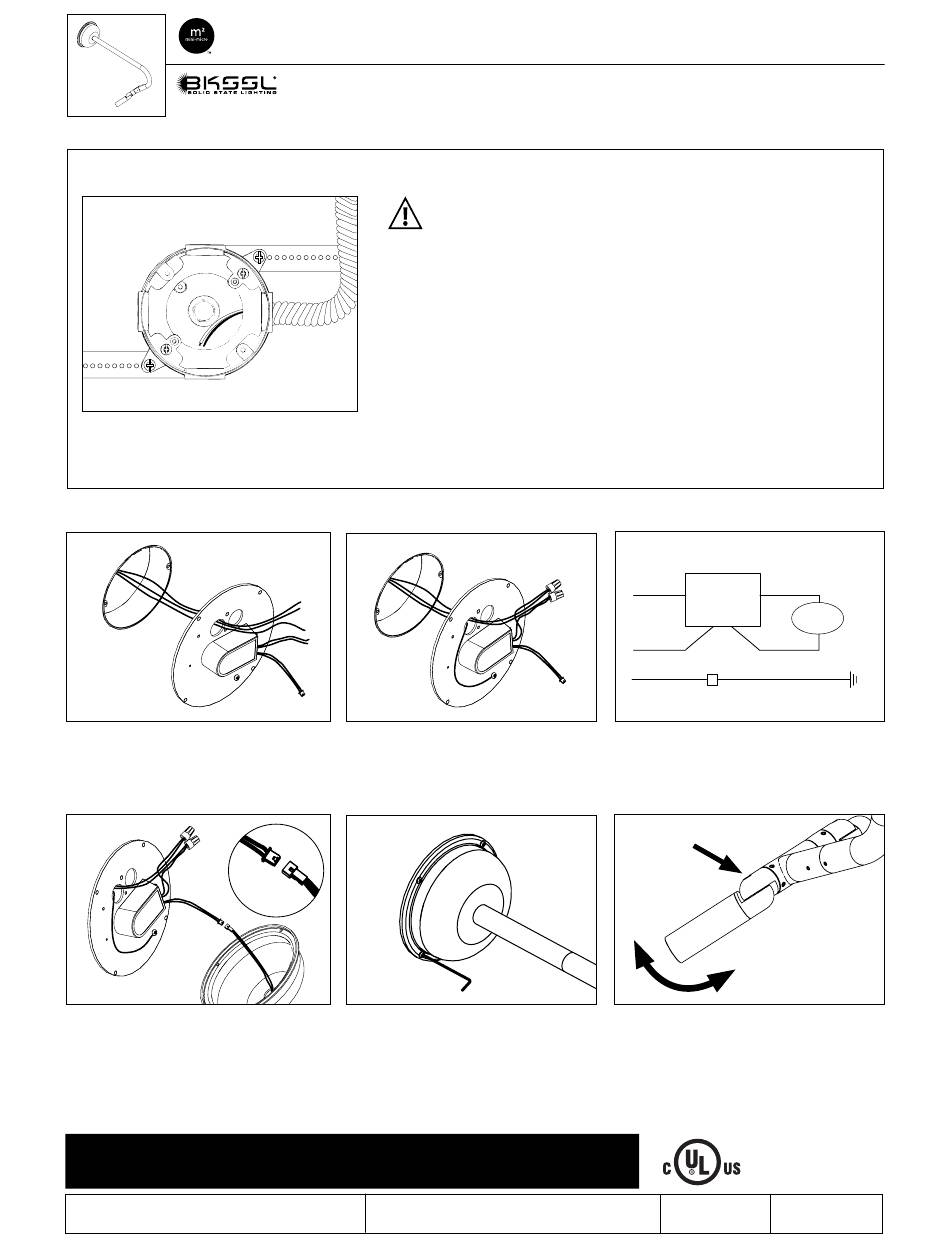

Wiring Diagram - B-K lighting Mini-Micro Series Installation Instructions Manual

Phase 1 - Rough In
Installation of Back box
1. Install Conduit, Junction Box (By Others) to be
used with this product.
Phase 2 - Finish Installation of Fixture with Power Canopy.
1. Remove one or two wire entrance knockouts on
wall plate. Pull primary branch circuit through
knockout(s). Attach wall plate to junction box
using appropriate hardware (By Others).
3. Connect fixture to transformer with provided
quick disconnect.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
Additional Info
• Please follow National and Local electrical codes for your area.
• Junction box installation must be designed to hold full fulcrum weight
of fixture.
• Junction box, universal mounting ring screws, box mounting hardware
and gaskets (By Others)
2. Install junction box so that front face is flush
with finished wall or ceiling. Seal building
envelope as per NEC.
2. Ground primary branch circuit to wall plate
per NEC. Make connections from transformer
to primary branch circuit using proper
wire connectors. (By Others) (By Others).
See wiring diagram.
4. Mount canopy to wall plate using four (4)
#8-32 stainless steel button head screws with
5/64" Allen wrench. Seal building envelope
as per NEC. Do not overtighten.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
TWIN SIGN STAR™
Mini-Micro™ Series on Power Canopy™
3. Connect box to conduit and pull wires for
connections (See Wiring diagram).
120V
Transformer
COM
GROUND GROUND IN T-HOUSING

WIRING DIAGRAM

120V
Transformer
COM
GROUND GROUND IN T-HOUSING
WIRING DIAGRAM
5. Use 5/32" Allen wrench to loosen #10-32 stainless
steel black oxide socket head cap screw at the
knuckle. Aim fixture to desired vertical location.
Tighten to secure aiming position.
RELEASED
7-25-18
12V
FIXTURE
COM
12V
LAMP
COM
REFERENCE NUMBER
INS-2249-01
