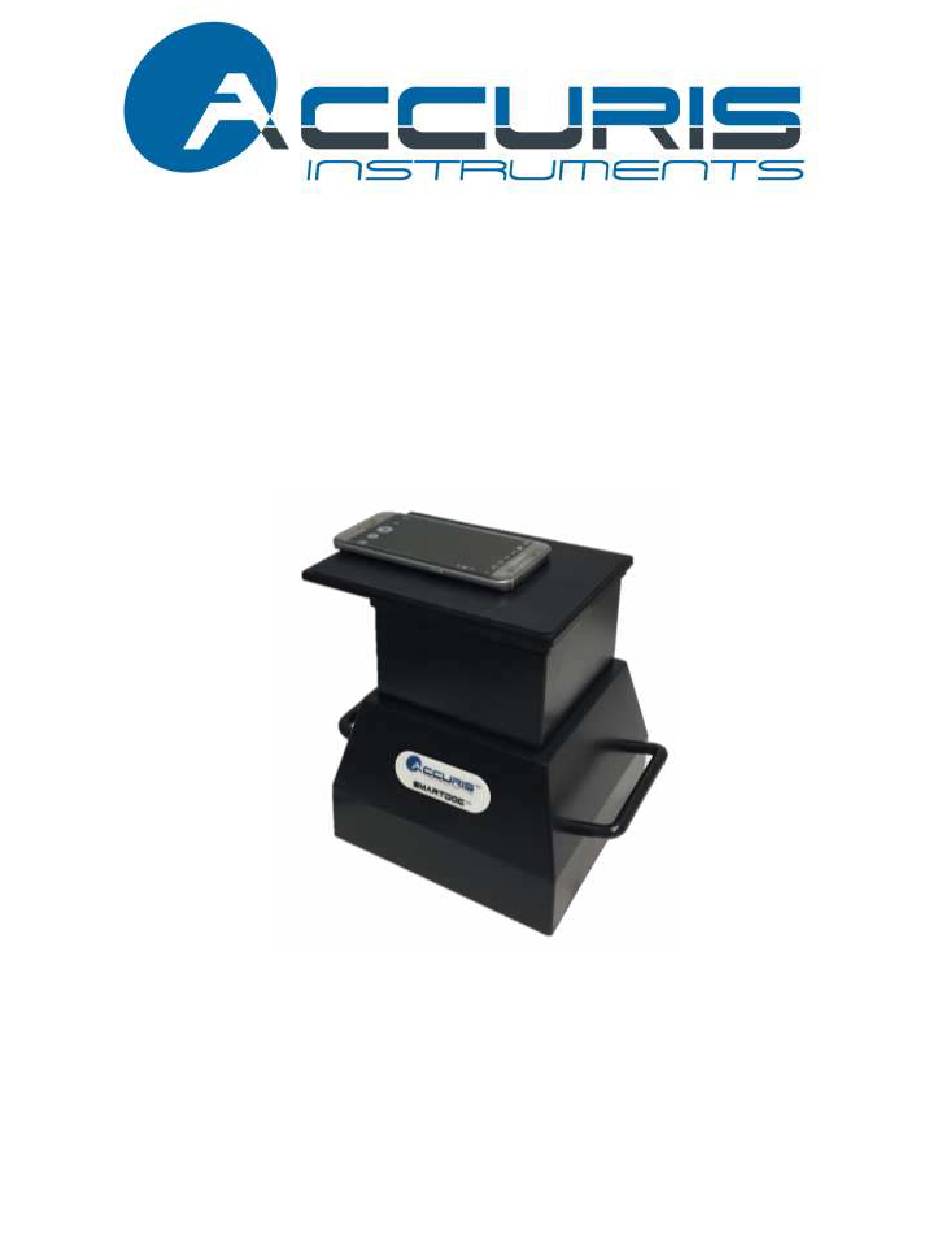

- Page 1 ™ SmartDoc Imaging Enclosure E5001-SD Instruction Manual Version 11.16...
- Page 2 Table of Contents 1. Introduction …………………………………………… 3 2. Warnings ………………………………………………. 3 3. Unpacking …………………………………………….. 4 4. SmartDoc Enclosure Overview ………………… 4 5. Setting up the SmartDoc ..…………………… 6. SmartDoc Photo Filters ………..………………… 5 7. Gel Imaging with a Smart Phone……………… 6 8.
- Page 3 1. INTRODUCTION Congratulations on your purchase of a SmartDoc 2.0 Imaging Enclosure. This enclosure is designed for capturing high quality photos of electrophoresis gels with a smart phone or tablet camera. The SmartDoc Enclosure can be used on existing blue light or UV transilluminators.
- Page 4 Scientific Customer Service at 908-769-5555 or email info@benchmarkscientific.com. IMPORTANT: Save the carton and packing materials for storing and transporting the SmartDoc or returning it for any required servicing. 4. SmartDoc 2.0 Assembly, Overview of Parts Orange Photo filter Smart phone platform Removable extender...
- Page 5 5. SETTING UP THE SMARTDOC Assemble the components of the SmartDoc enclosure as pictured in Section 4 of this manual. Depending on the size of the gels to be imaged, or the desired detail of the image, the extender piece can be connected or removed. The top, smart phone platform piece connects either to the top of the Extender or to the top of the Main Enclosure.
- Page 6 5. Place the SmartDoc imaging enclosure onto the transilluminator. 6. Insert the appropriate filter into place on the top platform. The side with the Accuris logo should be facing up. See Section 6 for information on filters. 7. Place a smartphone face down onto the top platform, and align the camera lens with the filter.
- Page 7 SmartDoc Enclosure properly positioned on a SmartDoc Enclosure properly positioned on a Blue Light Transilluminator. UV Transilluminator. Note: On some models of transilluminators, the protective cover may need to be removed. 8. SPECIFICATIONS: Maximum Gel Size: 15 x 15 cm Included imaging filter: Orange PMMA, 12mm aperture Dimensions (WxDxH):...
- Page 8 © Copyright, 2016, Benchmark Scientific PO Box 709 Edison, NJ 08818 Phone: 908-769-5555 Email: info@accuris-usa.com www.benchmarkscientific.com www.accuris-usa.com...
