KD-PS22UTx
4K 18G 328ft (100m) HDMI over HDBaseT Extender,
2x1 Switcher with 2 HDMI Inputs, 2 Mirrored Outputs
(HDBaseT, HDMI), USB 2.0, LAN, Audio De-Embed,
IR, RS-232, IP Control, PoH, CEC Manager
(Tx Only)
™
Operating Instructions
K E Y D I G I TA L
APP READY
The Experts in Digital Video Technology and Solutions
™
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Key Digital KD-PS22UTx
Summary of Contents for Key Digital KD-PS22UTx
- Page 1 KD-PS22UTx 4K 18G 328ft (100m) HDMI over HDBaseT Extender, 2x1 Switcher with 2 HDMI Inputs, 2 Mirrored Outputs (HDBaseT, HDMI), USB 2.0, LAN, Audio De-Embed, IR, RS-232, IP Control, PoH, CEC Manager (Tx Only) ™ Operating Instructions K E Y D I G I TA L...
-
Page 2: Table Of Contents

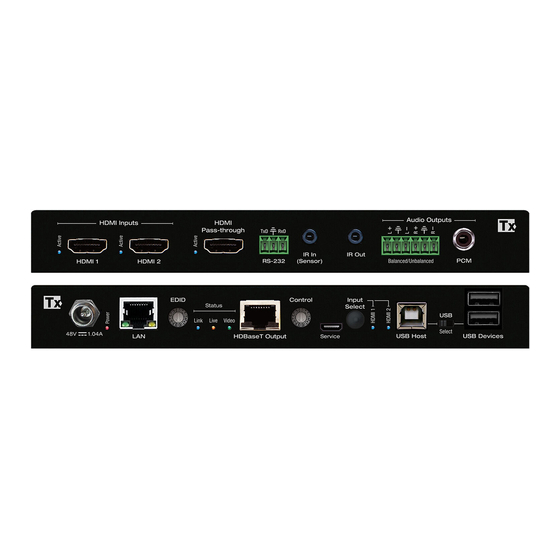

KD-PS22UTx is an HDBaseT transmitter + presentation switcher + soft-codec enabling interface with two HDMI inputs, as well as two USB-A connections, and one USB-B connection . The KD-PS22UTx also includes a local pass-through output for an additional display . KD-PS22UTx is ideal for professional video installations in conference rooms, classrooms, lecture halls, auditoriums, as well as audio return / ARC applications . - Page 3 Key Features Presentation Switching: 2 HDMI Source selection by push button or IP control . › Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation › Switchers . Soft-Codec Enabling System: USB Host + Device ports on wall plate and chosen Rx / Presentation ›...
-
Page 4: Quick Setup Guide
6. To send the selected audio source into audio systems, connect from the analog or digital audio de- embed outputs of the KD-PS22UTx / Rx unit / presentation switcher 7. Connect control system or PC to LAN port of the KD-PS22UTx, Presentation Switch or Rx unit for network connectivity 8. -
Page 5: Application Example
Integration with KD-UPS52U: Laptop 1 Laptop 2 AppleTV PC (DisplayPort) Signage (USB-C) Cable/Satellite KD-PS22UTx WiFi Router WiFi Up to 328 ft (100m) K E Y D I G I TA L APP READY DSP/Mixer Presentation Switcher KD-PS42 with KD-AMP220 KD-UPS52U... - Page 6 3. Choose the device from the Devices window (fig . 2a) 4. Set the desired Device Name in the KD-PS22UTx Information window (fig . 2b) 5. In the Network Settings section of the Properties window, enter the desired IP settings (fig . 2c) a .
- Page 7 7. If using KD-App or KDMS for control, set the desired Input/Output names by entering the Input/ Output Settings section of the properties window, and selecting the Change Input/Output Name button (fig . 3a), selecting the desired input/output and entering the name (fig . 3b) 8.
- Page 8 Connect and configure KD-PS22UTx as described in this Quick Setup Guide . » Download and open KD-App and/or KDMS ™ » Ensure the iOS device and/or PC computer are on the same network with KD-PS22UTx » Perform a network scan in the KD-App/KDMS ™ »...
-
Page 9: Connections, Buttons, And Leds
Option 3: Control via professional control system KD-PS22UTx allows control over TCP/IP interface for bi-directional communication . You may connect to the LAN port of the KD-PS22UTx, KD-X100MRx, or KD-UPS52U to deliver network connectivity to the Key Digital devices . - Page 10 » Provides 5V 500mA power » Use USB toggle switch to determine if KD-PS22UTx will be used to connect a USB host (USB-B port) » or USB device (USB-A port) . Both host and device are not simultaneously possible .
- Page 11 Supports connectivity to USB hubs but may not exceed 15 endpoint devices » Use USB toggle switch to determine if KD-PS22UTx will be used to connect a USB host (USB-B port) » or USB device (USB-A port) . Both host and device are not simultaneously possible .
- Page 12 IF Auto sensing has been set via any method other than the front Control Rotary, it will be » automatically disabled when the KD-PS22UTx is manually controlled by the front panel button, IR, RS-232, TCP/IP, or USB control . If fixed Auto Sensing is required, please set via the front...
- Page 13 Used for configuration and control from PC via KDMS Pro, KDMS, or third-party control terminal » Used for firmware updates (consult with Key Digital tech support before updating firmware) » Supports USB driver for Windows 10, 7, XP, Mac, Linux »...
- Page 14 Input Select Button › Alternates between inputs 1 and 2 » LED display indicates selected source » Auto switching is enabled via the control rotary » Press and hold for 10 seconds to reset the unit to factory default settings »...
- Page 15 » Use with third-party HDBaseT Tx or Rx The KD-PS22UTx is compatible with third-party HDBaseT or other Key Digital HDBaseT products . Power must be applied to KD-PS22UTx . IR In: The included IR sensor can be connected to the unit via this port .
-
Page 16: Tcp/Ip Commands
DOLBY/DTS MUTE Pass-through HD Audio MUTE MUTE TCP/IP Commands KD-PS22UTx allows bi-directional control over TCP/IP connection made at KD-PS22UTx, KD-UPS52U, or KD-X100MRx Default static IP address is 192.168.1.239, port 23 › Notes: Commands are not case-sensitive » Commands require a carriage return following each string »... - Page 17 -- SPC DF00 : Reset to Factory Defaults without Network Reset ------------------------------------------------------------------------- Status Command (STA). Returns unit status and settings in readable format: ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- -- Model: KD-PS22UTx, Device Name: PS22UTx_0001 -- Main F/W Ver: 1.00, Splitter Ver: 1.00,...
-
Page 18: Specifications
-- Service : Baud Rate=115200bps, Data=8bit, Parity=None, Stop=1bit -- Front Panel Button : Enabled , CAMUSB Control Mode : 0 -- Network Setting(Web Server/TCP Control) Status -- MAC Address = 60:89:B1:36:00:01 -- Host IP Address = 192.168.001.239 -- Net Mask = 255.255.255.000 -- Router IP Address = 192.168.001.001 -- TCP Port = 0023 -- Video Input Status... -
Page 19: Important Product Warnings & Safety Instructions
. You MUST use the Power Supply PROVIDED with your unit or you VOID the Key Digital ® Warranty and risk damage to your unit and associated equipment. - Page 20 Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers . Key Digital 521 East 3rd Street Mount Vernon, NY 10553 ® Phone 914.667.9700 914.668.8666 www.keydigital.com © 2020 Key Digital, Inc . All rights reserved .
