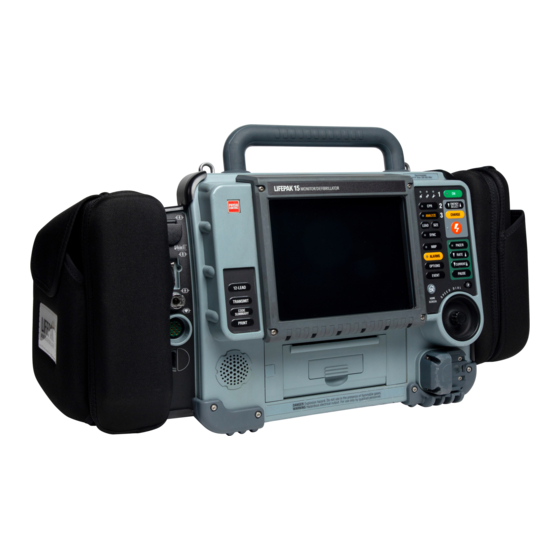

Service Process Work Instruction LIFEPAK 15 V4 CO2 Upgrade
Doc Type
Service Process Document
Doc State
Released
Reference Product
DMR:
This document is electronically signed in the Physio-Control, Inc. Product Lifecycle Management (PLM) System. Approvals can be
obtained from the PLM system which displays the selected approvers, their approval roles, and approval dates.
PROPRIETARY AND CONFIDENTIAL DOCUMENT FOR PHYSIO-CONTROL, INC. USE ONLY. This document is property of Physio-
Control and may not be used, reproduced, published or disclosed to others without authorization from Physio-Control.
Attachments (Optional):
Initial release.
7000743_A.doc
3313182
Change Description
Doc ID
3333964
State Date
Owner
Qty
Page
1 of 38
Doc Rev
A
3/22/2018
Pages
Page Sequencing
