SENSCAPE
™
Luminaires for Parks, Campus and Commercial Areas
SA SERIES
INSTALLATION INSTRUCTIONS

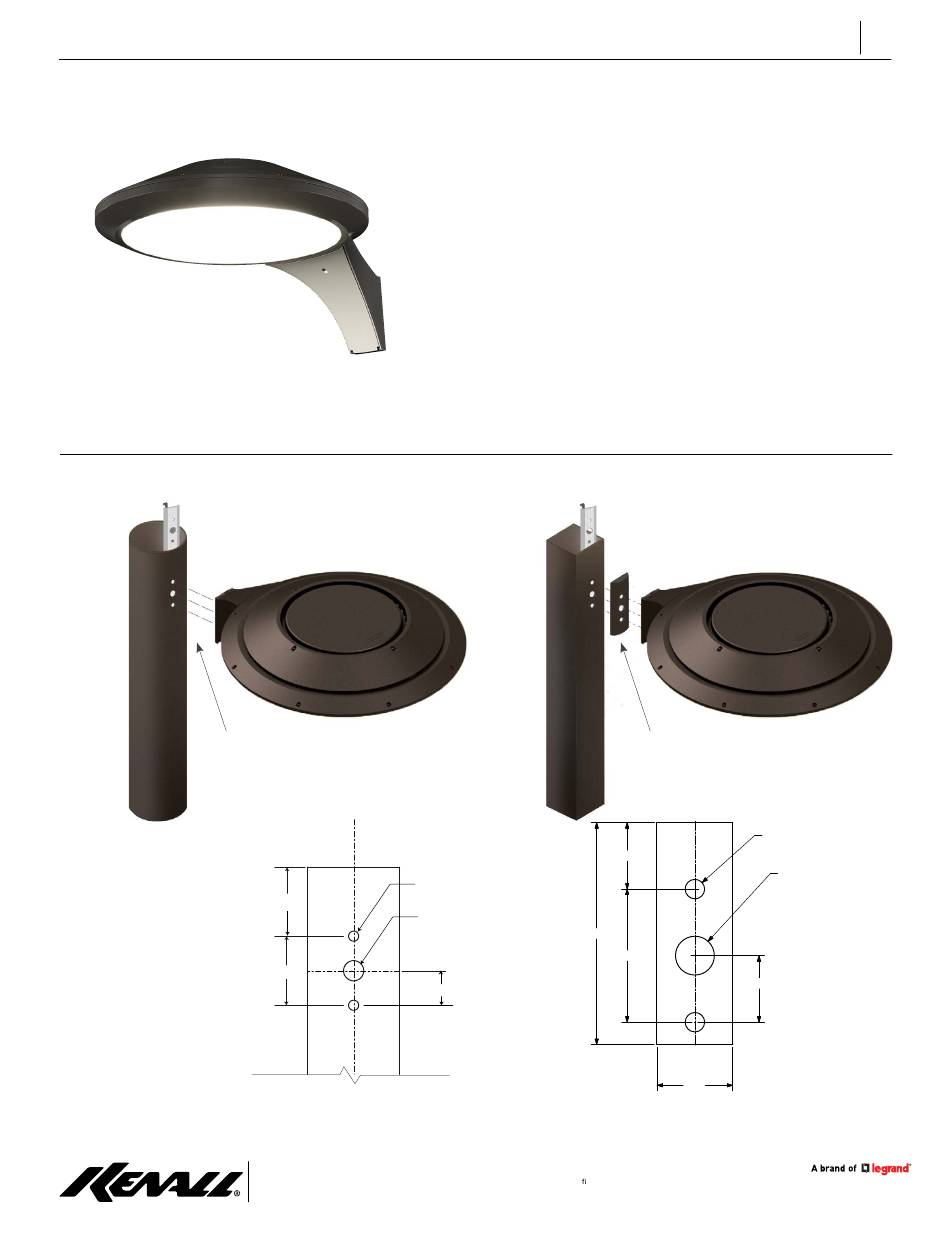

ROUND POLE MOUNTING
Round Pole 'Ready'
SenScape ships ready for round
pole installations.
Ø
.438 (2)
3.00
Ø
.875
3.00
1.50
Drilling Template for
Square and Round Pole
www.kenall.com
P: 800-4-Kenall
This product may be covered by patents found at www.kenall.com/patents. Content of speci cation sheets is subject to change; please consult www.kenall.com for current product details.
INSTALLATION INSTRUCTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS
BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH
ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT
TO AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS
AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.
SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE
FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING
ORIENTATION, OR MOUNTING RESTRICTIONS.
SAVE THESE INSTRUCTIONS
SQUARE POLE MOUNTING
Square Pole Adapter Plate
The adapter plate ships with every unit
and enables SenScape to be used in
square pole installations.
1.50
5.00
3.00
Square Pole Adapter
F: 262-891-9701
10200 55th Street Kenosha, Wisconsin 53144
© 2018 Kenall Mfg. Co. All rights reserved.
Ø.438 (2)
Ø.875
1.50
1.70
SA-PM_F-7793_021820
1
