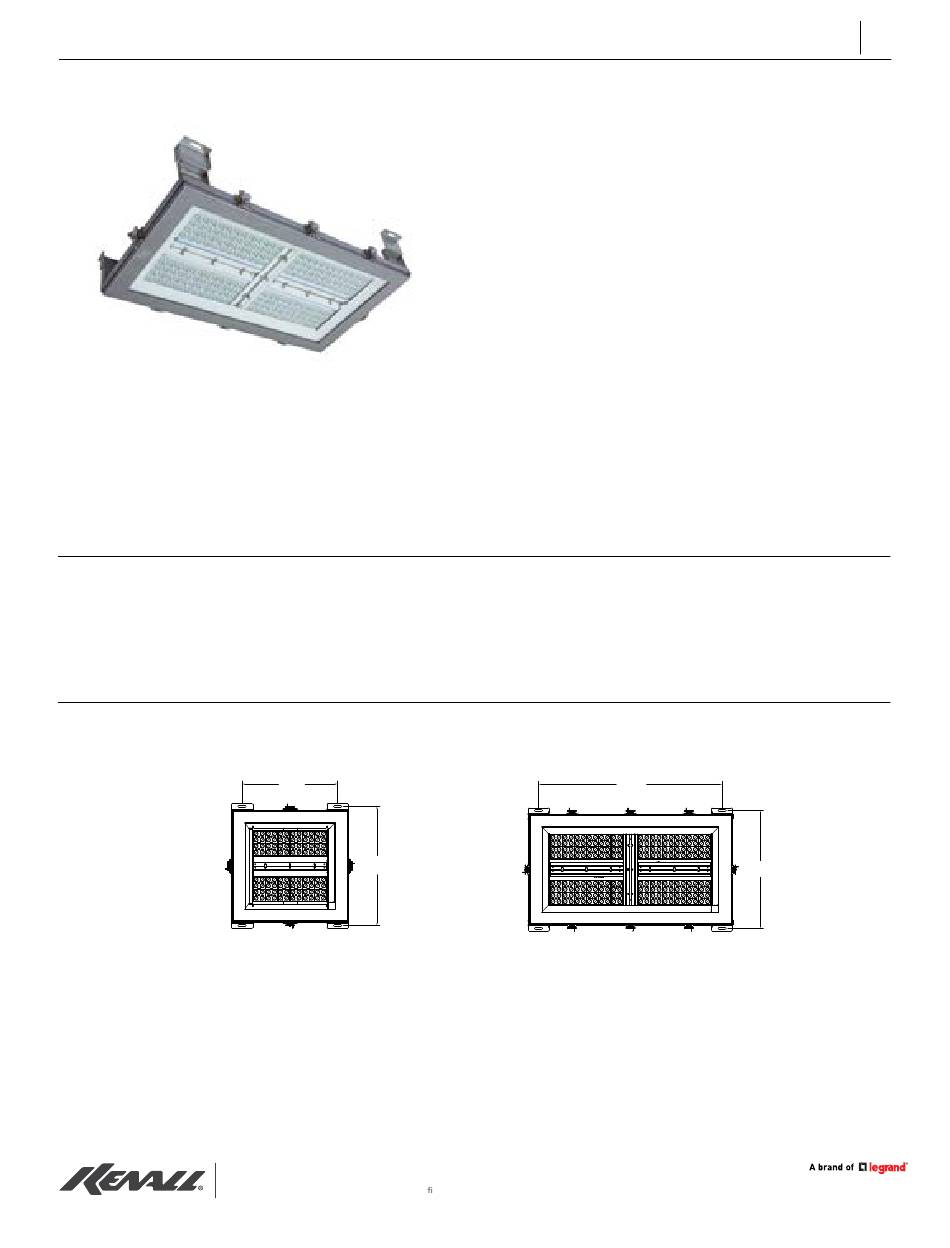

LEGRAND Kenall LUXTRAN LTS Series Installation Instructions

LUXTRAN
™
Luminaires for Tunnel Applications
LTS SERIES
The LuxTran LTS series luminaires contains sensitive electronics. Take care to avoid damage by improper handling or
static electricity discharge (ESD). Either type of damage could render the system inoperable or cause latent failure.
LuxTran LTS Series Luminaires are powered by RD700 distributed DC driver system; remotely-located for servicing
convenience.
INSTALLATION INSTRUCTIONS
1. Secure fixture to wall or ceiling using user supplied hardware. 3/8 × 1-3/8 slots in mounting brackets are
provided. See Figure 1.
NOTE: If the fixture has directional optics, note the label indicating the direction of light and install appropriately.
2. Rotate latches and open door, which is retained by stainless steel cables.
3. Loosen wing nut and remove Wiring Cover.
4. Connect weather tight electrical service to 7/8 dia. opening provided.
