ENVIROPRO
™
Luminaires for Food Processing Applications
EPLB SERIES – LOW BAY
When using electrical equipment, basic safety precautions should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS
BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT TO
AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.
SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING
REFRACTOR/ REFLECTOR REMOVAL
SAFETY RECOMMENDATION
A 1/16" diameter aircaft cable (not included) is recommended for attaching the fixture structural to the upper
structural. See figure 2.
www.kenall.com | P: 800-4-Kenall | F: 262-891-9701 | 10200 55th Street Kenosha, Wisconsin 53144, USA
This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin. It may be covered by patents
found at www.kenall.com/patents. Content of speci cation sheets is subject to change; please consult www.kenall.com for current product details. ©2019 Kenall Mfg. Co.
IMPORTANT SAFEGUARDS
ORIENTATION, OR MOUNTING RESTRICTIONS.
SAVE THESE INSTRUCTIONS

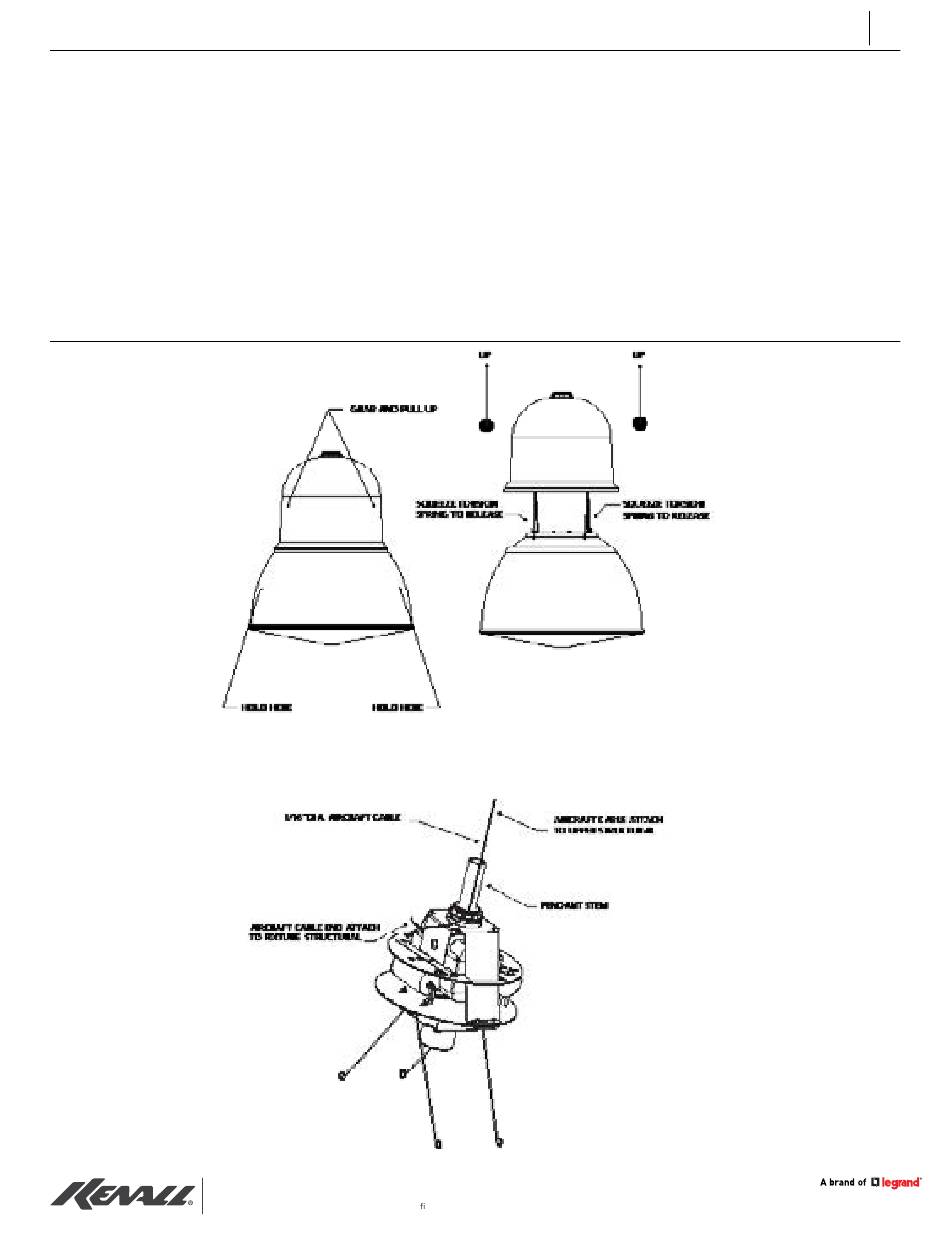

FIGURE 1
INSTALLATION INSTRUCTIONS
FIGURE 2
1
F-4541
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Kenall ENVIROPRO EPLB Series
Summary of Contents for LEGRAND Kenall ENVIROPRO EPLB Series
- Page 1 ENVIROPRO ™ INSTALLATION INSTRUCTIONS Luminaires for Food Processing Applications EPLB SERIES – LOW BAY IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed, including the following: THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
- Page 2 INSTALLATION INSTRUCTIONS LOOP HANGER INSTALLATION – HL (FIGURE 3) 1. Remove refractor/ reflector per Figure 1. 2. Disconnect cord from luminaire. 3. Wire cord leads to power supply leads using connectors suitable for the gauge and number of wires being used. Black fixture lead connects to the supply conductor, white fixture lead connects to the neutral supply conductor, and the grounding wire must be connected to a suitable ground.
-
Page 3: Customer Service
INSTALLATION INSTRUCTIONS PENDANT MOUNT INSTALLATION – (320M-400M ONLY) PM (FIGURE 5) 1. Remove refractor/ reflector per Figure 1. 2. Feed wires through the ¾" diameter rigid pendant stem (by others). 3. Connect threaded hub to the ¾" diameter rigid pendant stem (by others) and attaching the other end to upper structural.
