LUXTRAN
™
Luminaires for Tunnel Applications
LTSI SERIES
When using electrical equipment, basic safety precautions should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED. CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D'INSTALLATION PERTINENT, PAR UNE
PERSONNE QUI CONNAÎT BIEN LE PRODUIT ET SON FONCTIONNEMENT AINSI QUE LES RISQUES
INHÉRENTS. DISCONNECT POWER TO ALL CIRCUITS BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH ALL NATIONAL,
STATE, AND LOCAL CODES. DO NOT CONNECT TO AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS AND LABELS TO
ENSURE CORRECT INSTALLATION OF FIXTURE. SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE FIXTURE, IN ADDITION
TO THIS INSTRUCTION SHEET, REGARDING ORIENTATION, OR MOUNTING RESTRICTIONS.
The LuxTran LTSI series luminaires contains sensitive electronics. Take care to avoid damage by improper handling or
static electricity discharge (ESD). Either type of damage could render the system inoperable or cause latent failure.
INSTALLATION INSTRUCTIONS

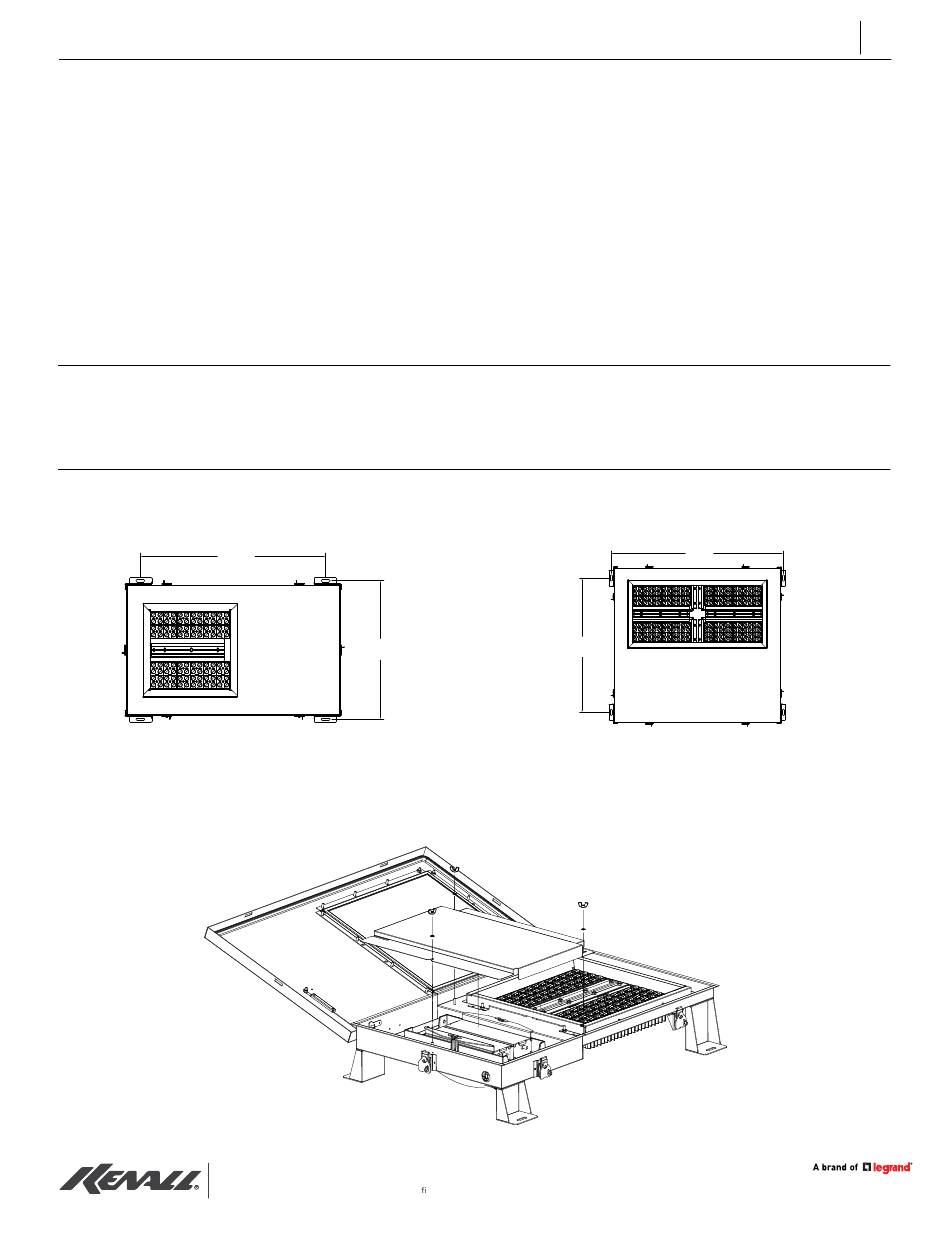

1. Secure fixture to wall or ceiling using user supplied hardware. 3/8 × 1-3/8 slots in mounting brackets are
provided. See Figure 1.
27.90
A2
NOTE: If the fixture has directional optics, note the label indicating the direction of light and install appropriately.
2. Rotate latches and open door, which is retained by stainless steel cables.
3. Loosen wing nuts and remove Wiring Cover. See figure 2.
www.kenall.com | P: 800-4-Kenall | F: 262-891-9701 | 10200 55th Street Kenosha, Wisconsin 53144, USA
This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin. It may be covered by patents
found at www.kenall.com/patents. Content of speci cation sheets is subject to change; please consult www.kenall.com for current product details. ©2019 Kenall Mfg. Co.
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS
20.90
Figure 1
Figure 2
INSTALLATION INSTRUCTIONS
35.8
27.9
B2
1
LTSI_F-5356_100218
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Kenall LUXTRAN LTSI Series
Summary of Contents for LEGRAND Kenall LUXTRAN LTSI Series
- Page 1 LUXTRAN ™ INSTALLATION INSTRUCTIONS Luminaires for Tunnel Applications LTSI SERIES IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed, including the following: THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
- Page 2 INSTALLATION INSTRUCTIONS 4. Connect weather tight electrical service to 1/2 or 3/4 conduit hole provided. 5. Connect electrical service: Black- input line, 277-480VAC White- Neutral Copper- ground 6. Replace Wiring Cover and secure with wing nuts. 7. Close door and secure rotating latches. SERVICE INSTRUCTIONS Before beginning any service operation, be sure the power to the fixture is off.
-
Page 3: Customer Service
INSTALLATION INSTRUCTIONS To Replace LED Modules: LED module replacement may be done after the fixture is removed from service. The heat sinks and optics must also to be replaced when replacing the LED modules. 1. Rotate latches and open door, which is retained by stainless steel cables. 2.
