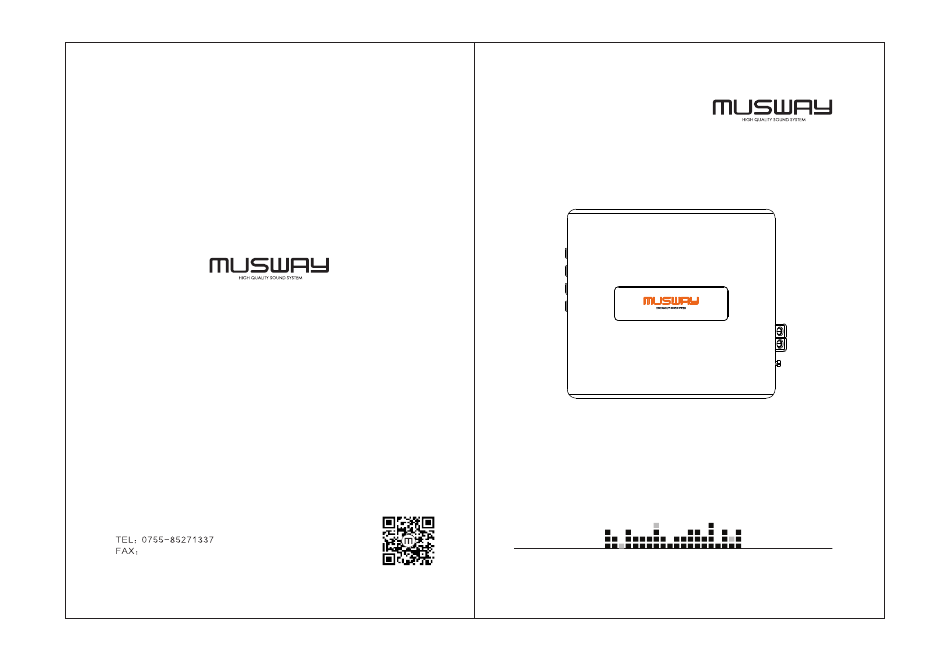

- Page 1 规格：120*170mm（设计出血3mm)CMYK封面250g铜版纸 内页100g书写纸 骑马钉 4-Channel Amplifier with 6 channel DSP USER MANUAL MUSWAY TECHNOLOGY CO.,LTD 0755-85278736 Please read this manual before using HT TP://www.imusway.cn...
-
Page 2: Product Description

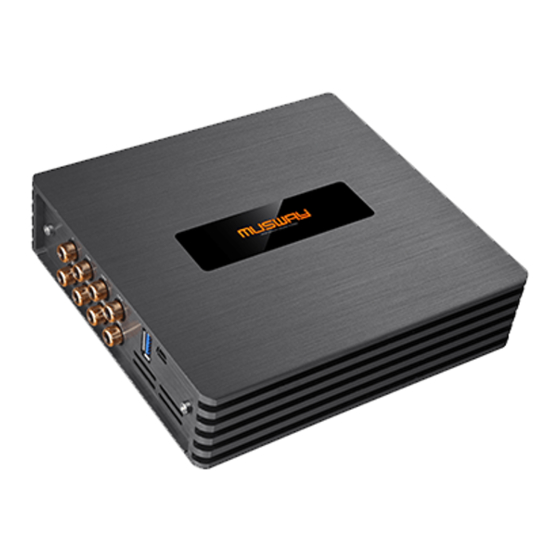

User manual User manual Product description M4 is a 4-channel amplifier and settable in bridge mode; it also features a Dual 32 bit,330 MHz clock speed digital sound processor (DSP), standalone 24 bit AD/DA converter, essential to maximize the acoustic performance of your car audio system. -
Page 3: Connection Panels-Description
External Size 41mm Power + Power (11-15 VDC): connection terminal for M4 power supply positive pole. The jack accepts a stripped cable up to φ5mm/ with maximum section of 4 AWG . For better power transfer we recommend using cables with the largest possible cross-section and with the same cross-section as the cable connected to the negative pole. -
Page 4: System Connector
30A blade protection fuse needs to be replaced, use same type PRE IN auxiliary low-level stereo signal input. and value as the original. The M4 comes with an auxiliary stereo signal input to connect an external stereo pre-amplifier source. System Connector Connector for the cable harness. - Page 5 The signal to be applied must be balanced signal and have a DC level above 5V. ■Use the multipoint connector provided to connect to speakers. ■Turn on M4,Guided procedure to set the desired car audio system. NOTE: Before turning on the system, Set the head-unit output level at a lower level approximately 20% of its maximum excursion, to avoid damaging the speakers during calibration.
-
Page 6: Initial System Start-Up
Audio Adjustment included USB cable. Install the M4 in your vehicle before you connect a PC to it . Turn the ignition key to the ACC or ON position. When you open sound manager for M4 on a PC, you can set/adjust WARNING: the audio settings on the PC. -
Page 7: Technical Specifications
User manual User manual DIGITAL SIGNAL PROCESSOR (32 bit ) TECHNICAL SPECIFICATIONS Crossover: Full / Hi Pass / Lo Pass / Band Pass Crossover type and slope: Linkwitz @ 6/12/18/24/30/36/42/48 dB - Butterworth POWER SUPPLY @ 6/12/18/24/30/36/42/48 dB Voltage: 8 - 15 VDC Crossover Frequency: 1Hz step @ 20 - 20k Hz Switched off:...
