Straight OD Thread with Lead In/Lead Out Angles
This example shows a straight thread cut with:
•
Lead In angle (A) of 30°.
•
Lead Out angle (C) of 5°.
•
Two finish passes of .02" per finish pass (P, L).
•
Three spring passes (R).
Thread cut example—straight thread with lead in/lead out angles
G90 M03 S120
G00 X4.1 Z2.5
G78 X0.9 J0.6 Z1.2 K2.0 A30 C5.0 F0.15 D0.04 E0.03 P2.0 L0.02 R3.0 U0.1 W0.1
M30

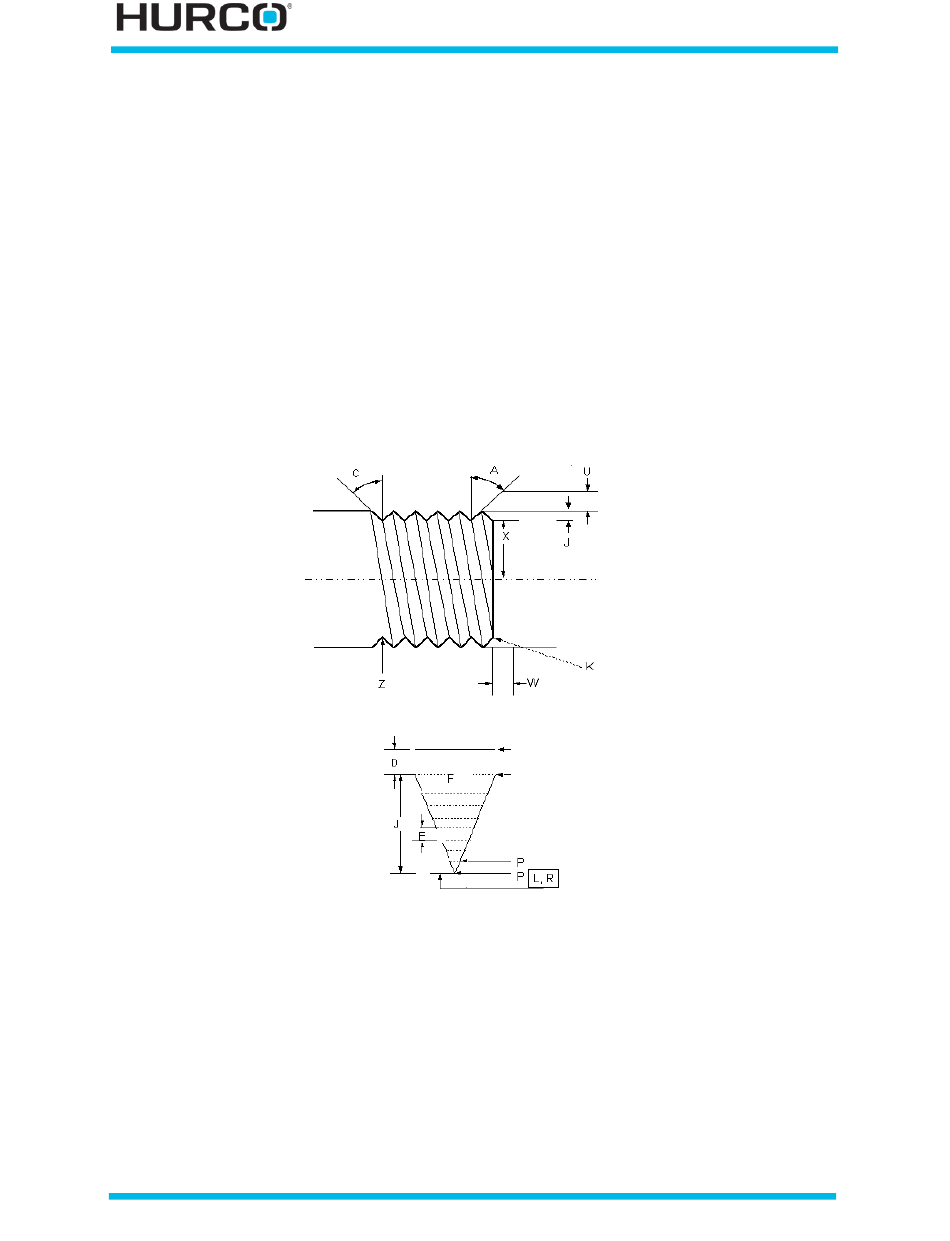

Figure 2–20. Straight OD Thread with Lead In/Lead Out Angles
2 - 34 Basic NC G Codes
704-0115-307
WinMax Lathe NC Programming
