Quick Links
Scan for full manual
Step 1: Check what's in the box
AFM-20DSP
20 Port Audio Matrix
1 Power cord

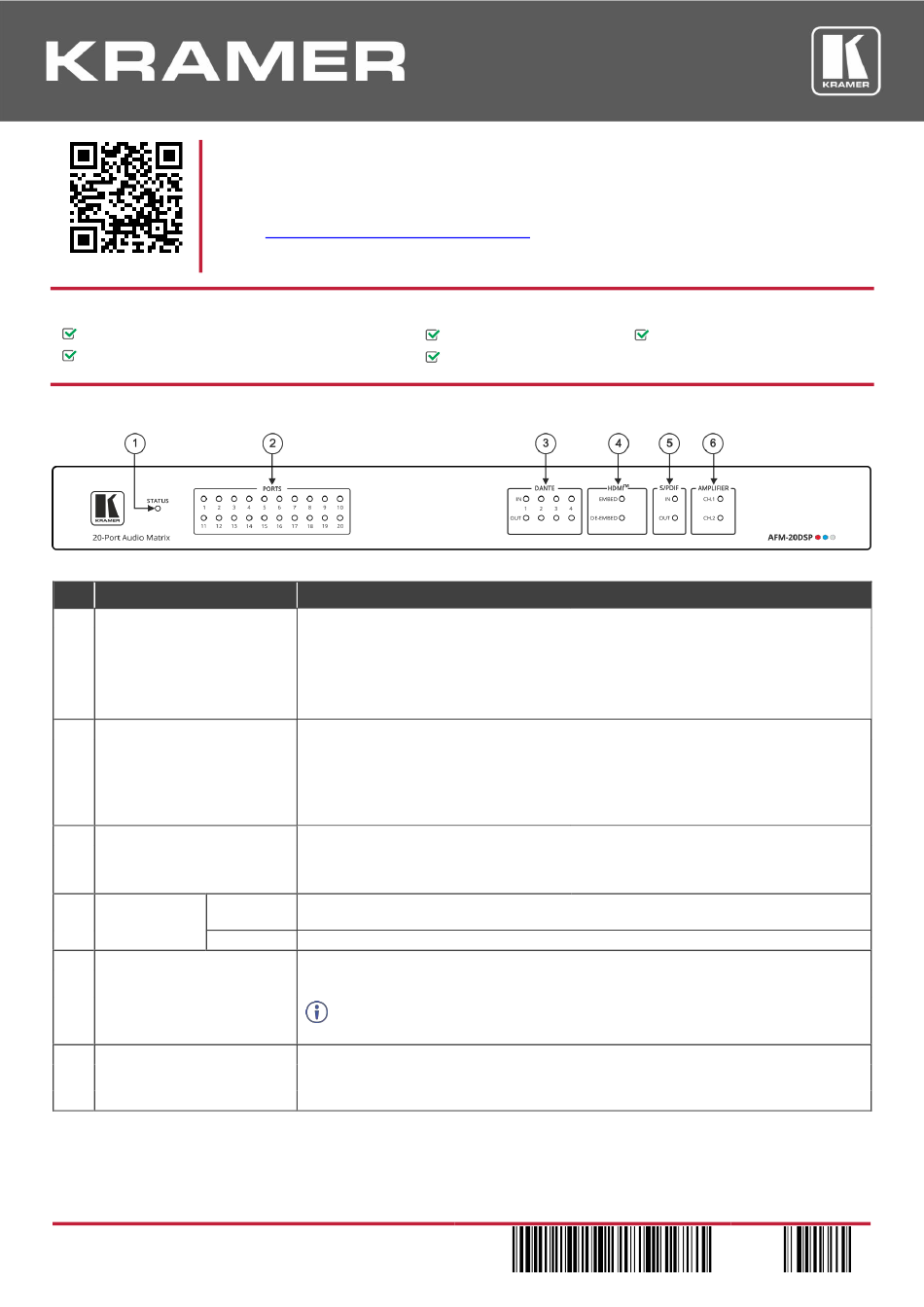

Step 2: Get to know your AFM-20DSP
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
#
Feature
1
STATUS LED
2
PORTS LEDs (1 to 20)
3
IN OUT DANTE™ LEDs
(1 to 4)
HDMI™ LEDs
4
EMBED
DE-EMBED
5
IN OUT S/PDIF LEDs
6
CH 1(L)/CH 2(R) AMPLIFIER
LEDs
AFM-20DSP Quick Start
AFM-20DSP Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/AFM-20DSP
firmware upgrades are available.
Function
Indicates system status:
• Almost 3 cycles of red/blue/off/green
LEDs flashing in sequence for about
30 seconds when system is starting
up, and the application has not been
launched yet.
Indicate port status:
• Green when an input signal is present,
and the port is defined as line in.
• White when defined as line out.
• Blue when defined as mic in.
Indicate Dante signal status:
• Green when a signal is detected.
• Red when clipping occurs.
Lights green when an analog audio signal is associated with the HDMI OUT signal.
Otherwise remains OFF.
Lights green when the HDMI IN audio signal is present. Otherwise remains OFF.
Indicate S/PDIF status:
• Green when a signal is detected.
If a signal is detected only on one channel, either left only or right only, the status
LED lights green.
Indicates amplifier signal status:
• Green when a signal is detected.
In the web page, Ch1 and CH2 are referred to as AMP 1 and AMP 2, respectively.
AFM-20DSP
for the first time.
to download the latest user manual and check if
1 Set of rack ears
4 Rubber feet
• Flashing green when application is
initializing.
• Green when system is ready for operation.
• Red when in clipping state.
• Orange when in limiting state.
• Off when there is no signal on the input.
• Orange when in Limiting state.
• Off when no signal is detected.
• Off when no signal is detected.
• Off when no signal is detected.
P/N: 2 9 0 0 - 3 0 1 2 0 4 QS
1 Quick start guide
Rev: 1
Advertisement
Related Manuals for Kramer AFM-20DSP
Summary of Contents for Kramer AFM-20DSP
- Page 1 1 Quick start guide 1 Power cord 4 Rubber feet Step 2: Get to know your AFM-20DSP The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Feature Function...
- Page 2 POWER Illuminated Power Turn the device on and off. Switch Step 3: Mount AFM-20DSP • Ensure that the environment (e.g., maximum ambient temperature & To rack mount the machine, attach both rack ears air flow) is compatible for the device.
- Page 3 Step 4: Connect the inputs and outputs Always switch OFF the power on each device before connecting it to your AFM-20DSP. For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/AFM-20DSP. Using third-party cables may cause damage!
- Page 4 Using the embedded web pages To route an input to an output / outputs: In the DSP Matrix page, click the lower area of cross-point buttons to connect an audio input (analog, Dante, HDMI audio signal, S/PDIF or a signal generator) to one or several outputs (analog, Dante, HDMI or S/PDIF). The button lights green. Click the dB area on a cross-point button to set the output volume.
