Kramer ASPEN-1616UX Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
ASPEN-1616UX 16x16 12G-SDI Router
1 Power adapter and cord

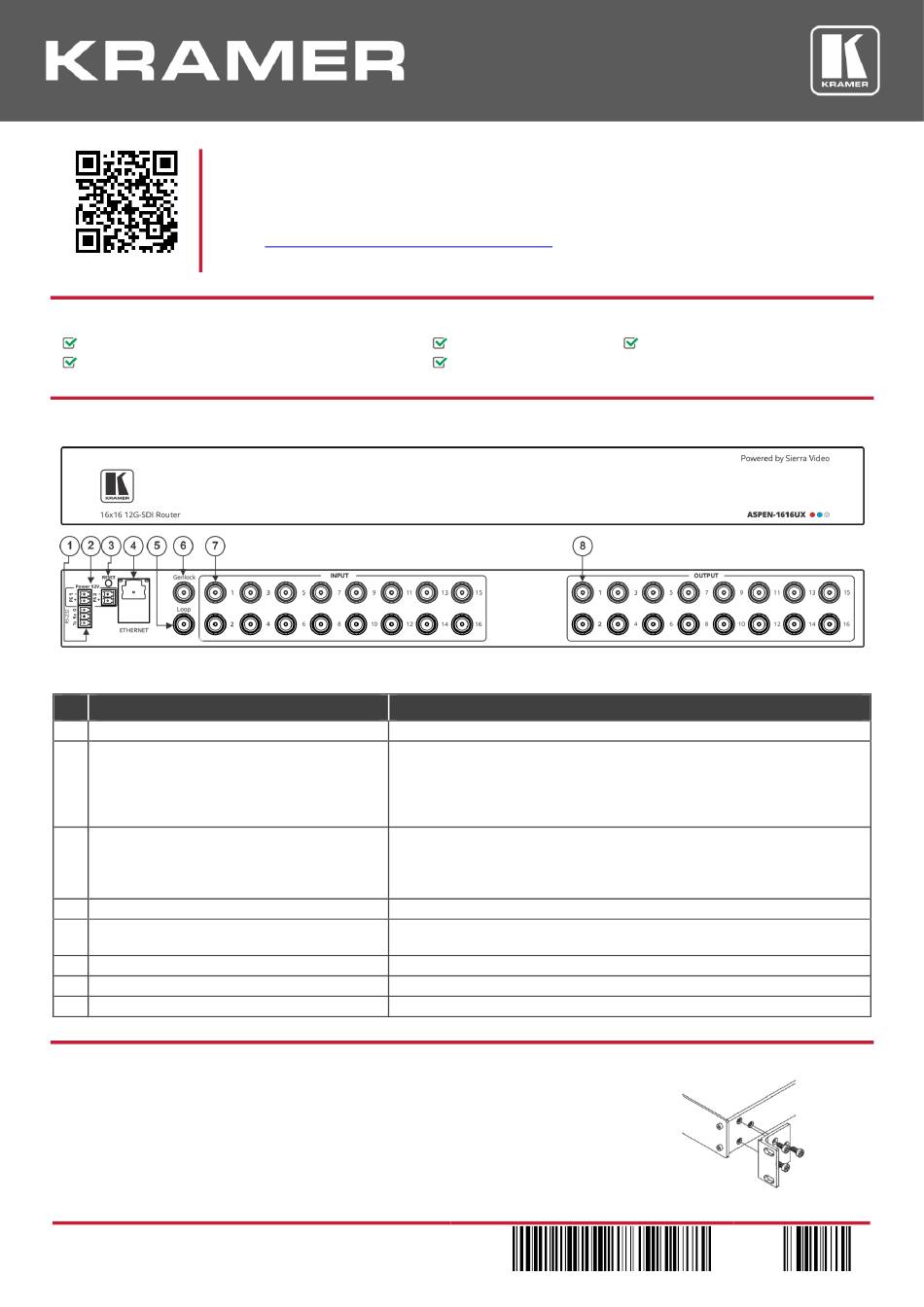

Step 2: Get to know your ASPEN-1616UX
# Feature
1 RS-232 (G,Rx,Tx) Terminal Block Connector
2 POWER 12V DC Terminal Block Connector
3 RESET Button
4 ETHERNET RJ-45 Connector
5 LOOP BNC Connector
6 GENLOCK BNC Connector
7 INPUT BNC Connectors (1 to 16)
8 OUTPUT BNC Connectors (1 to 16)
Step 3: Install ASPEN-1616UX
Install ASPEN-1616UX using one of the following methods:
Remove the three screws from each side of the unit, reinsert those screws through the rack ears
and mount on a 19" rack.
Attach the rubber feet and place the unit on a flat surface.
ASPEN-1616UX Quick Start
ASPEN-1616UX Quick Start Guide
This guide helps you install and use your ASPEN-1616UX for the first time.
Go to www.kramerav.com/downloads/ASPEN-1616UX
firmware upgrades are available.
Function
Connect to a PC or remote controller.
Dual power supply for redundancy:
PS 1 – primary power connector
PS 2 – redundant power connector (optional).
Connect each power adapter into a separate branch circuit employing a
separate service ground.
Press briefly to restart the system.
Press for 5 seconds to reset IP settings to factory default values.
The device powers up and loads the factory default values:
IP address: 192.168.1.39; Mask: 255.255.255.0; Gateway 192.168.1.1.
Connect to a PC via LAN and also used for firmware upgrade.
Connect to the GENLOCK connector of the next unit in the daisy chain or
terminate with 75Ω.
Connect to the GENLOCK source.
Connect to SDI sources.
Connect to SDI acceptors.
to download the latest user manual and check if
1 Set of rack ears
4 Rubber feet
P/N: 2 9 0 0 - 3 0 0 9 6 4 QS
1 Quick start guide
Rev: 2
