ADCP-61-743 • Issue 3 • September 2004
FIELD
BIT ERROR SETUP FIELDS
OVERVIEW: Bit errors can be injected by the RTAU using the Bit Error Set Up fields. These sections are display-only fields that are
only displayed when the line code setting is INTERNAL. The Status field always shows the current status if the line code is
INTERNAL, but the Error Counts and Elapsed Time fields only show a value when a measurement is being made.
Error Count
Error Rate
Error Locn
Error Counts Data
Error Counts BPV
Error Counts Frame
Error Counts CRC
Error Counts COFA
Status F Sync
Status P Sync
Status RAI
Page 22
 2004, ADC Telecommunications, Inc.

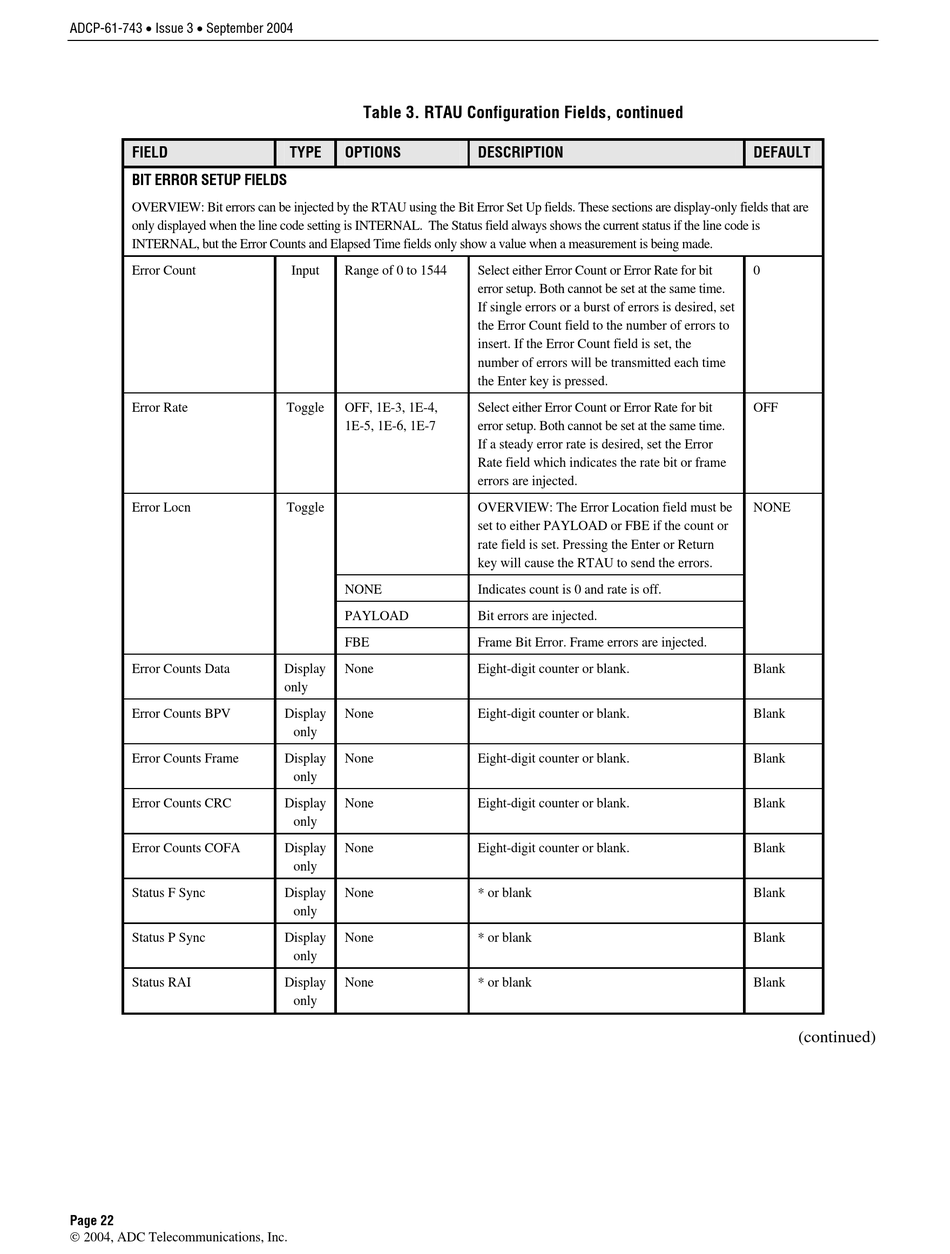

Table 3. RTAU Configuration Fields, continued
TYPE OPTIONS
Input Range of 0 to 1544
Toggle OFF, 1E-3, 1E-4,
1E-5, 1E-6, 1E-7
Toggle
NONE
PAYLOAD
FBE
Display None
only
Display None
only
Display None
only
Display None
only
Display None
only
Display None
only
Display None
only
Display None
only
DESCRIPTION
Select either Error Count or Error Rate for bit
error setup. Both cannot be set at the same time.
If single errors or a burst of errors is desired, set
the Error Count field to the number of errors to
insert. If the Error Count field is set, the
number of errors will be transmitted each time
the Enter key is pressed.
Select either Error Count or Error Rate for bit
error setup. Both cannot be set at the same time.
If a steady error rate is desired, set the Error
Rate field which indicates the rate bit or frame
errors are injected.
OVERVIEW: The Error Location field must be
set to either PAYLOAD or FBE if the count or
rate field is set. Pressing the Enter or Return
key will cause the RTAU to send the errors.
Indicates count is 0 and rate is off.
Bit errors are injected.
Frame Bit Error. Frame errors are injected.
Eight-digit counter or blank.
Eight-digit counter or blank.
Eight-digit counter or blank.
Eight-digit counter or blank.
Eight-digit counter or blank.
* or blank
* or blank
* or blank
DEFAULT
0
OFF
NONE
Blank
Blank
Blank
Blank
Blank
Blank
Blank
Blank
(continued)
