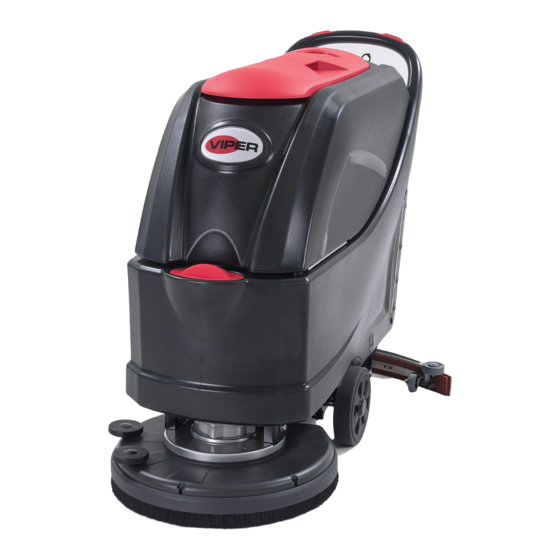

Viper AS5160 Series Use And Maintenance

Viper AS5160 Series Use And Maintenance

Hide thumbs Also See for AS5160 Series:

Advertisement

Quick Links

Use and maintenance
Operating guidelines AS5160 series
Turn on the key and verify
there is enough battery power
to complete the work. Charge
batteries if required.
Disc version: place the brush/pad holder under the scrub deck then use the pedal to lower the deck over the
brush. Press the OneTouch
TM
scrub button to enable scrubbing.
The vacuum will start. Push on one of the two switches ½ second to install the brush.
Boost version: attach a pad to the fixed pad holder, press the OneTouch
lower auto matically.
Place the machine in working mode and
press any of the two red safety switches to
activate the machine.
Press the + or – solution buttons to
increase / decrease the water flow rate
or to turn solution off.
July 2018
Install the squeegee using
the thumb nuts. Attach
squeegee hose.
TM
For wheel traction version: use the rabbit /
turtle knob to control the speed of the
machine.
BOOST version: Adjust scrub pressure when
needed.
Remove the red cover and fill
the tank. Add appropriate low
foaming detergent. Maximum
tank capacity 16 Gallons / 61
liter.
scrub button and the deck will
For wheel traction version: pressing either
of the red safety switches and the black
reverse button together will put the
machine into reverse.
Push
on the
button
On disc version, the brush/pad holder can
be removed automatically by raising the
deck with the pedal and then press the click
off button.
Check the level of water with
the red ball on the left side of
the machine.
Use the handle to lower or
raise the squeegee to the
floor. Adjust the squeegee
angle with the knob to adjust
suction performance if
needed.
