- Page 1 INSTALLATION AND MAINTENANCE INSTRUCTION MOS GB 0850-4 FIGHTER 310P FIGHTER 310P 511350 230V...
-
Page 3: Table Of Contents
Low temperature or a lack of hot water ....21 Inspection of the installation ........ 11 Low or a lack of ventilation ........21 Temperatures in FIGHTER 310P ......11 Low room temperature ........21 Pipe connections High room temperature ........21 General .............. -
Page 4: General

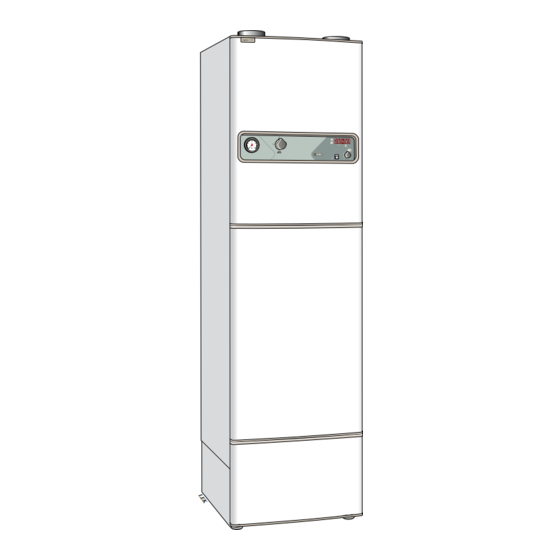

For Home Owners section in this Installation and Maintenance Instruction. FIGHTER 310P is an exhaust air heat pump. This means that it collects the energy in the ventilation air and uses it for hot water and room heating. -
Page 5: System Description
Extract air Exhaust air Frånluft Avluft FIGHTER 310P comprises an electric boiler with a copper lined water heater and a heat pump which recovers energy from the ventilation air. The recovered energy is supplied to the heat pump. The heat pump must be installed in a ventilation system intended for mechanical exhaust air. -
Page 6: Front Panel
70,5 For Home Owners 135,3 Front panel 90.5 261,5 98,6 Upper (visible) part of the front panel Pressure gauge Switch Indicator lamps Display screen Extra hot water Heating curve offset Art.nr. 611603 FIGHTER 310P... -
Page 7: Visible Functions
With the “Heating curve offset” button you can Flashing Parts of the immersion heater are change the offset of the heating curve and thus disabled by an external controller the room temperature. (load monitor, etc). Not lit Immersion heater is not operational. FIGHTER 310P... -
Page 8: Lower (Hidden) Part Of The Front Panel
98,6 For Home Owners Front panel Lower (hidden) part of the front panel Indicator Operating Channel Heating lamps mode selection curve selection Art.nr. 611603 Miniature circuit-breaker Fan speed Temperature limiter FIGHTER 310P... -
Page 9: Hidden Functions
Available readings/settings include: Boiler temperature Flow temperature Outdoor temperature Extract air temperature Normally the display always shows Channel 1. When you have browsed through the channels, channel 1 returns after a while. FIGHTER 310P... -
Page 10: Room Temperature
Art.nr. 611822 NOTE! An increase in the room temperature may be inhibited by the radiator or floor heating thermostats, if so these must be turned up. FIGHTER 310P... -
Page 11: Maintenance Routines
■ Take out the filter and shake off any dirt. Check that the filter is not damaged. New original filters can be ordered from NIBE. ■ Assembly takes place in the reverse order. The interval between cleaning operations varies and depends on the amount of dust in the exhaust air. -
Page 12: Checking The Safety Valves
2.5 bar (25 mvp). See “Commissioning and adjusting” Extract air temperature FIGHTER 310P has three safety valves, one for the heating system and two for the water heater. The safety valves must be checked regularly. Check one valve at a time as follows: ■... -
Page 13: General Points For The Installation Engineer Transport And Storage
Hard water areas the risk of leakage. Erecting the heat pump Normally it is no problem to install FIGHTER 310P in hard water areas since the maxing working tempera- The heat pump should preferably be erected with its ture is 65 °C. -
Page 14: Pipe Connections General
70 litres in the boiler section. or bends in the pipework. See following picture. The pressure vessel in the FIGHTER 310P is approved for max 9.0 bar (0.9 MPa) in the water heater and 2.5 bar (0.25 MPa) in the double shell section. -
Page 15: Tap Water Connection
Mixing valve section Valve coupling section Menge Zugängliche Pumpenkapazität (interner Heizdruckverlust abgezogen) 1600 1800 2000 LK 545/508/518 Interner Druckverlust in der Heizung (einschließlich Armatur) Vv från värmepump LK 501 LK 545/508/514 LK 5 utan Backventil Blandningsventil FIGHTER 310P SOLE... -
Page 16: Ventilation Connection Ventilation Flow
Ventilation connection Ventilation flow Duct installation FIGHTER 310P is connected so that all ventilation air To prevent fan noise being transferred to the exhaust except the kitchen fan passes the evaporator (62) in air devices, it may be a good idea to install a silencer the heat pump. -
Page 17: Electrical Connections Connection
The temperature limiters are accessible behind the top FIGHTER 310P does not include an isolator switch on front cover and are positioned to the right of the pan- the incoming electrical supply. The installation must... -
Page 18: Setting The Fan Capacity
Immersion heater compressor is operational (except in defrosting mode). operation (connec- In addition, the flow temperature is limited to maxi- tion on delivery) mum 60 °C. Pins 2 and 3 are strapped Limited immersion heater operation FIGHTER 310P... -
Page 19: Connecting The Outside Sensor
(both make or both break). The contacts must be A + B (Brown, white and black group) connected in parallel for make contact function and in series for break contact function. * Only with 13.5 kW immersion heater output FIGHTER 310P... -
Page 20: Commissioning And Adjusting Preparations
■ When the filling procedure is finished the flexible tion pump (16). See the section “Pipe connections” hose (147) shall be removed. “Pump and pressure drop diagram”. Make sure that the switch is not in an intermediate position. 49 150 FIGHTER 310P... -
Page 21: Setting The Ventilation
The heating water can be drained off through drain valve (51) using an R15 (1/2") hose coupling. Remove the cover (80) from the valve. Now screw on the hose coupling and open valve (51). Open safety valve (52) to let air into the system. FIGHTER 310P... -
Page 22: Setting The Automatic Heating Control System
For the Installer Setting the automatic heating control system Heating curve offset -2 Setting using diagrams FIGHTER 310P is equipped with outdoor temperature HEATING CURVE HEATING CURVE VÄRMEKURVA controlled automatic controls. This means the flow °C °C temperature is regulated in relation to the current out-... -
Page 23: Dealing With Malfunctions
Should abnormal noise come from the fan, this may need cleaning. Contact your installer. If the operating disturbance cannot be rectified by means of the above an installation engineer should be called. If necessary set the switch to “ ” (manual shunt operation necessary). FIGHTER 310P... -
Page 24: Indications On The Display
■ Low pressure pressostat: Ventilation flow too low spondence with NIBE. or not enough refrigerant. _ _ _ _ _ _ _ _ _ _ _ _ _ _ When the cause of the fault has been put right, the fault code must be cleared from the display by switch- ing the heat pump off and on again. -
Page 25: Resetting The Miniature Circuit Breakers
It is usually easier to start the circulation pump with FIGHTER 310P running, switch (8) set to “1”. If help- ing the circulation pump to start is performed with FIGHTER 310P running, be prepared for the screw- driver to jerk when the pump starts. -
Page 26: Service
Shows – – when the room sensor is not con- requirements for flammable gas, for example, product nected. knowledge as well as service instruction on gas sys- 17– 21 No function tems with flammable gases. FIGHTER 310P... -
Page 27: Electrical Circuit Diagram
0 kW Vit 6,0 kW Brun white brown Läge R Elektrisk matning Power supply for load för effektvakt (tillbehör) monitor (accessories) N N 3 169 T Contactor marking Kontaktormärkning For all contactors Gäller samtliga kontaktorer – 230 V 12 V FIGHTER 310P... -
Page 28: Component Locations
For the Installer Component locations 31 32 55 56 103 51 Fram- Radiator v.v. k.v. Radiator Åter- ledning ledning system outlet system inlet radiatorer radiatorer FIGHTER 310P... -
Page 29: List Of Components
59 Strain relief, supply cable 29 Relay card with power supply unit 60 Fan module 30 Indicator lamp, “Compressor” 61 Docking connection, requires special pipe from NIBE 31 Indicator lamp, “Defrosting” 62 Evaporator 32 Indicator lamp, “Immersion heater” 63 Air filter (Filter type G2) -
Page 30: Dimensions
Kupferrohr Klemmring A, B and C: See "Connection" in "List of components". Pipes must not be run from the floor in the area indicated by dots. FIGHTER 310P... -
Page 31: Technical Specifications
1,35 kW Total Power input 0,535 kW Current 2,7 A Rating condition Exhaust air: Air flow 150 m Inlet dry bulb temperature 20 °C Inlet wet bulb temperature 12 °C Water: Inlet temperature 40 °C Outlet temperature 45 °C FIGHTER 310P... -
Page 32: Accessories
Top cabinet 245 mm. Part no 089 424 Top cabinet 345 mm. Part no 089 426 Top cabinet 385 — 535 mm. Part no 089 428 Heightening console Height: 125 mm Part no 089 195 FIGHTER 310P... - Page 33 FIGHTER 310P...
- Page 34 FIGHTER 310P...
- Page 36 Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 Flurlingen Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: info@nibe.ch www.nibe.ch Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad Jizerou Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: nibe@nibe.cz www.nibe.cz...
