Description

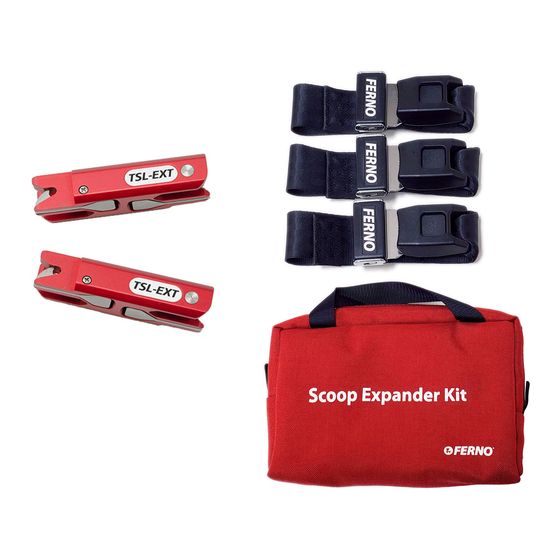

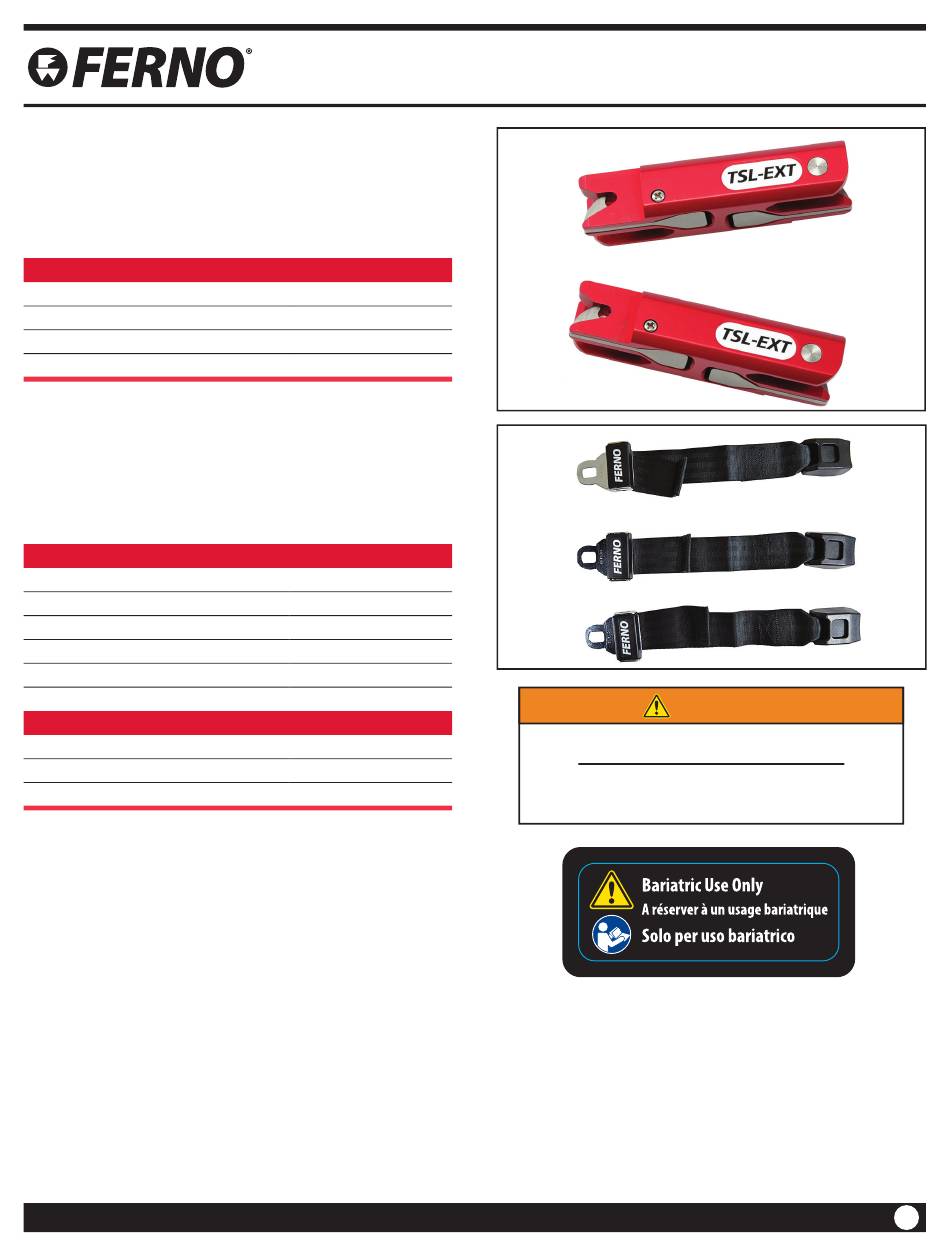

This kit includes a pair of Twin Safety Lock (TSL) extenders for use with a
Ferno® Scoop EXL® stretcher and a set of 3 restraint extenders.
Parts Supplied
Part
TSL Extenders
Storage Pouch
16" Restraint Extenders
Users' Manual
Description
The Twin Safety Lock Extender is designed to widen the spread of a
Ferno Scoop EXL when transporting bariatric patients. The extender
is comprised of two identical units and is designed for use with one
extender at each end of the stretcher.
Specifi cations TSL Extender
Length
Width
Height
Weight
Material
Color
Specifi cations Restraint Extender
Length
Buckle
Restraint Material
Safety and Instruction Labels
Safety and instruction labels place important information from the
users' manual on the extender. Read and follow label instructions.
Replace worn or damaged labels immediately.
© Ferno-Washington, Inc. / April 2016 / 234-3635-00
Qty.
2 ea.
1 ea.
3 ea.
1 ea.
5 in / 130 mm
1 in /28 mm
1.5 in / 37 mm
8.6 oz. / 244 gm
Aluminum, Steel
Red annodized / Silver
16 in.
Metal
Nylon
Scoop EXL® TSL Extender
WARNING
Improper use can cause injury. Use the extenders only
with a bariatric patient.
Improper use and installation of the extenders can cause
injury. Use and install extenders only as described in this
manual.
Kit 083-2274
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ferno Scoop EXL TSL
Summary of Contents for Ferno Scoop EXL TSL
- Page 1 Scoop EXL® TSL Extender Kit 083-2274 Description This kit includes a pair of Twin Safety Lock (TSL) extenders for use with a Ferno® Scoop EXL® stretcher and a set of 3 restraint extenders. Parts Supplied Part Qty. TSL Extenders 2 ea.
- Page 2 Press with your thumbs on the silver lock levers on the extender and stretcher (Figure 3). Pull the two pieces apart to remove the extender from the stretcher. Repeat steps 1-2 at the other end of the stretcher. © Ferno-Washington, Inc. / April 2016 / 234-3635-00...
- Page 3 Stretcher in standard confi guration Use the stretcher as described in the user’s manual. For additional ●○ stretcher manuals, contact Ferno. See “Ferno Customer Relations” on page 4. ●○ Remove and store the extenders when not in use. Do not leave extenders attached to the stretcher.
- Page 4 For assistance or information, please contact your Ferno distributor. Add a disinfectant cleaner to warm water, following the ○ ○ If you do not have a Ferno distributor, please contact Ferno Customer disinfectant manufacturer’s instructions. Relations: Ferno-Washington, Inc., 70 Weil Way ○...
