Calibration - MICRO-EPSILON scanCONTROL 30 Series Operating Instructions Manual

Operation of the Sensor with a PC
6.4.2
The calibration of the sensor is performed using the complete sensor matrix and is independent from the
selected measuring field.
The trapeze form of the measuring field is produced from the projection onto the sensor matrix. The standard
measuring range is framed in the center.
A calibration final inspection is enclosed for each sensor. Three diagrams for the linearity measurement which
are briefly explained in the report are included in the calibration final inspection. The key diagram in the cali-
bration final inspection is shown again below, see

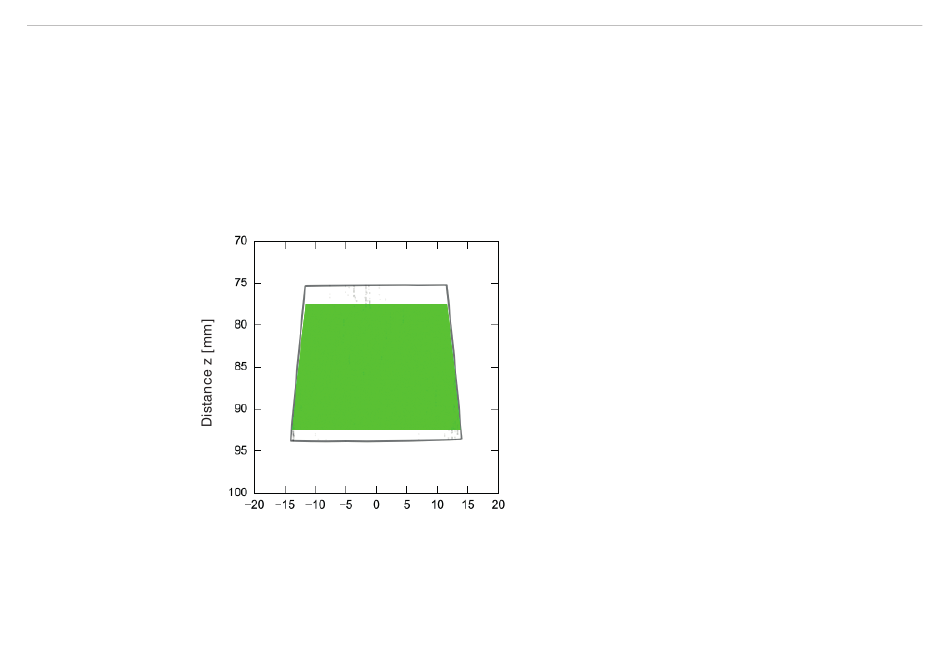

Fig. 17 Linearity deviation, example of an scanCONTROL 30xx-25
The black points show the places where the measurement error exceeds the linearity limit of 0.01 mm (de-
pending on sensor model). The measurement error increases at both ends of the depth range and particu-
larly in the remote corners. These areas should therefore be avoided for the measurement.
scanCONTROL 30xx

Calibration

Points with deviation > 0.01 mm
Position x [mm]
Fig. 17.
