MIGATRONIC welding equipment has a good reputation - and we know how important it is to live up to the
standards we have set ourselves.
The welding machine you have purchased is the result of years of MIGATRONIC's experience in the field of
welding machine manufacture. This experience, combined with correct operation and maintenance of your
machine, provides a guarantee of excellent performance in the years ahead.
Thank you for buying a MIGATRONIC machine.
INSTRUCTION MANUAL
COMMANDER
Version G
EC DECLARATION OF CONFORMITY
MIGATRONIC A/S
Aggersundvej 33
9690 Fjerritslev
Denmark
hereby declare that our machine as stated below
Type:
COMMANDER
as of:
week 48 1995, step 4
conforms to directives 73/23/EEC and 89/336/EEC.
European Standards:
EN60974-1
EN50199
Issued in Fjerritslev on 27th November 1995.
Peter Roed
Managing director
INTRODUCTION
50173110
Valid from 0024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Commander and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Migatronic Commander

Summary of Contents for Migatronic Commander

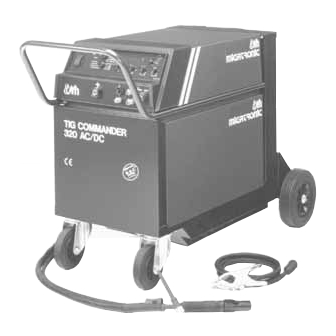

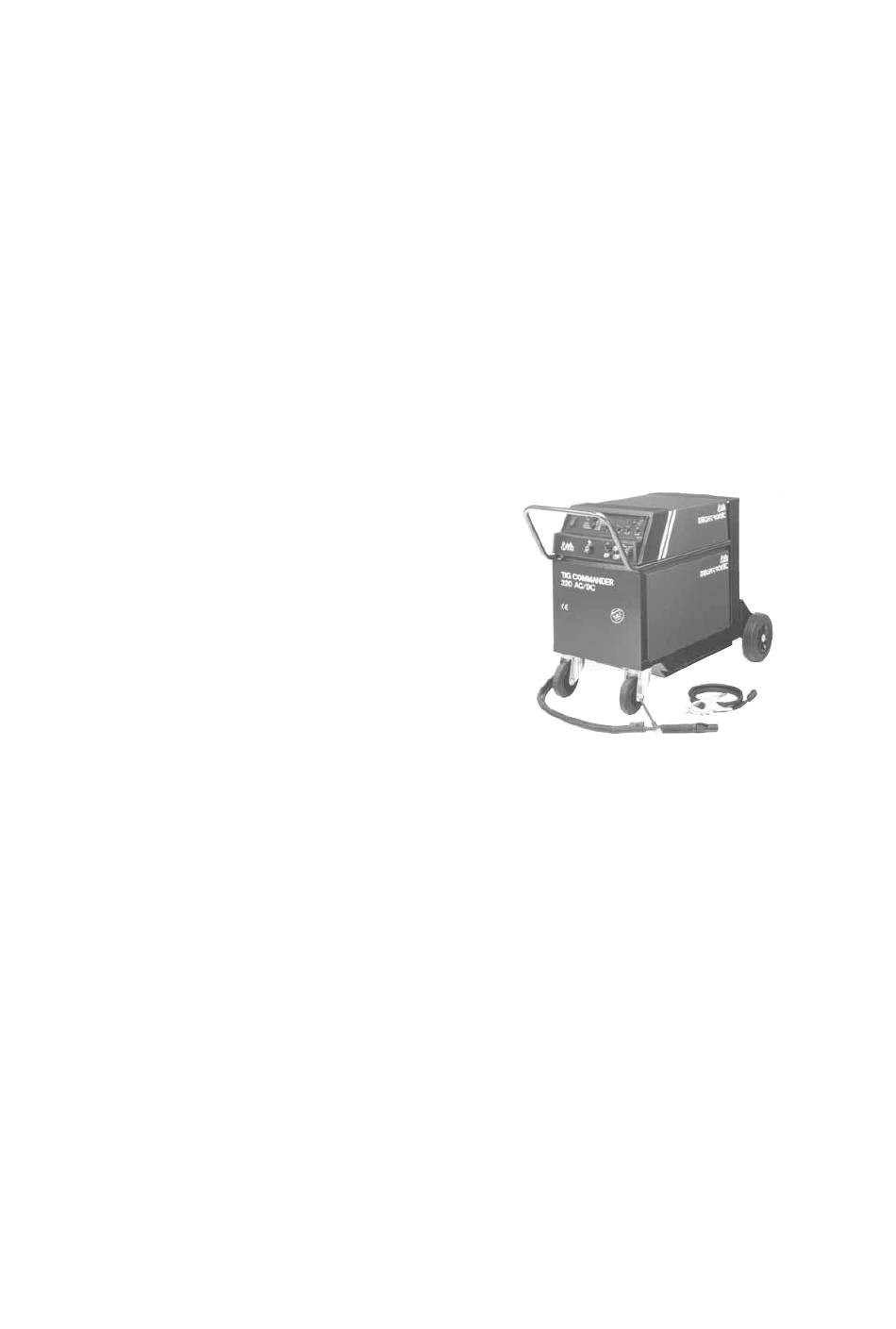

  • Page 1 INTRODUCTION MIGATRONIC welding equipment has a good reputation - and we know how important it is to live up to the standards we have set ourselves. The welding machine you have purchased is the result of years of MIGATRONIC's experience in the field of welding machine manufacture.

  • Page 3: Table Of Contents

    CONTENTS Warning / Electromagnetic emissions ....4 General description ..........5 Initial operation............. 5 Instructions BOX 1 ..............6 BOX 2, (TIG) ............13 BOX 3, (MMA)............ 16 Secondary errors during TIG welding............19 Fixed functions ........... 19 Technical data............ 20 Fault identification ..........

  • Page 4: Warning / Electromagnetic Emissions

    WARNING Arc welding and cutting can be dangerous to the user, people working nearby, and the surroundings if the equipment is handled or used incorrectly. Therefore, the equipment must only be used under the strict observance of all relevant safety instructions. In particular, your attention is drawn to the following: Electricity - The welding equipment must be installed according to safety regulations and by a properly trained and qualified person.

  • Page 5: General Description

    MIGATRONIC's standard range of accessories. permissible load. The TIG COMMANDER machine is also designed for Connection of welding cables TIG welding and features functions such as: Connect the welding cables to the front of the machine.

  • Page 6: Box 1

    Use of the machine INITIAL INSTRUCTIONS During welding a heating of various components of BOX 1 the machine takes place and during breaks these components will cool down again. When using current settings above a set value, the machines need General instructions for use periods when they can cool down.
  • Page 7 FUNCTION SELECTION AND PARAMETER SETTING This chapter describes the operation of the machine Welding voltage in detail and includes references to the three different The welding voltage indicator is illuminated for control panels illustrated at the end of the chapter. reasons of safety and in order to show if there is voltage on the electrode or the TIG torch.
  • Page 8 Current setting to be by means of the current control (>0.3 seconds), or to go to standby automatically by knob located in the handle of a MIGATRONIC dialog a brief activation (<0.3 seconds). torch, if a dialog torch is used.
  • Page 9 Reduced current When four-times welding a reduced current is activated by pressing the trigger briefly. This The parameters that can be adjusted are illustrated in reduced current is set to a percentage value of the the figure below: welding current and is variable between 0-100% of the welding current.
  • Page 10 Pulse time E.g. if the welding current is set to 40 A and Arc The pulse time reflects the time the machine is power to 100% the additional current is 40 A equals 80 A when doing Arc power. If the Arc power is set to welding with the pulse current.
  • Page 11 Note 4: If the pulse function is used during AC-welding the AC-welding AC frequency can be reduced in proportion to the pulse times as the pulse frequency must be 5 This panel is divided into two sections, with the times higher than the AC frequency. If the AC function current type at the top, and the setting of frequency is to low the indicators for pulse times conditions for special AC-functions at the bottom.
  • Page 12 100% 150% However, this balance is based on the current intensity of the positive period proportional to the current intensity of the negative period. A reduction of the positive refinement current may have the effect that dwell time of the tungsten electrode improves. TIG-DC It is also possible to weld in DC TIG with unalloyed tungsten electrodes (green marking).

  • Page 13: Box 2, Tig

    INITIAL INSTRUCTIONS BOX 2, TIG General Main switch 4d. Cooling Error This control switches the machine on and off. Occurs if there is insufficient flow in the hose or if the water module lacks water. Welding cable plug + (MMA + TIG) Mains error Cause: Excessive or insufficient mains...
  • Page 14 TRONIC FDF footswitch, part no. 78815009 is in when the electrode is applied to the workpiece. use. When using the MIGATRONIC FDF footswitch, This increased initial current is reduced ex- part No. 78815010, the selector switch on the ponentially in relation to the welding current set electronic box must be set to EXT (external within approx.
  • Page 15 16. AC-safety A green LED indicates that the AC safety circuit is activated. The AC safety circuit ensures that there is no AC voltage on the torch when the machine is on no-load voltage. 17. Preheating of TIG-electrodes Before the AC cycle is initiated, the following adjustment should be made to set the positive ignition period.

  • Page 16: Box 3, Mma

    INITIAL INSTRUCTIONS BOX 3, MMA General Main switch Symptoms: The welding process stops. This This control switches the machine on and off. error is indicated by the yellow light emitting diode and the words Welding cable plug "Overheating error". This LED switches off after 7 - 10 min.
  • Page 17 Hot-start MMA-function Hot-start is a function which can be used to help establish the arc when starting to weld. This can be achieved by increasing the initial current by a certain percentage in relation to the set value, when the electrode is applied to the workpiece. This increased initial current is reduced exponentially in relation to the set welding current within approx.
  • Page 18 INITIAL OPERATION TIG COMMANDER DC & AC/DC 19. Multiple plug, 8-pole For connection of remote control. 20. Multiple plug, 6-pole For connection of footswitch control. 21. Gas hose 22. Mains cable...

  • Page 19: Secondary Errors During Tig Welding

    INITIAL OPERATION Secondary errors during TIG welding Fixed functions Safety disconnection Antifreeze Cause: During 4-times trigger operation, welders MMA function During electrode welding, electrodes sometimes stick sometimes start a welding sequence and then put the torch down by accident. In to the workpiece.

  • Page 20: Technical Data

    TECHNICAL DATA Power source: TIG 240 AC/DC TIG 320 DC TIG 320 AC/DC TIG 400 DC Mains voltage / Fuse 3x400 V / 16 A 3x400 V / 25 A 3x400 V / 25 A 3x400 V / 25 A Mains voltage / Fuse 3x230 V / 50 A 3x230 V / 50 A...
  • Page 21 TECHNICAL DATA Power source: TIG 400 AC/DC TIG 500 DC TIG 500 AC/DC Mains voltage / Fuse 3x400 V / 25 A 3x400 V / 35 A 3x400 V / 35 A Mains voltage / Fuse (changeable) 3x400 V / 25 A 3x440 V / 20 A 3x500 V / 20 A Consumption max.

  • Page 22: Fault Identification

    Welding is interrupted due to overheating if the machine is used beyond the specifications mentioned The COMMANDER welding machines require in chapter "Technical Data". The machine must virtually no maintenance. However, exposure to ex-...
  • Page 23 Sverige: MIGATRONIC SVETSMASKINER AB France: Bundesrepublik Deutschland: Kärragaten 10, S-431 24 Mölndal MIGATRONIC EQUIPEMENT DE SOUDURE S.A.R.L. MIGATRONIC SCHWEISSMASCHINEN GmbH Tel. (+46) 31 44 00 45 Parc d’Activités U.I.S., 2, rue d’Yvours, F-69540 Irigny Sandusweg 12, D-35435 Wettenberg Telefax: (+46) 31 44 00 48 Tél: (+33) 478 50 6511...
