Migatronic MIG 385 MK III Instruction Manual
Hide thumbs
Also See for MIG 385 MK III:
- Instruction manual (70 pages) ,
- Instruction manual (94 pages)
Subscribe to Our Youtube Channel
Related Manuals for Migatronic MIG 385 MK III
Summary of Contents for Migatronic MIG 385 MK III

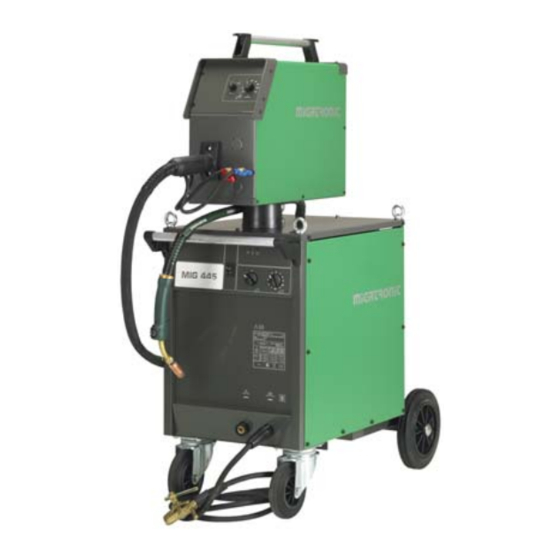

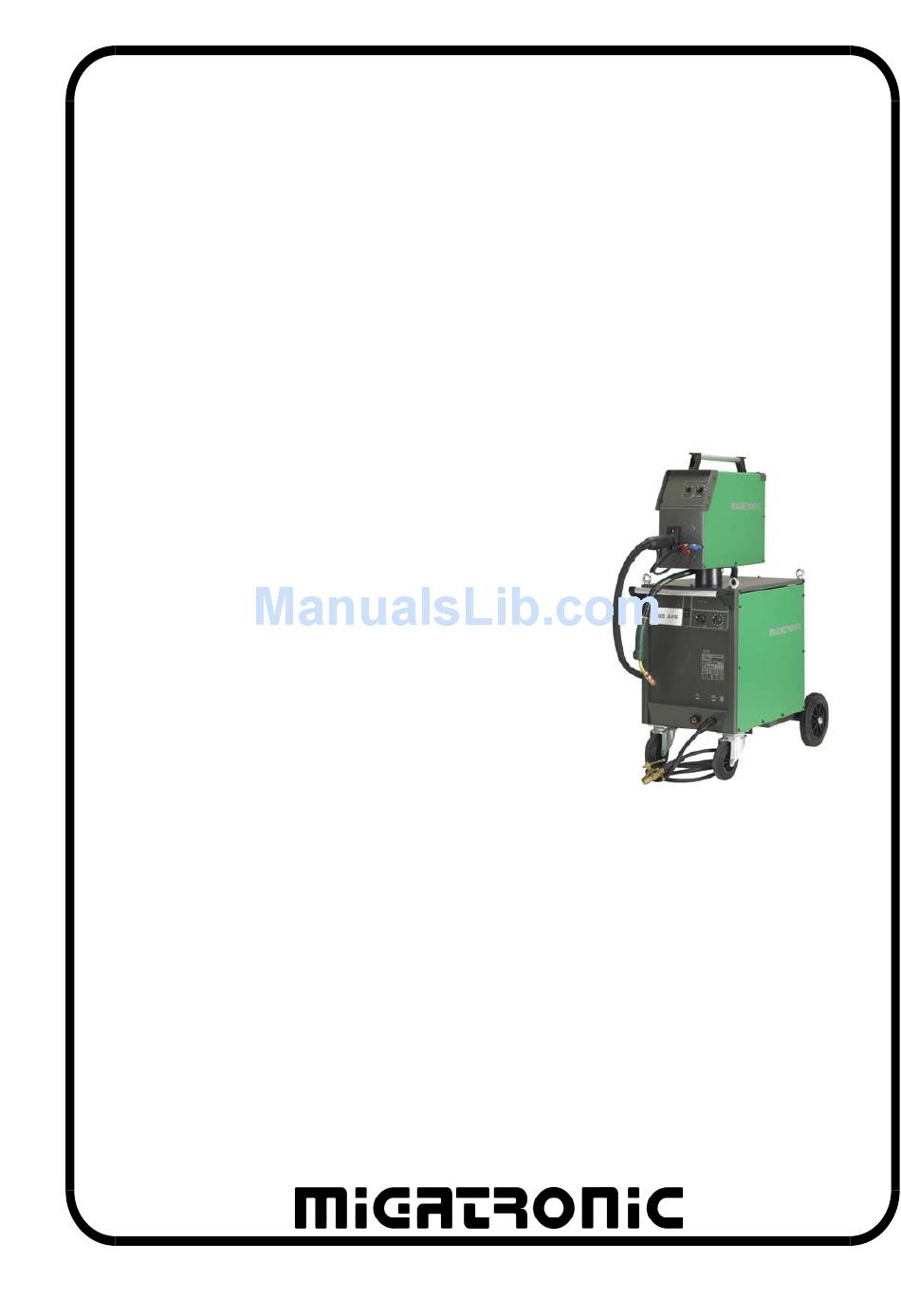

- Page 1 MIG 385/445/545 MK III Brugsanvisning Instruction manual Betriebsanleitung Manuel d'instruction Gebruikershandleiding Manuale d'istruzione Bruksanvisning Käyttöohje Manual de instrucciones Kezelési útmutató Valid from 2011 week 20 50115308 L...
- Page 2 EC DECLARATION OF CONFORMITY MIGATRONIC A/S Aggersundvej 33 9690 Fjerritslev Denmark hereby declare that our machine as stated below Type: As of week 49 2000 conforms to directives 2006/95/EC and 2004/108/EC European Standards: EN/IEC60974-1 EN/IEC60974-2 EN/IEC60974-5 EN/IEC60974-10 (Class A) Issued in Fjerritslev on 4th December 2000.
- Page 3 ENGLISH WARNING Arc welding and cutting can be dangerous to the user, people working nearby, and the surroundings if the equipment is handled or used incorrectly. Therefore, the equipment must only be used under the strict observance of all relevant safety instructions. In particular, your attention is drawn to the following: Electricity - The welding equipment must be installed according to safety regulations and by a properly trained and qualified person.
-
Page 4: Description Of Functions
MWF 11 and MWF 21 wire Dispose of the product according to local feed unit. standards and regulations. These wire feed units can be equipped with different www.migatronic.com/goto/weee control kits if required (please see the MWF instruc- tion manual). Configuration Power source... - Page 5 CONTROL SWITCHES Assembly of the welding torch (C-model) The welding torch is fitted to the central adaptor (pos. S-MODEL 2 page 14), and the connection is fastened by hand. If the machine has a water module the two water hoses are fitted to the quick release connectors for water.
- Page 6 CONTROL SWITCHES C-MODEL 9. Inching button (positioned above the wire motor) This button is used for fitting of the welding wire. When the button is activated the wire is fed at the speed på ca. 4 m/min. 10. Burn-back (positioned above the wire motor) Adjustable delay between the wire feed unit stops and the welding voltage is turned off in order to prevent sticking of the wire.
-
Page 7: Maintenance
Waterlevel should be checked regularly. To ensure 1. Any damaged wire should be cut off, pulled out reliable operation, always use Migatronic cooling and replaced. The pressure on the wire feed liquid of type propan-2-ol in the ratio 23% propan-2-... -
Page 8: Technical Data
TECHNICAL DATA TECHNICAL DATA MIG MK III We reserve the right to changes Type MIG 385C MIG 445C MIG 385S MIG 445S MIG 545S Unit Fuse 230 V Fuse 400 V Efficiency 0.77 0.71 0.77 0.71 0.74 Cos phi 0.99 0.99 0.99 0.99...
