Bio Optica Milano S.p.A.  via San Faustino 58  I-20134 Milano
Tel. +39 02.21.27.13.1  Fax Acquisti/Export +39 02.21.54.155
Fax Assistenza/Contabilità +39 02.26.41.74.48  Fax Vendite +39 02.21.53.000

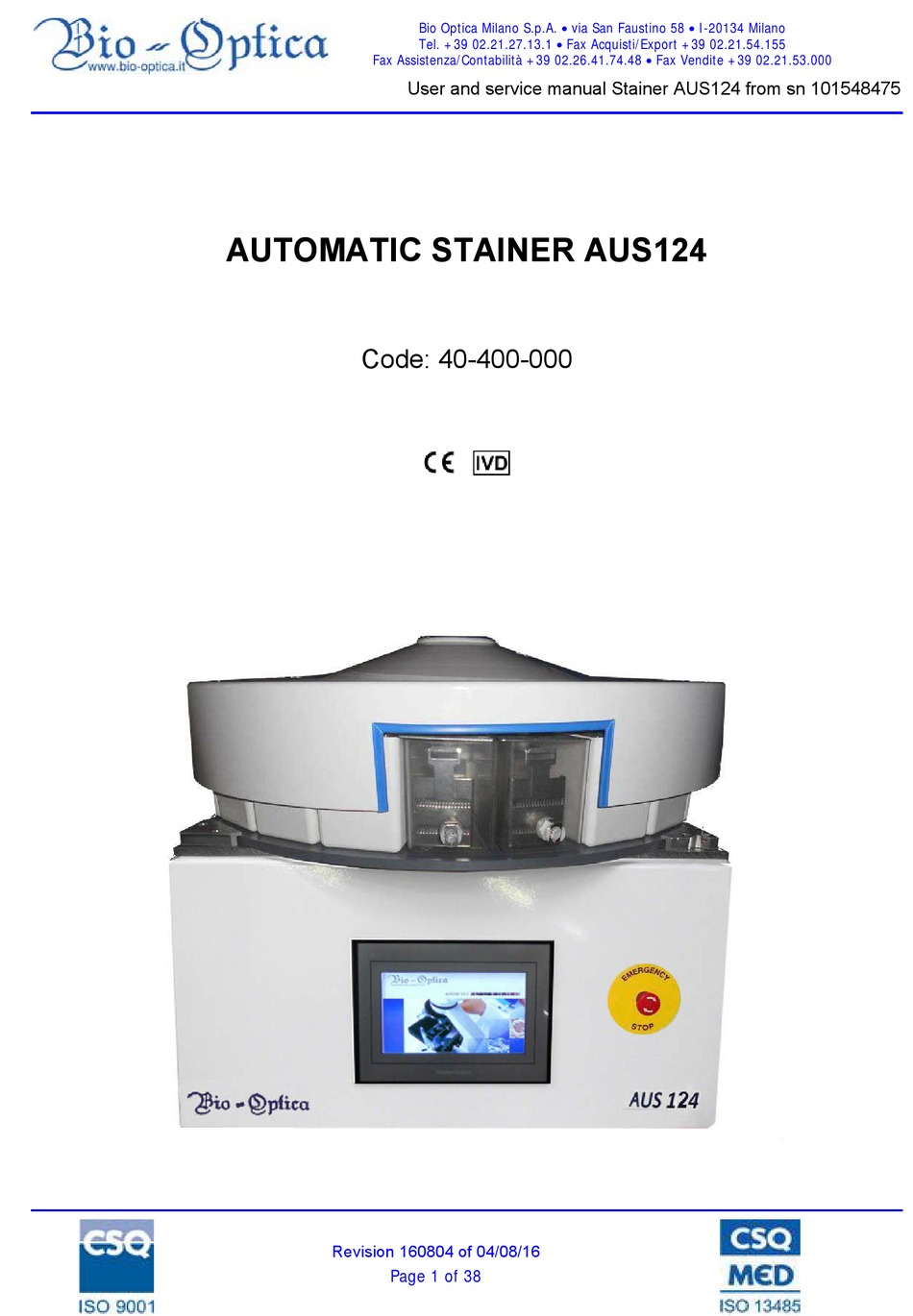

User and service manual Stainer AUS124 from sn 101548475
AUTOMATIC STAINER AUS124
Code: 40-400-000
Revision 160804 of 04/08/16
Page 1 of 38
