5.

Hardware configuration

5.1. LOGUART PIN SEL

EFUSE NOT PG
EFUSE PG
5.2. SWD & LOGUART
Table 3 Ameba-Z LOGUART EFUSE
EFUSE
EFUSE 0x19[6]=0
EFUSE 0x19[6]=0
EFUSE 0x19[6]=1

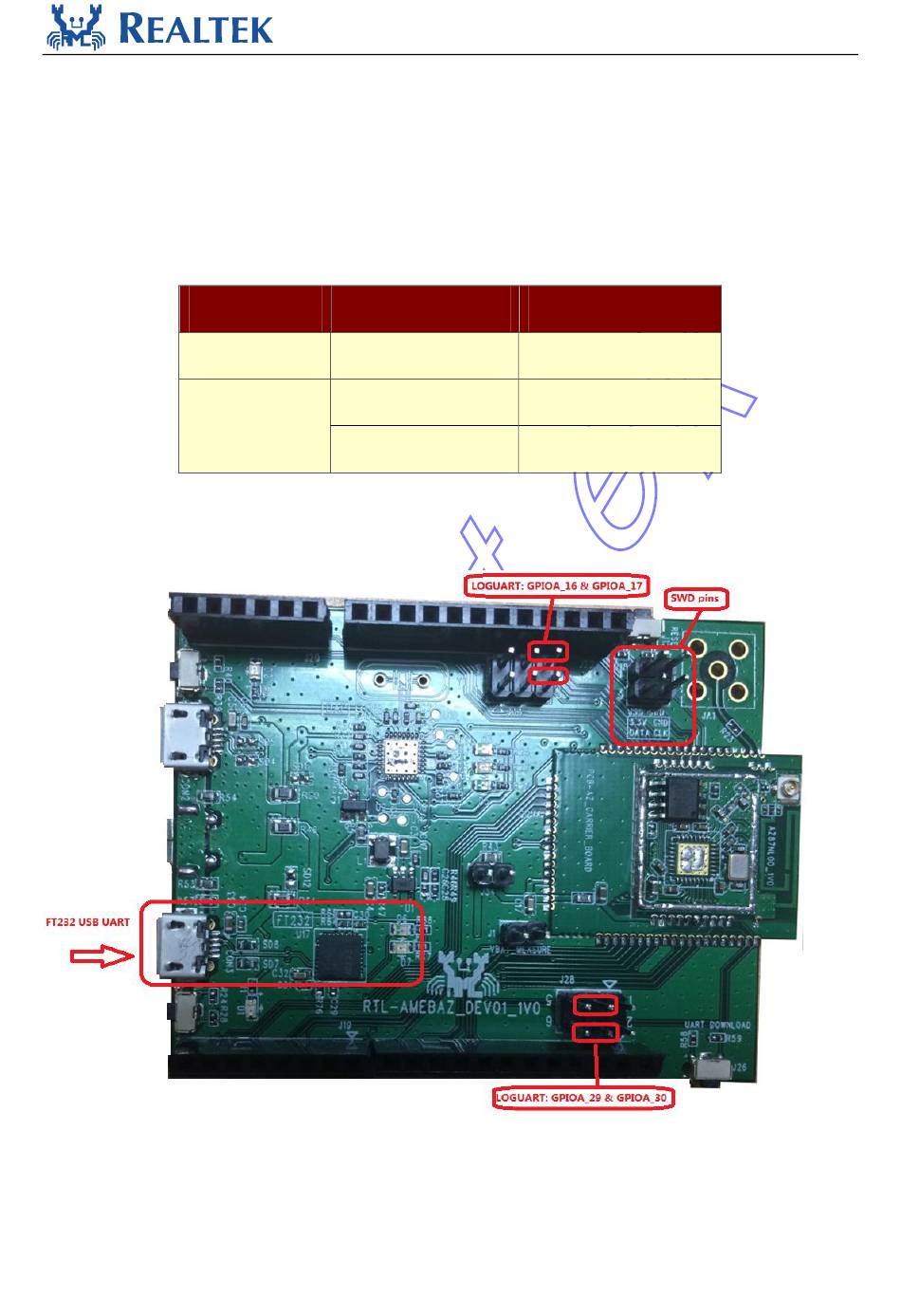

Figure 2 Ameba-Z SWD & LOGUART
Ameba-Z DEV01 1V0
LOGUART PIN
GPIOA_29 & GPIOA_30
GPIOA_29 & GPIOA_30
GPIOA_16 & GPIOA_17
11/19
