USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Chauvet ROGUE R1X WASH

Summary of Contents for Chauvet ROGUE R1X WASH

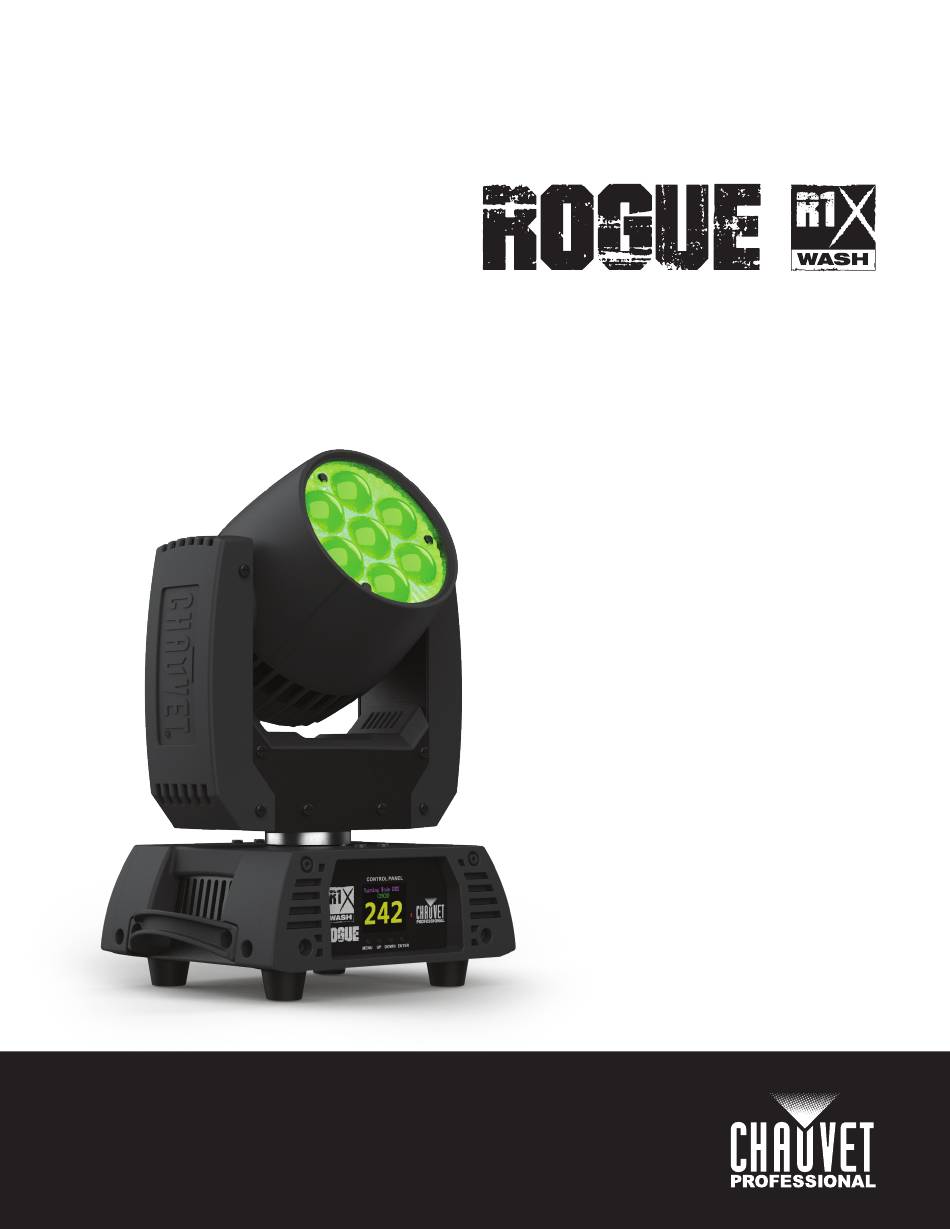

  • Page 1 USER MANUAL...
  • Page 2 Edition Notes The Rogue R1X Wash User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Rogue R1X Wash as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and Rogue R1X Wash are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Orientation ....................Rigging..................... Procedure ....................4. Operation ..................Control Panel Description..............Control Options..................Programming ..................Menu Map.................... Configuration (DMX)................Control Personalities................Starting Address ..................Control Channel Assignments and Values .......... 21CH......................19CH......................15CH......................14CH......................Rogue R1X Wash User Manual Rev. 1...
  • Page 4 Color Calibration ..................Reset Function..................Factory Reset ..................Test Mode.................... Auto Test ....................Manual Test ..................... System Information................Offset Mode (Zero Adjust) ..............5. Maintenance................Product Maintenance................6. Technical Specifications ............Returns.................... Contact Us ..................Rogue R1X Wash User Manual Rev. 1...

  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

  • Page 6: Safety Notes

    • In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Expected LED Lifespan Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than single LEDs, contributing to shorter lifespans if always used at full intensity.

  • Page 7: Introduction

    2. Introduction Description The Rogue R1X Wash features seven RGBW 25 W quad-LEDs, with a unique “bubble” lens design for high-quality color rendering and visual effects. The Rogue R1X Wash also features an 11° to 48° zoom angle, fast and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors.

  • Page 8: Product Dimensions

    9.06 in 152 mm 230 mm 6.34 in 162 mm 7.81 in 198.5 mm 13.94 in 354 mm 3.82 in 97 mm 10.43 in 7.36 in 265 mm 187 mm Page 4 of 26 Rogue R1X Wash User Manual Rev. 1...

  • Page 9: Setup

    3. Setup AC Power The Rogue R1X Wash has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 10: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Rogue R1X Wash comes with a bracket to which you can attach a mounting clamp directly. Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product.

  • Page 11: Operation

    <ENTER> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the Rogue R1X Wash starting address in the 001–512 DMX range. This enables control of up to 24 products in the 21-channel 21CH personality.
  • Page 12 Shows number of hours Fixture Time _ _ _ _ _ product has been powered on UID: _ _ _ _ _ _ _ _ _ Shows product UID Page 8 of 26 Rogue R1X Wash User Manual Rev. 1...

  • Page 13: Configuration (Dmx)

    210  224 Slow on, slow off (fast to slow) 225  229 On 230  244 Pulse strobe, fast to slow 245  255 On 000  255 0–100% Fine Red 000  255 Fine control (16-bit) Rogue R1X Wash User Manual Rev. 1 Page 9 of 26...
  • Page 14 208  229 Reverse color scroll, fast to slow 230  234 No function 235  249 Color snap, fast to slow 250  255 No function Zoom 000  255 0–100% Page 10 of 26 Rogue R1X Wash User Manual Rev. 1...
  • Page 15 155  159 Inverse square dimmer curve 160  164 S-curve dimmer curve 165  169 White mode on 170  174 White mode off 175  255 No function Rogue R1X Wash User Manual Rev. 1 Page 11 of 26...

  • Page 16: 19Ch

    000  255 Fine control (16-bit) Blue 000  255 0–100% Fine Blue 000  255 Fine control (16-bit) White 000  255 0–100% Fine White 000  255 Fine control (16-bit) Page 12 of 26 Rogue R1X Wash User Manual Rev. 1...
  • Page 17 208  229 Reverse color scroll, fast to slow 230  234 No function 235  249 Color snap, fast to slow 250  255 No function Zoom 000  255 0–100% Rogue R1X Wash User Manual Rev. 1 Page 13 of 26...
  • Page 18 155  159 Inverse square dimmer curve 160  164 S-curve dimmer curve 165  169 White mode on 170  174 White mode off 175  255 No function Page 14 of 26 Rogue R1X Wash User Manual Rev. 1...

  • Page 19: 15Ch

    230  244 Pulse strobe, fast to slow 245  255 On 000  255 0–100% Green 000  255 0–100% Blue 000  255 0–100% White 000  255 0–100% Rogue R1X Wash User Manual Rev. 1 Page 15 of 26...
  • Page 20 208  229 Reverse color scroll, fast to slow 230  234 No function 235  249 Color snap, fast to slow 250  255 No function Zoom 000  255 0–100% Page 16 of 26 Rogue R1X Wash User Manual Rev. 1...
  • Page 21 155  159 Inverse square dimmer curve 160  164 S-curve dimmer curve 165  169 White mode on 170  174 White mode off 175  255 No function Rogue R1X Wash User Manual Rev. 1 Page 17 of 26...

  • Page 22: 14Ch

    230  244 Pulse strobe, fast to slow 245  255 On 000  255 0–100% Green 000  255 0–100% Blue 000  255 0–100% White 000  255 0–100% Page 18 of 26 Rogue R1X Wash User Manual Rev. 1...
  • Page 23 208  229 Reverse color scroll, fast to slow 230  234 No function 235  249 Color snap, fast to slow 250  255 No function Zoom 000  255 0–100% Rogue R1X Wash User Manual Rev. 1 Page 19 of 26...

  • Page 24: Configuration (Settings)

    To set the maximum angle of the tilt: 1. Go to the Setup main level. 2. Select the Tilt Angle option. 3. Select from 230 (230°), 180 (180°), or 90 (90°). Page 20 of 26 Rogue R1X Wash User Manual Rev. 1...

  • Page 25: Fan Mode

    Rogue Wash product(s). This ensures an equal output and color balance from each product. 4. Repeat steps 2 and 3 until the output of the Rogue R1X Wash is identical to the output of the legacy Rogue Wash product(s).

  • Page 26: Color Calibration

    2. Select the Factory Set option. Test Mode Auto Test To have the Rogue R1X Wash automatically test all functions one after the other: 1. Go to the Run Mode main level. 2. Select the Auto Test option. Manual Test To manually test an individual function of the Rogue R1X Wash: 1.

  • Page 27: Maintenance

    7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans with compressed air. Damage may result. Rogue R1X Wash User Manual Rev. 1 Page 23 of 26...

  • Page 28: Technical Specifications

    3 and 5-pin XLR 14, 15, 19 or 21 Ordering Product Name Item Name Item Code UPC Number Rogue R1X Wash ROGUER1XWASH 08011591 781462219390 UL 1573 CSA C22.2 No. 166 E113093 Page 24 of 26 Rogue R1X Wash User Manual Rev. 1...

  • Page 29: Returns

    Returns Returns Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return.

  • Page 30: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Page 26 of 26 Rogue R1X Wash User Manual Rev. 1...
