Summary of Contents for Chauvet Funfetti

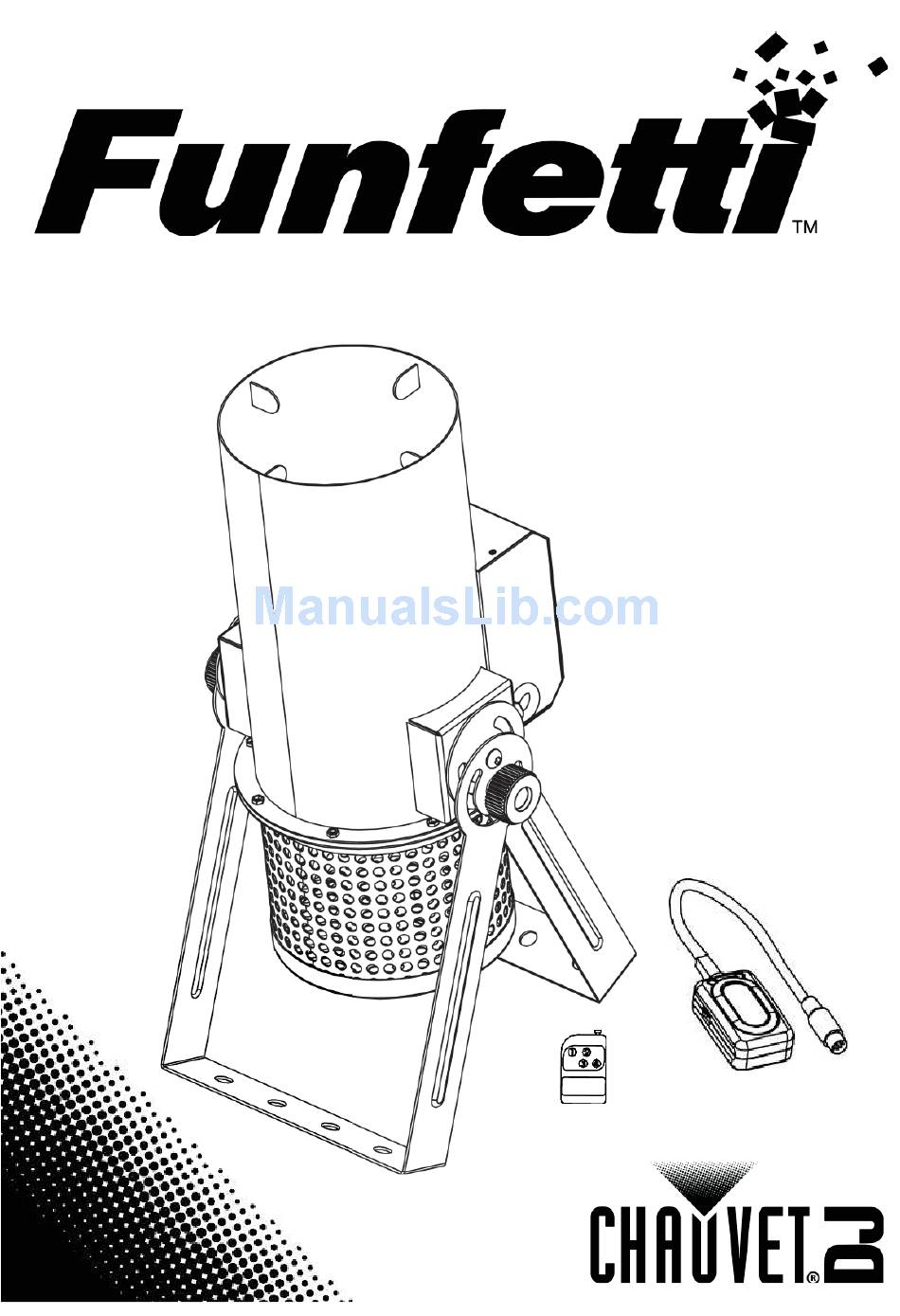

- Page 1 Quick Reference Guide...
-
Page 2: About This Guide
Funfetti™ QRG About This Guide The Funfetti™ Quick Reference Guide (QRG) contains information about the product’s connection, mounting, and operation. Disclaimer The information and specifications contained in this QRG are subject to change without notice. Safety Notes These Safety Notes include important safety information about installation, usage, and maintenance. -
Page 3: What Is Included
• • To Begin Carefully unpack the Funfetti™ and check that all the parts are in the package, and are in good condition. If the box, or any of the contents, appear damaged from shipping, or show signs of mishandling, save all packaging and file a claim with the carrier immediately. - Page 4 Funfetti™ QRG Main Tube LED Display Wireless Menu Buttons Remote Port Power In DMX In/Out Safety Loop x2 Overview Tilt Adjustment Knob Mounting Bracket Fuse holder...
- Page 5 Chauvet) Overhead Mounting Floor Mounting When mounting overhead, be sure to point Funfetti™ at an upward angle to keep the confetti from pouring out prior to launching. AC Power This product has a voltage-specific power supply that can work with an input voltage of 120 VAC, 60 Hz or 230 VAC, 50 Hz.
-
Page 6: Operation
The fan will blast confetti up to 30 ft (9 m) and run for 25 seconds. • FC-W Wireless To trigger the Funfetti™ using the FC-W wireless remote control, plug in the Remote Control product and do the following: 1. Plug the wireless receiver into the Wireless Remote port on the side of the Funfetti™. -
Page 7: Dmx Assignments
Funfetti™ QRG DMX Linking The Funfetti™ works with a DMX controller. Information about configuring Funfetti™ for DMX operation is in the User Manual, which is available from Chauvet website http://www.chauvetlighting.com/product-manuals- literature/. Information about DMX is in the DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads. -
Page 8: Technical Specifications Dimensions
Funfetti™ QRG Technical Specifications Dimensions Length Width Height Weight and Weight 11.2 in (284 mm) 9 in (228 mm) 21.8 in (553 mm) 13.6 lb (6.2 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Standard Confetti (FRC)
