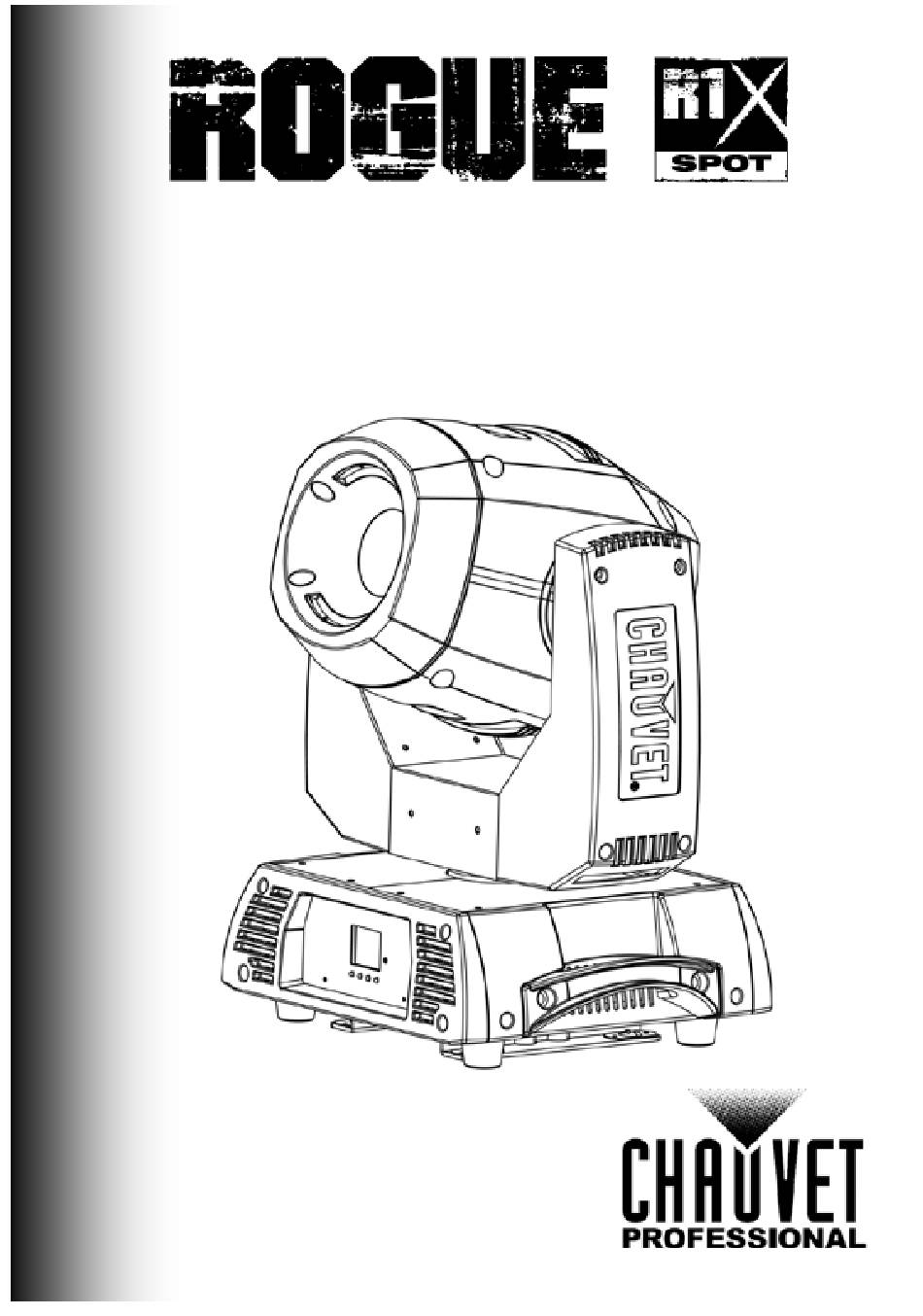

  • Page 1 Quick Reference Guide English Español Français Nederlands NL...

  • Page 2: Safety Notes

    Rogue R1X Spot QRG About This Guide T he Rogue R1X Spot Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details. Disclaimer T he information and specifications contained in this QRG are subject to change without notice.

  • Page 3: Power Linking

    Power Linking You can link up to 6 Rogue R1X Spot products at 120 V, 12 products at 208 V, or 13 products at 230 V. Never exceed this number. Power linking cords can be purchased separately.
  • Page 4 Safety Notes. Use at least two mounting Mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/products/. Mounting Clamp Omega Bracket Product...
  • Page 5 Rogue R1X Spot QRG Menu Map Main Lev el Programming Lev els Description Sets the DMX starting address Address 001–512 16CH Selects the DMX mode 19CH Runs the product’s test sequence Auto Test Pan Fine Tilt Tilt Fine P/T Speed...
  • Page 6 Rogue R1X Spot QRG Menu Map (Cont.) Main Lev el Programming Lev els Description Reverse pan operation Pan Rev erse Normal pan operation Reverse tilt operation Tilt Rev erse Normal tilt operation Rotates control screen view 180° Screen Rev erse Normal control screen view Selects the 540°...
  • Page 7 Rogue R1X Spot QRG factory settings Displays the software version Ver: Displays the current running mode Running Mode: Displays the current DMX address Dmx Address: Sys Info Displays the product’s temperature in Temperature: Celsius Shows products UID UID:...

  • Page 8: Dmx Values

    Rogue R1X Spot QRG DMX Values 19CH Channel Function Value Percent/Setting 000ó255 0–100% 000ó255 0–100% Fine Pan 000ó255 0–100% Tilt 000ó255 0–100% Fine Tilt 000ó255 0–100% Pan/Tilt Speed 000ó255 0–100% Dimmer 000ó255 0–100% Fine Dimmer 000ó003 Closed 004ó007 Open 008ó076...
  • Page 9 Rogue R1X Spot QRG DMX Values (Cont.) 19CH Channel Function Value Percent/Setting (Cont.) 000ó007 Open 008ó015 Gobo 1 016ó023 Gobo 2 024ó031 Gobo 3 032ó039 Gobo 4 040ó047 Gobo 5 Gobo Wheel 1 048ó055 Gobo 6 056ó063 Gobo 7 064ó119 Gobo shake 1–7, slow to fast...
  • Page 10 Rogue R1X Spot QRG DMX Values (Cont.) 19CH Channel Function Value Percent/Setting (Cont.) 000ó007 No function 008ó015 Effect 1 016ó023 Effect 2 024ó031 Effect 3 032ó039 Effect 4 040ó047 Effect 5 048ó055 Effect 6 056ó063 Effect 7 064ó071 Effect 8 072ó079...
  • Page 11 Rogue R1X Spot QRG DMX Values (Cont.) 19CH Channel Function Value Percent/Setting (Cont.) Mov ement Macro 000ó255 0–100% Speed 000ó007 No function 008ó015 Blackout during pan/tilt (3 sec hold) 016ó023 Blackout while color wheel moving (3 sec hold) 024ó031 Blackout while gobo wheels moving (3 sec hold) 032ó039...
  • Page 12 Rogue R1X Spot QRG DMX Values (Cont.) 16CH Channel Function Value Percent/Setting 000ó255 0–100% 000ó255 0–100% Fine Pan 000ó255 0–100% Tilt 000ó255 0–100% Fine Tilt 000ó255 0–100% Pan/Tilt Speed 000ó255 0–100% Dimmer 000ó003 Closed 004ó007 Open 008ó076 Slow to fast Shutter 077ó145...
  • Page 13 Rogue R1X Spot QRG DMX Values (Cont.) 16CH Channel Function Value Percent/Setting (Cont.) 000ó006 Open 007ó013 014ó020 Orange 021ó027 Green 028ó034 Yellow 035ó041 Blue Color Wheel 042ó048 CTO 3200 K 049ó055 Magenta 056ó063 Purple 064ó127 Split colors 128ó191 Clockwise color scroll, slow to fast 192ó255...
  • Page 14 Rogue R1X Spot QRG DMX Values (Cont.) 16CH Channel Function Value Percent/Setting (Cont.) 000ó255 0–100% Focus 000ó004 No function Prism 005ó255 Prism insert 000ó127 Prism index 128ó189 Counter-clockwise rotation, fast to slow Prism Rotate 190ó193 Stop 194ó255 Clockwise rotation, slow to fast 000ó063...

  • Page 15: Multi-Language

    Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your dealer. Follow their instructions to request support or to return a product. Visit our w ebsite for contact details. Rogue R1X Spot QRG, Rev. 1 ML4│ © Copyright 2017 Chauvet │All rights reserv ed. Printed in P. R. C.
