Push Buttons

The PSoC 62S3 Wi-Fi BT Prototyping Board has a reset button and 1 user button. The reset button
(SW1) is connected to the XRES pin of the PSoC 6 MCU and is used to reset the device. One user
button (SW2) is connected to pin P0[4] of the PSoC 6 MCU. In addition, the Mode selection button
SW3 is connected to the PSoC 5LP device for programming mode selection (Refer to the
User Guide for details). All the buttons connect to ground on activation (active low).
The CY8CMOD-062S3-4343W provides pull-up for the XRES line of PSoC 6 MCU.

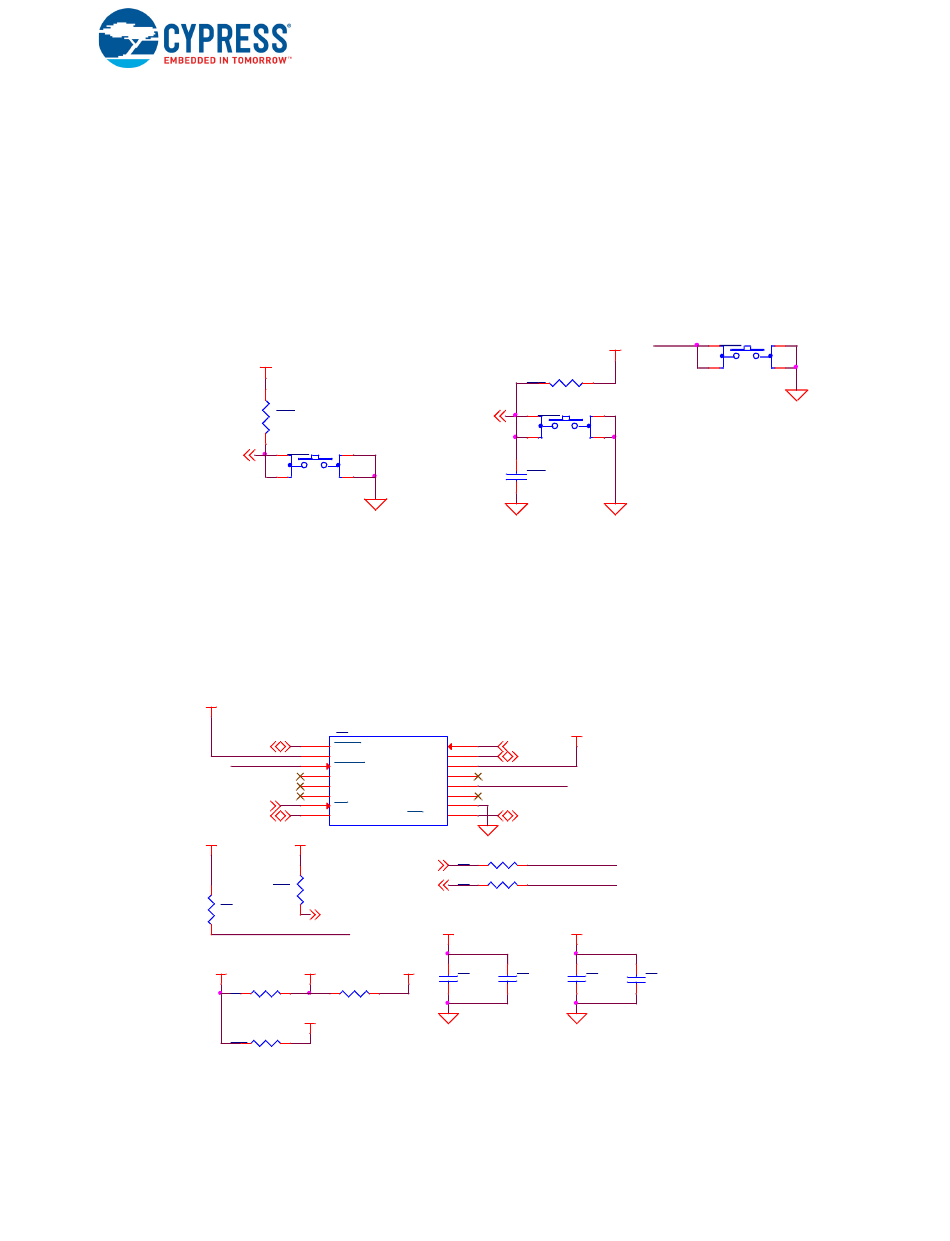

Figure 3-11. Schematics of Push Buttons
User Button /
Hibernate Wakeup
VBACKUP
1
USER_BTN_1
2
3.2.9

Cypress Quad SPI NOR Flash

The PSoC 62S3 Wi-Fi BT Prototyping Board has a Cypress NOR flash memory (S25FL512SAGM-
FIR10) of 512 Mbit capacity. The NOR Flash is connected to the Quad SPI interface of the
PSoC 6 MCU. The NOR device can be used for both data and code memory with execute-in-place
(XIP) support and encryption.
Figure 3-12. Schematics of QSPI Flash
VCC_FLASH
Quad SPI Flash Memory Section
QSPI_IO3
FLASH_RST_L
FLASH_SS_L
QSPI_IO1
VCC_IO_FLASH
R65
10K
R8
10K
No Load
VTARG
R34
No Load
R39
3.3

Bill of Materials

Refer to the BOM files in the
CY8CPROTO-062S3-4343W PSoC 62S3 Wi-Fi BT Prototyping Kit Guide, Doc. # 002-28070 Rev. *A
