1.3

Board Details

The PSoC 62S3 Wi-Fi BT Prototyping Kit that has the following features:
CY8CMOD-062S3-4343W that contains
■
PSoC 6 MCU with SDHC
❐
Murata Type 1DX ultra-small 2.4-GHz WLAN and Bluetooth module based on CYW4343W
❐
512-Mbit external Quad SPI NOR Flash that provides a fast, expandable memory for data and
■
code
KitProg3 onboard SWD programmer/debugger, USB-UART and USB-I2C bridge functionality
■
CapSense touch-sensing slider (5 elements) and two buttons, based on self-capacitance (CSD)
■
A Micro-B connector for PSoC 6 MCU USB device interface
■
1.8 V and 3.3 V operation of PSoC 6 MCU is supported
■
One user LED, one user button, and a reset button for PSoC 6 MCU
■
One Mode selection button and one Status LED for KitProg3
■
Refer to Figure 2-4

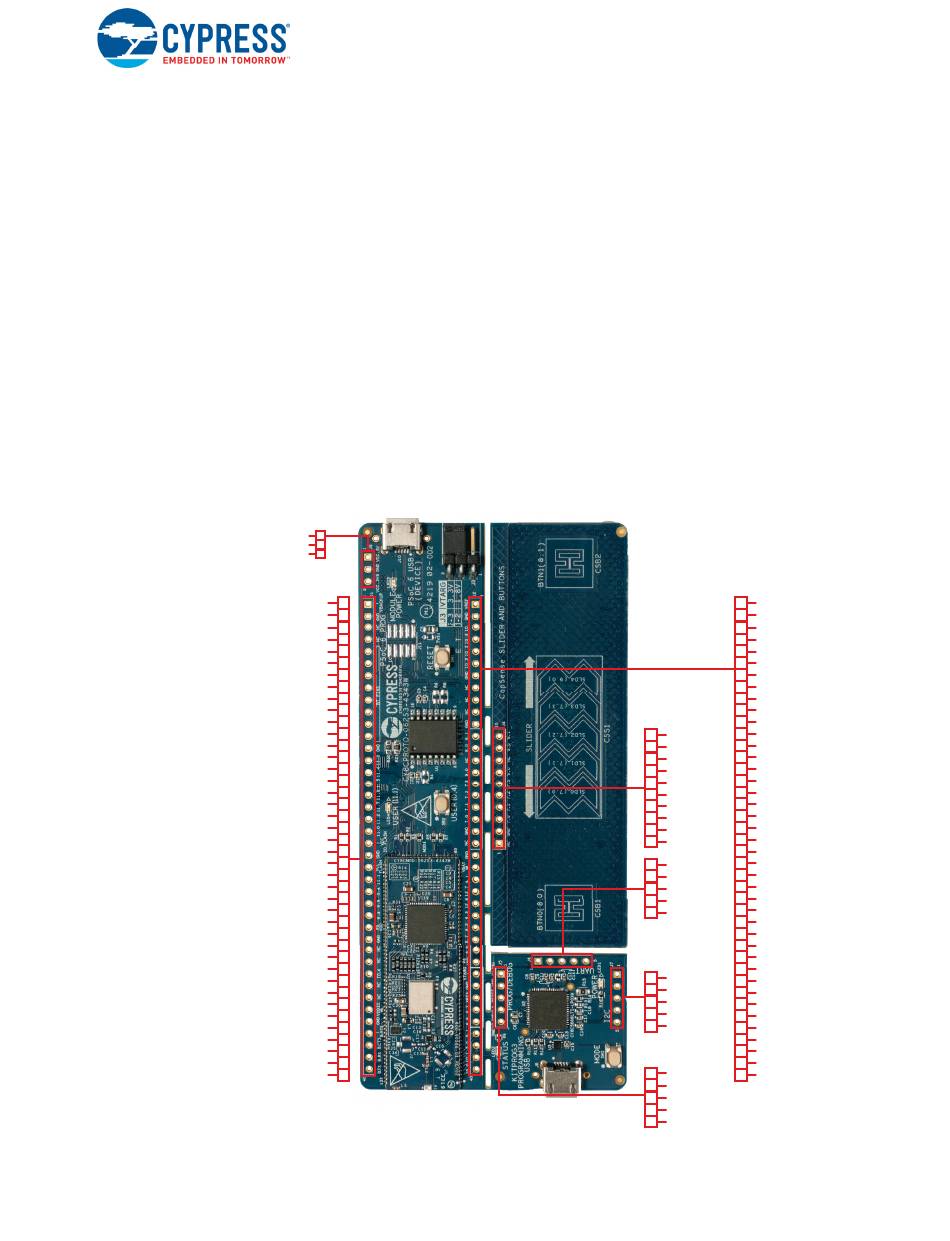

Figure 1-2 shows the pinout of the PSoC 62S3 Wi-Fi BT Kit.
Figure 1-2. Prototyping Kit Pinout
CY8CPROTO-062S3-4343W PSoC 62S3 Wi-Fi BT Prototyping Kit Guide, Doc. # 002-28070 Rev. *A
for more details of the kit features.
J9
VCC_5V
GND
VCC_3V6
J1
VBACKUP
GND
NC
NC
BT_I2S_DI
BT_I2S_DO
BT_I2S_WS
BT_I2S_CLK
BT_GPIO_5
BT_GPIO_4
BT_GPIO_3
NC
GND
P11_3
P11_4
P11_5
P11_6
P11_7
P11_2
P11_0
VCC_IO_FLASH
GND
VCC_FLASH
P11_1
P0_4
P6_5
P6_4
P6_VDD
GND
NC
NC
WL_IO_1
NC
NC
VDDIO_WL
GND
B_RTS
B_CTS
B_RX
B_TX
Introduction
J2
VREF
GND
P10_5
P10_4
P10_3
P10_2
GND
NC
NC
NC
J4
GND
P8_1
P8_1
P8_0
P8_0
NC
NC
P9_0
P9_0
P7_3
P7_3
P7_2
P7_2
P7_1
P7_1
P7_0
P7_0
GND
GND
NC
NC
GND
J6
VBAT_WL
GND
P9_1
RTS
P12_7
CTS
P12_6
RX
P6_3
TX
P6_2
P5_7
P5_6
P6_VDD
J7
VTRAG
KP_VBUS
GND
GND
XRES
VTARG
P6_7
I2C_SCL
P6_6
I2C_SDA
P5_1
P5_0
P10_1
J5
P10_0
VTRAG
GND
RESET
SWDCLK
SWDIO
